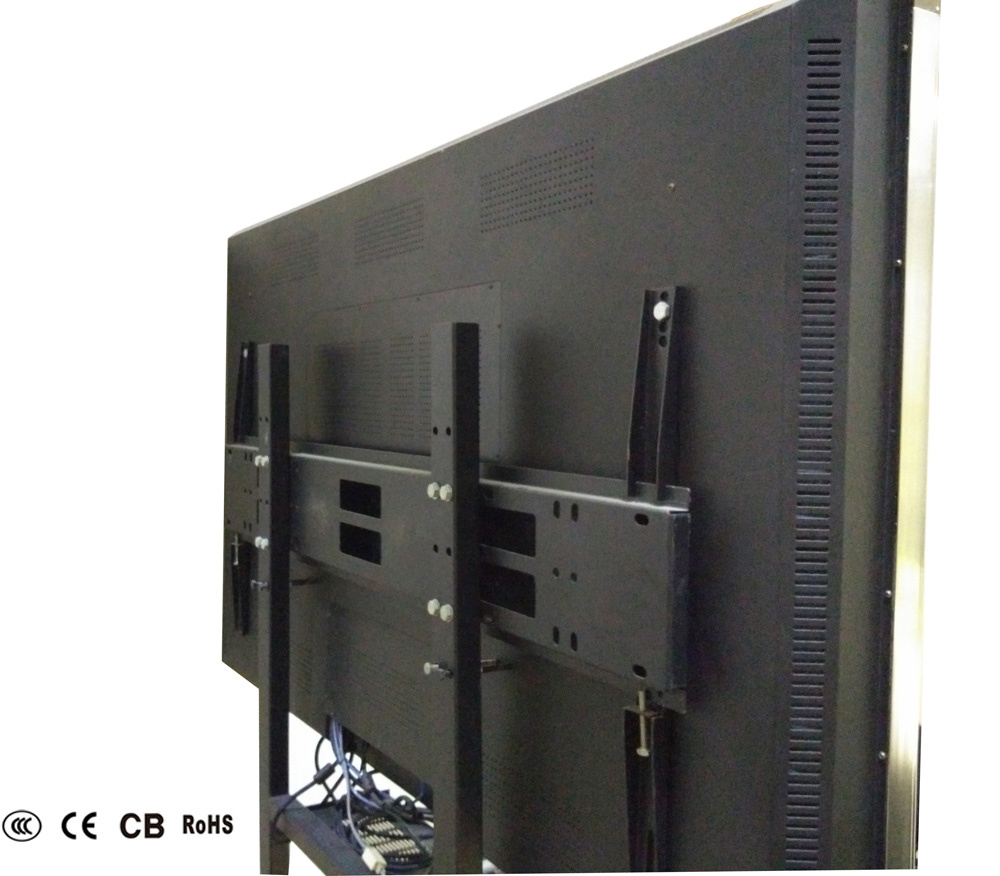

65inches Touch Screen Kiosk for School at Competitive Price
| Price: |
US $ 2500/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HL-T6500L |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Delivery Time: |
15 Woring Days After Receipt of The Deposits |
| Screen Diagonal: |
65inches |
| Original: |
Xian China |
| Screen Size: |
>60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description
65inches touch screen kiosk for School at competitive price
Product Features:
A new generation of multi-touch technology, with high cost, wide size applications, high transmittance, low power consumption and other advantages;
2, high strength tempered glass, effective anti-scratch, 1kg ball 1m height of fall, the specimen is not broken;
3, sensitivity accuracy class, 7ms ~ 15ms response speed, linearity error of less than 5mm;
4, anti-interference ability ambient light, glare does not affect the use;
5, the factory default without calibration, no drift. Zero-pressure touch with your finger or other touch-sensitive media can be opaque;
6, embedded industrial motherboard, ultra-one computing power;
7, high durability to withstand more than 60 million times in a single touch.
Parameters:| Screen | Screen size | 42''LCD | 55"LED | 65"LCD | 70"LCD |
| Display area | 930.25*523.25 | 1209.6*680.4 | 1428.48*803.52 | 1549.44*871.56 |
| Resolution | 1920×1080 | 1920*1080 | 1920x1080 | 1920x1080 |
| Brightness (typ) | 700 cd/m2 | 450 cd/m2 | 600 cd/m2 | 600 cd/m2 |
| Contrast (static typ | 1000:1 | 1300:1 | 5000:1 | 1500:1 |
| Lamp Life | 50000hs | 50000hs | 50000hs | 50000hs |
| Image | Digital Noise Reduction | Yes | Yes | Yes | Yes |
| 3D decoding | Yes | Yes | Yes | Yes |
| Color optimization technology | Yes | Yes | Yes | Yes |
| Color temperature | Cool / Warm / Normal | Cool / Warm / Normal | Cool / Warm / Normal | Cool / Warm / Normal |
| Widescreen capabilities | 4: 3/16: 9 / zoom / complete | 4: 3/16: 9 / zoom / complete | 4: 3/16: 9 / zoom / complete | 4: 3/16: 9 / zoom / complete |
| Speaker | no | 10W×2 | 10W×2 | 10W×2 |
| Audio frequency | Surround Sound | no | no | no | no |
| Audio output interface | no | L+R | L+R | L+R |
| Video Interface | CATV input | PAL( D/K BG I) | PAL( D/K BG I) | PAL( D/K BG I) | PAL( D/K BG I) |
| AV input | 1 group | 2 group | 1 group | 1 group |
| AV output | 1 group | no | 1 group | 1 group |
| S-Video input | 1 group | no | 1 group | 1 group |
| (YPbPr) input | 2 group | 2 group | 2 group | 2 group |
| HDMI input | 2 group | 3 group | 2 group | 2 group |
| Computer VGA | 1 group | 1 group | 1 group | 1 group |
| Operate | Multimedia features | USB (MP3/4 JPG RMVB ) | USB (MP3/4 JPG RMVB ) | USB (MP3/4 JPG RMVB ) | USB (MP3/4 JPG RMVB ) |
| PIP function | no | no | no | no |
| Anti-burning screen technology | no | no | no | no |
| Sleep Timer | Yes | Yes | Yes | Yes |
| OSD Language | Simplified Chinese / English | Simplified Chinese / English | Simplified Chinese / English | Simplified Chinese / English |
| Power supply | Power supply voltage | AC 100-240V (50/60Hz) | AC 100-240V (50/60Hz) | AC 100-240V (50/60Hz) | AC 100-240V (50/60Hz) |
| Power consumption | <220W | <180W | <400W | <1150W |
| Standby power consumption | <3W | <3W | <3W | <3W |
| Work Environment | temperature | 0°C ~40°C | 0°C ~40°C | 0°C ~40°C | 0°C ~40°C |
| Humidity | 20% ~80% | 20% ~80% | 20% ~80% | 20% ~80% |
| Accessory | Power cable / remote control / manual / USB cable | Power cable / remote control / manual / USB cable | Power cable / remote control / manual / USB cable | Power cable / remote control / manual / USB cable |
| Dimensions | 999×592×86 | 1320×840×70 | 1528×958×134 | 1665*1042*147 |
| Net weight (Kg) | About 25 | About 45 | About 72 |
|
| Gross Weight (Kg) | About 35 | About 60 | About 92 |
|
| Optional computer | Motherboard |
| ASUS G41 | ASUS G41 |
|
| CPU |
| E5700 | E5700 |
|
| RAM |
| 2G(4G Optional) | 2G(4G Optional) |
|
| Hard disk |
| 2.5-inch 320G | 2.5-inch 320G |
|
| Infrared Touch | Screen aspect ratio |
| 16:9 | 16:9 | 16:9 |
| Resolution |
| 4096×4096 | 4096×4096 | 4096×4096 |
| Scan rate |
| 50scans/s | 50scans/s | 50scans/s |
| Smallest touch body |
| >=5mm | >=5mm | >=5mm |
| Response speed |
| >16ms | >16ms | >16ms |
| Durability |
| Withstand more than 60,000,000 times | Withstand more than 60,000,000 times | Withstand more than 60,000,000 times |
| Useful life |
| 8 years (maintenance once a year or more) | 8 years (maintenance once a year or more) | 8 years (maintenance once a year or more) |
| Surface hardness |
| Mohs 7 degrees | Mohs 7 degrees | Mohs 7 degrees |
| Power (W) |
| 1.5W | 1.5W | 1.5W |
| Positioning accuracy |
| Test pen +3mm | Test pen +3mm | Test pen +3mm |
| Using the Operating System |
| Windows98/2000/7/xp | Windows98/2000/7/xp | Windows98/2000/7/xp |
| Infrared touch screen supply system |
| USB Direct power supply | USB Direct power supply | USB Direct power supply |
| Computer Response |
| Automatic identification system | Automatic identification system | Automatic identification system |
| Cursor speed |
| >=120 points / s | >=120 points / s | >=120 points / s |
| Temperature |
| Working:-41ºC-70ºC | Working:-41ºC-70ºC | Working:-41ºC-70ºC |
| Humidity |
| Working:0-95% | Working:0-95% | Working:0-95% |
| Altitude |
| 3000m | 3000m | 3000m |
| Light resistance |
| The whole point of bright light | The whole point of bright light | The whole point of bright light |
| Drift |
| No drift | No drift | No drift |

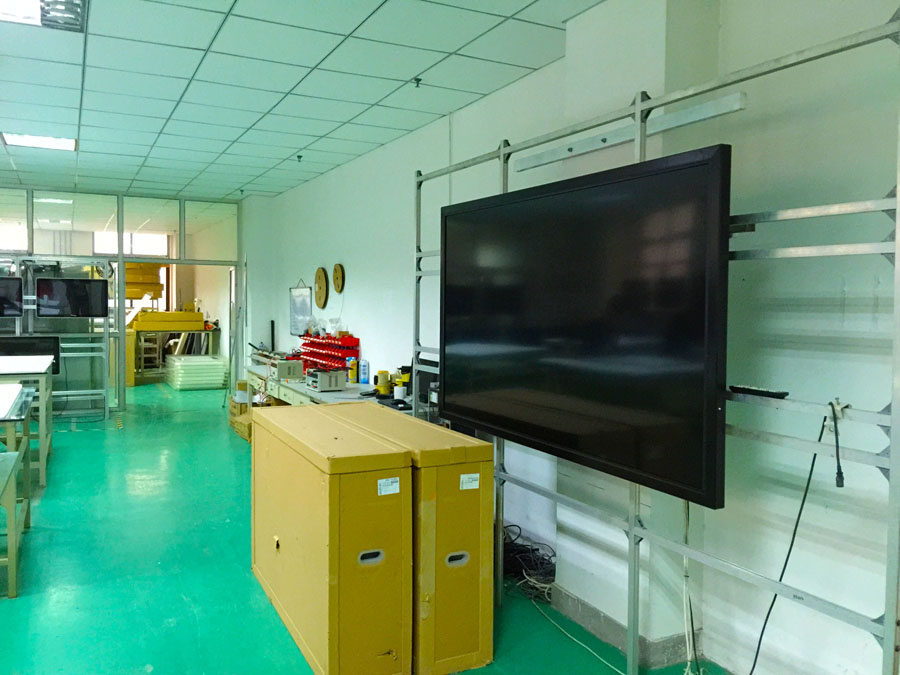

A.Workshop
B:Packing picture
C.SALES OFFICECompany:Shaanxi Hanley Electronic Manufacturing Co.,LtdAddress: Xi'anHigh-tech Zone Kam Yip Road, 10th Floor, Tower A territorial waters 11004 Room.Tel: +86-029-68255561-813 68255560 83391813 83391823Fax: +86-29-68255560Mobile phone: +86-13924867583
Shaanxi Hui Lian Electron Technology Co., Ltd. Was established in 2006, which is a high-tech Chinese enterprise specialized in development, production and marketing of DLP/DID large splicing screen, LCD monitor, LCD advertising displays, LCD Touch screen Kiosk, LCD video wall and LED electronic display panel. We have established a nationwide network of sales and efficient after-sales service system in China.
Shaanxi Hui Lian company providing cost-effective products and customer-oriented services. Fully aware of the importance of quality system and environmental protection, we have established the first-class quality control and environmental protection systems. Our company has been awarded the ISO9001: 2000quality management system certificate, and our products have passed such domestic and international certification accreditations as CCC, CE, RoHS CB, and we has authority of big-screen software.
Good product quality, good service attitude, good corporate reputation, Shaanxi Hui Lian Electron Technology Co., Ltd has been in the field of hydropower production scheduling, military command, urban management, mining safety, environment monitoring, fire weather maritime achieved excellent results, also wish become your most trusted long-term partners.
Welcome you to contact us and Join us!
