| Prod Model: |
HV65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50''-84'' |
| Touching Points: |
10 Points |
| Technology: |
Infrared Ray Touching |
| Touching Type: |
Finger or Any Opaque Object |
| LED Brand: |
LG/Sharpe/Samsun/Auo/Cmo |
| Resolution: |
1920*1080P/3840*2160p |
| Support System: |
Win8 Win7.2000.XP.Vista.Linux.. |
| Service: |
OEM Service and Free Teaching Software |
| Warranty: |
3 Years for Touch Frame |
| Skype: |
Riotouch005 |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
| Screen Size: |
50''-84'' |
Product Description
Packaging & Delivery
Packaging Details: | packed by pearl bag and then into carton |
| Delivery Detail: | 7 working days depends on touch screen monitor quantity |

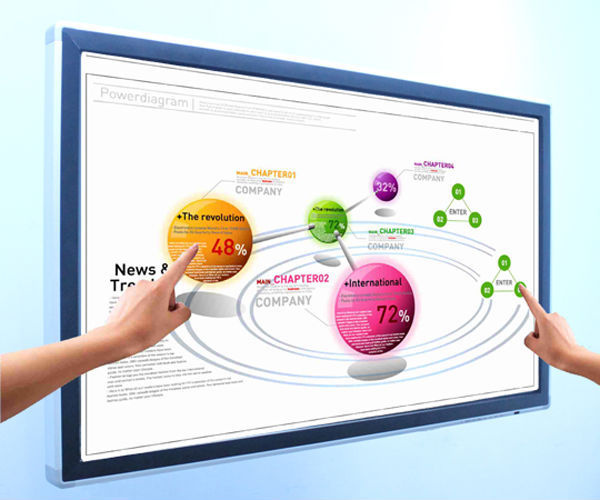

65'' LG/Sharpe/Samsung LED panel touch screen with PC/touch screen monitor with competitive price in education and business
Features:
Infrared touch
Finger touch.
Open frame, easy to install or remove, no need to open up the monitor or computer case.
Eliminates the electrostatic and reduces the radiation generated from the monitor.
Activated on touch by almost anything - finger, fingernail, gloved hand or stylus.
Remain left-right mouse-button functions on screen. |
Specification
| LCD Parameters | Size | 64.5" |
| LCD Brand | AUO |
| Packing Parameters | External Size | 1558*928*95.9mm |
| Touch Size | 1428.5*803.5mm |
| Plywood Carton Size | 1690*270*1180mm |
| Net Weight | 63KG (without wall-mounted) |
| Gross Weight | 80KG |
| Carton Size with wooden box | 1750*330*1300 +/- 50mm |
| Gross Weight with wooden box | 115kg |
| Power Parameters | Power | < 250W |
| Standby Power | <1W |
| Display Parameters | Active Display Area | 1428.48 (H) x 803.52 (V)mm |
| Pixel Pitch | 0.744mm |
| Display Colors | 1.07 billion colors |
| Number of Pixels | 1920x1080 pixels |
| Brightness | 360cd/m2 |
| Viewing Angle | 178 Degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | USB Multimedia Input ports | 2-line |
| Touchscreen port | 1-line USB2.0 |
| HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1-line |
| PC Audio port | 1-line |
| UPBRP audio and video input port | 2-line |
| AV Input port | 2-line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger,pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:first dot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
Standard Accessories without PC | Remote Control | TV Remote control |
| USB cable | 1.5m USB cable for touch monitor, USB2.0 |
| VGA cable | 1.5m VGA cable |
| Audio cable | 1.5m audio cable |
| CD | 1 pcs |
| Pens without ink | 2 pcs |
| Teaching Pointer | 1 pcs |
| User manul | 1 pcs |
| Wall brackets | Screws, wall mount kits |
| Standard Accessories with PC | Remote Control | TV Remote control |
| CD | 1 pcs |
| Pens without ink | 2 pcs |
| User manul | 1 pcs |
| Teaching pointer | 1 pcs |
| Wall brackets | Screws, wall mount kits |
| OPC Mini International PC | Three types of OPS PC for choice |
| | Version 1(Standard PC) |
| Motherboard | Intel NM70 |
| CPU | Intel 1037U 1.80GHz |
| RAM | DDR II 2G |
| Hard Disk | 500G |
| | Version 1 (Medium configuration PC) |
| Motherboard | Intel Hm76 |
| CPU | Intel i3-3227U |
| RAM | DDR II 4G |
| Hard Disk | 500G |
| | Version 2 (High configuration PC) |
| Motherboard | Intel Hm77 |
| CPU | Intel i5-3337U |
| RAM | DDR II 4G |
| Hard Disk | 500G |
| Wireless Mouse | Optional |
| Other Accessories | Wireless Mouse | Optional |
| Android | Optional |
| Wifi | Optional |
Packaging&Shipping
Package : 1 Set / carton ( carton Inside +wooden carton outside )
Delivery time: 4-10 working days after the payment
Who we are ?
Dong Guan RioTouch Technology Co., Ltd. is a professional manufacturer of infrared touch products. Currently, we have multi touch interactive whiteboards, smart board, touch screen monitor, all in one touch PC, touch screen overlay kit, Touch screen frame, OEM interactive whiteboard, OEM touch screen monitor, interactive whiteboard SKD, touch screen monitor SKD and information touch screen kiosk for school and office.
Besides these elegant touch products, we also provide our customers with education software and update freely.
Why choose us ?
1. Supply free teaching software and OEM service for VIP customers.
2. Cheaper Price with high quality products.
3. Fast delivery and excellent sale and after-sale service
4. 3 years warranty of touch frame is guaranteed
RFQ
1. What is the infrared technology ?
Infrared technology is most popular now ,it's stable than other technology ,like CCD ,EM board
2. How many touch does the infrared technology support ?
Infrared technology support 32 touch points now , it's more than CCD ( the best is 4 touches and EM board is 2 touches )
3. Why I didn't sound you brand " RIOTOUCH '' before ?
We often OEM for good brand , If you want to OEM ,we also can support .
4. If you can support the teaching software ?
Yes ,We can support the teaching software freely or OEM software . It's including math ,English ,Physic ,Chemistry subject resource . Over 28 language and also support you local language .
RioTouch is a professional manufacture of infrared touch screen, infrared frame, interactive whiteboard and touch screen kiosks. Also we have an enthusiastic team to provide you with solutions in many fields like hometheater, education, corporation, training and games. We aim to make everything easy and help you to turn your ideas and designs into reality.
RioTouch future research willmainly concentrate in the visual multi-touch technology development, interactive educational software development, interactive applications softwaredevelopment.
Riotouch is committeed to be:
1. Professional provider of human-computer interactive techniques.
2. China leading Infrared interactive whiteboard technology solution provider.
3. China leading infrared whiteboard SKD supplier.
4. China leading touch screen manufacturer
