| Prod Model: |
YN1 |
| Refrigerant: |
R410A |
| Compressor Type: |
Rotary |
| Eer: |
2.96 |
| Power Supply: |
115V |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
12000-15000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

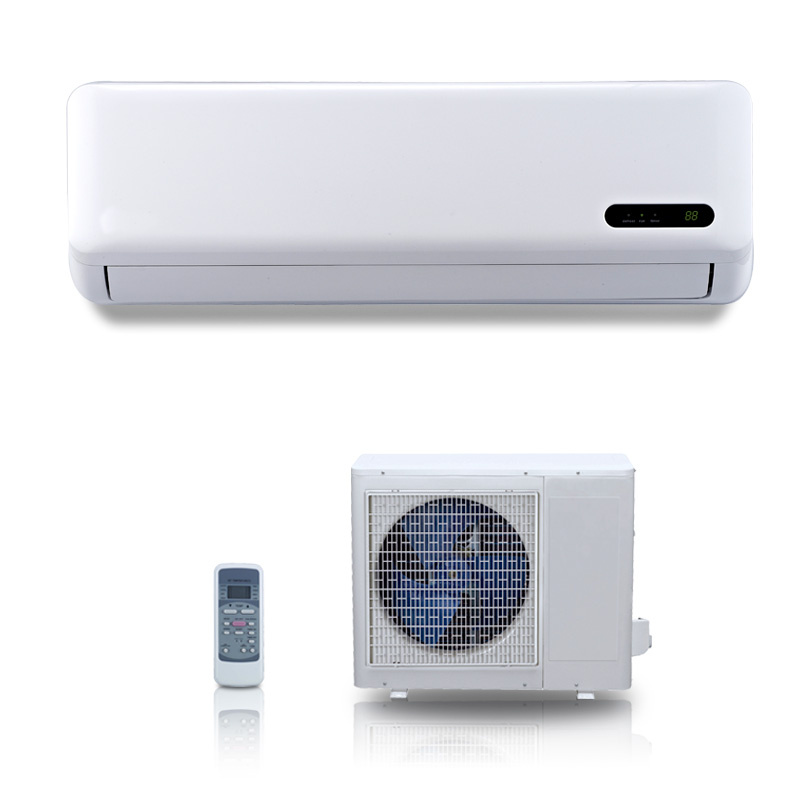

60Hz Cooling Only 12000Btu Split Unit Air Conditioner
Feature
1. 12000btu split unit air conditioner 60hz
2. Used the known brand compressor
3. Automatic restart function
4. Self-diagnosis and auto-protection
5. Intelligent defrosting
6. Intelligent control, easy operation
7. Independent de-humidifying
8. 5 years warranty for compressor, and 2 years for complete unit
10. 1% free spare part of total amount
Specification
Power supply | Ph-V-Hz | 115V~ 60Hz, 1Ph |
| Cooling | Capacity | Btu/h | 10936.18952 |
| Input | W | 1080.94 |
| Rated current | A | 10.0 |
| EER | W/W | 2.96 |
| Heating | Capacity | Btu/h | ---- |
| Input | W | ---- |
| Rated current | A | ---- |
| COP | W/W | ---- |
| Moisture Removal | L/h | 1.1 |
| Max. input consumption | W | 1400 |
| Max. current | A | 13.0 |
| Starting current | A | 51 |
| Compressor | Model | | QK156CBA |
| Type | | ROTARY |
| Brand | | LG |
| Capacity | Btu/h | 11150 |
| Input | W | 1014 |
| Rated current(RLA) | A | 9.5 |
| Locked rotor Amp(LRA) | A | 51 |
| Thermal protector | | MRA12061-12026OR B405-150-241A |
| Thermal protector position | | EXTERNAL |
| Capacitor | uF | 60 |
| Refrigerant oil/oil charge | ml | SUNISO 4GSI OR NM56M / 280 ±10cc |
| Refrigerant type | g | R22/460g |
| Design pressure | MPa | 380/150 PSIG |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ12.7(1/4"/1/2") |
| Max. refrigerant pipe length | m | 10 |
| Max. difference in level | m | 5 |
| Connection wiring | | 2.5(Optional) |
| Plug type | | 14# |
| Thermostat type | | Remote Control |
| Operation temperature | Indoor(cooling/ heating) | ºC | 17-30 |
| Outdoor(cooling/heating) | ºC | 18-43/---- |
| Application area | m2 | 16-27 |
| Qty'per 20' /40' /40'HQ | | 111/239/273
|
