| Prod Model: |
KW-0570 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
25*25*92mm |
| Weight: |
128g |
| Capacity: |
5600 mAh |
| Outport: |
5V 2A, 5V, 1A and 5V, 2A |
| Input: |
5V 1A |
| Warranty: |
12 Months |
| Type: |
Portable |
| Power Source: |
Electric |
| Socket Type: |
USA, USB Universal Portable Power Bank |
Product Description
2014 Wholesaler Wireless 5600MAH Power BankInstruction to the connection of wireless network
The computer is connected to the operating instruction of this equipment (XP )

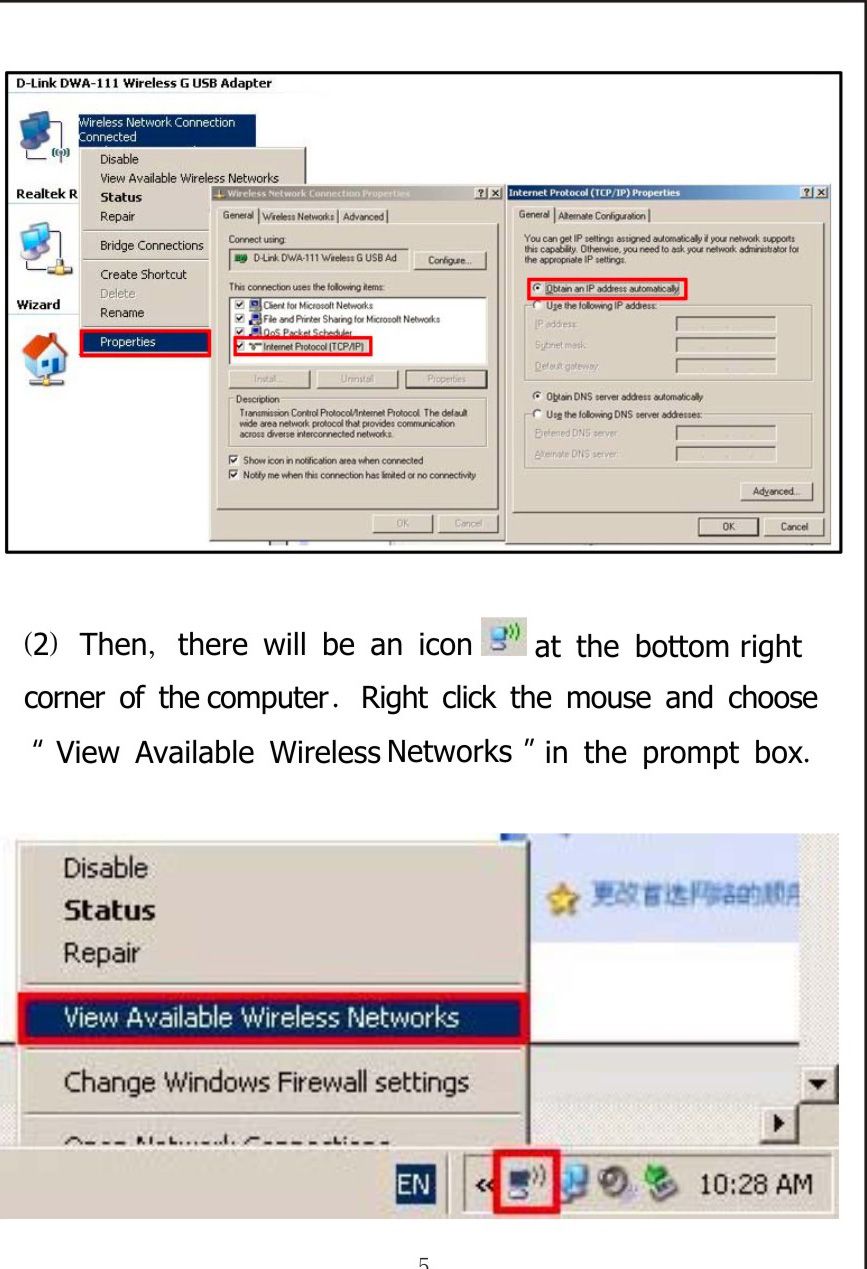

(1) Choose "wireless network connection" in the property option of the "network connection" on the desktop .Following the instruction of the picture ,set the computer Internet protocol to be "Obtain an IP Address Antomatically".
(2) When the status indicator for this equipment is "Blue light in on continuously"(3G network) or purple light (2G network ) is on continuously ,it means the direct dial is successful . Through WIFI ,connect the Internet device wirelessly to it and the Internet can be visited .

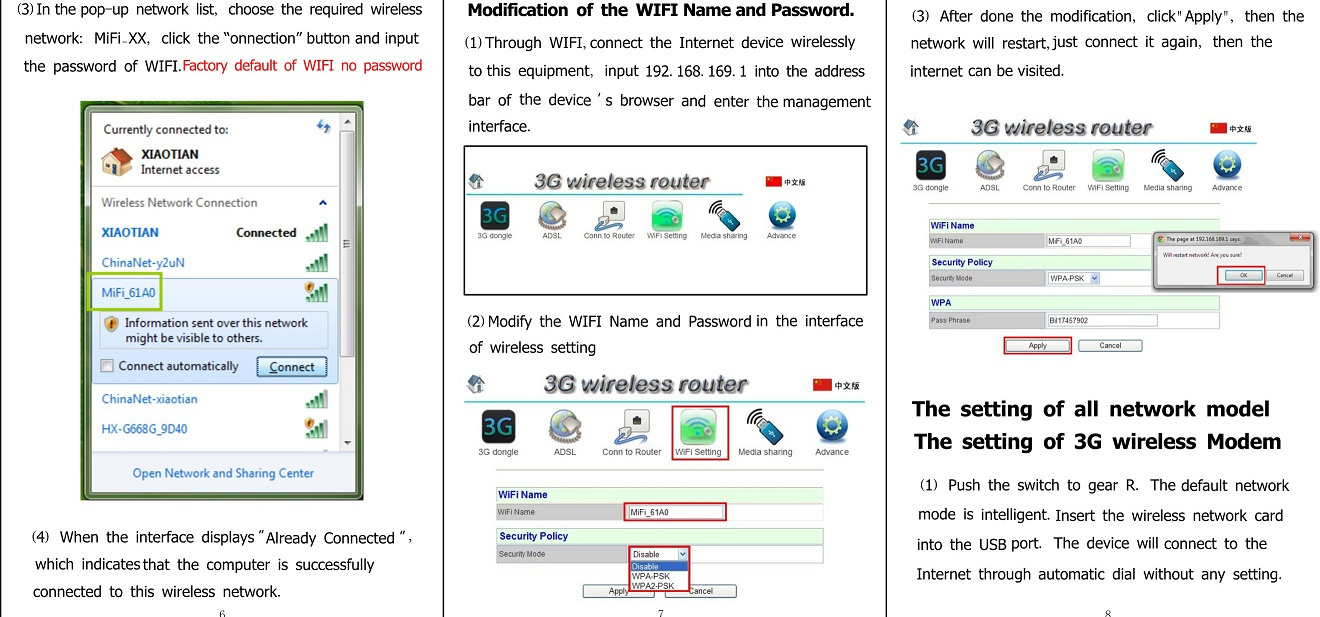

Network setting for ADSL (1) Push the switch to gear R . Under the intelligent mode ,connect the LAN port of modem to network port of this equipment through the network cable .(2) Through WIFI ,connect the Internet device wirelessly to it ,input 192.168.169.1 into the address bar of the device`s browser then enter the management interface which can be seen in the picture below .Click?ADSL? input the ADSL account and password ,then click "Apply",then the network will restart ,just connect it again , " Blue light is on continuously" then the internet can be visited .
Network setting for the hotel (1) Push the switch to gear R. Under the intelligent mode, connect the network cable of the hotel or LAN port of upper-level router to network port of the equipment . (2) Through WIFI,connect the Internet device wirelessly to it . When the status indicator for equipment is "Blue light is on continuously" it means the network connection is successful and the Internet can be visited .
Network setting for static IP and DHCP (1) Push the switch to gear R. Connect LAN port of upper-level router to the WAN port of this equipment .(2) Through WIFI, connect the internet device wirelessly to it ,input 192.168.169.1 into the address bar of the browser then enter the setting interface of the equipment ,click "Conn to Router",choose the mode of wireless router and input relevant para meter ,then click "Apply" . After restart ,just connect it again ,then the internet can be visited .
Multi-Media Sharing Multi-Media function support DLNA and Samba protocol ,Can realize single ormore multimedia file sharing .
Remark: DLNA (Digital Living Network Alliance )
(1) DLNA entertainment sharing
IOS Platform : a. Insert U disk , Hard Drive or other storage device insert USB Port . b. Connect the wifi hotspot through WIFI . c. Download "Goodplayer" in App Store or other website open the "Settings" -----"plug-in settings"----"Ipod", then choose "play through the iPod plug playback".
Android Platform : a. Insert U disk , Hard Drive or other storage device insert USB Port . b. Connect the wifi hotspot through WIFI . c. Download "Goodplayer" in "Android Market" or other website . d. Run Goodplayer ,refresh device and find "ishare-MPRouter", then choose the corresponding multimedia documents to browsing ,music broadcast and video broadcast.

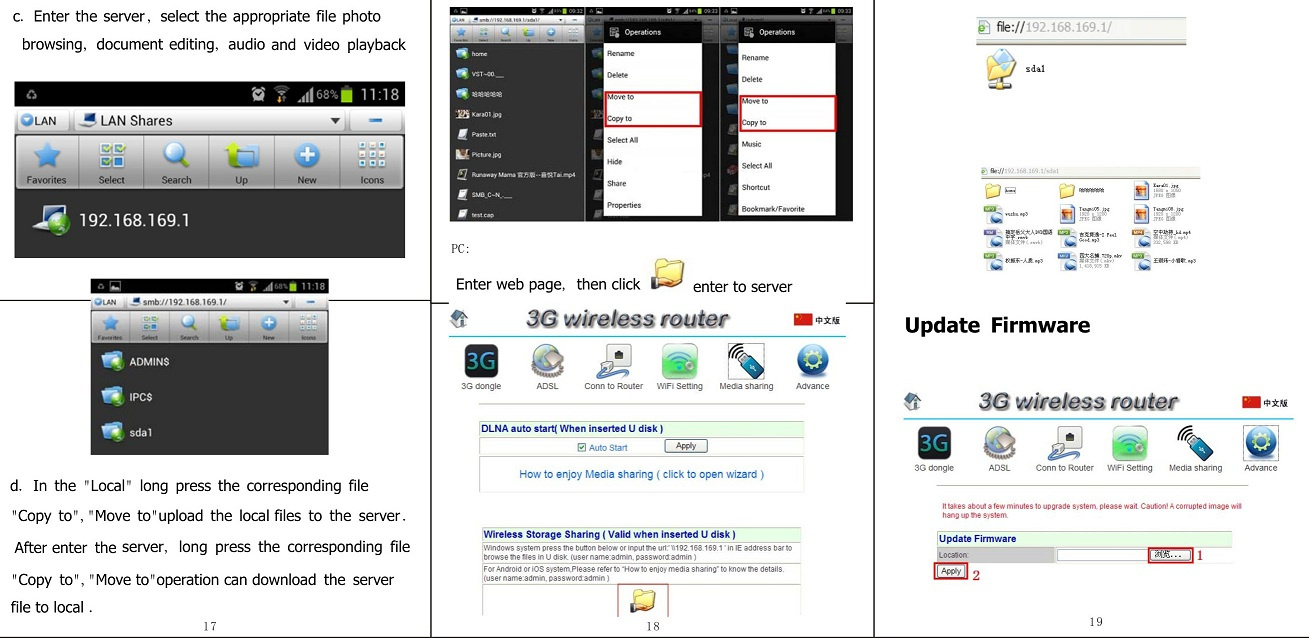

(2) Cloud Storage
IOS Platform : a.Open "Goodplayer", then in "SMB /CIFS Client" option to add the server address 192.168.169.1 , User name admin ,password admin ,then save and enter. b.After enter the server ,you will see the all documents ,select the appropriate file tobrower ,edit, playback, upload, and download .
Android Platform :
a. Download and install "ES File Browser"
b. Open "ES File Browser", click "Share", choose "Menu"---"New" server, location 192.168.169.1 , username admin ,password admin ,confirm and save
