| Prod Model: |
PAA60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size(W*H*D): |
420mm X 109mm X 357mm |
| Weight: |
9.4kg |
| Color: |
Black |
| Function: |
Amplifier Combined |
| Voltage: |
AC 220V |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Usage: |
Commercial |
| Sound Channel: |
Mono |
Product Description
Product description

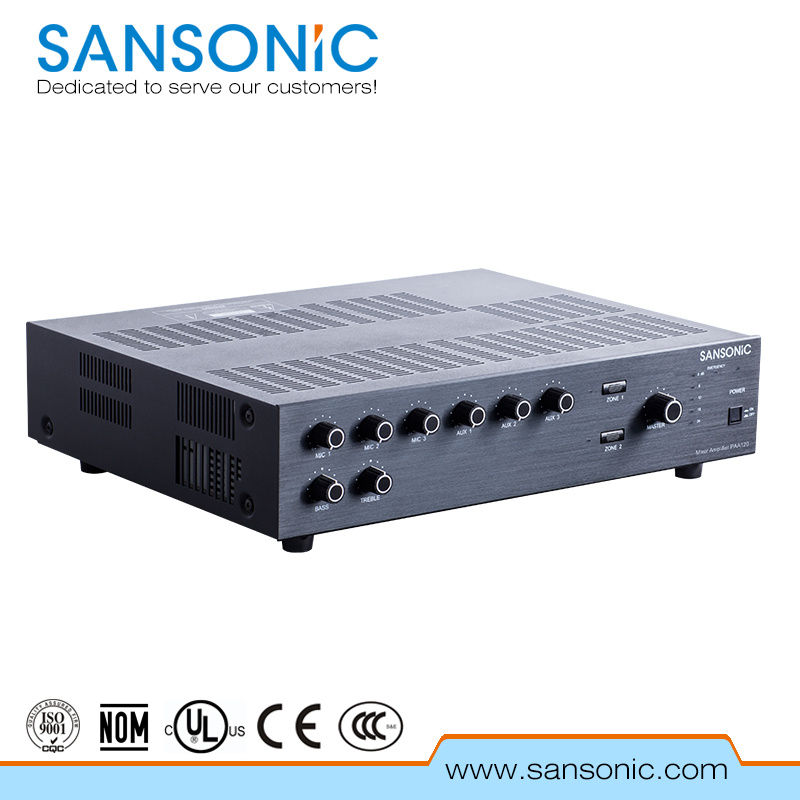

PAA60 series is the sansonic high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 60W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, output terminal can be chosen from 100V and 4-16ohm to suit for different speaker installation, Less than 1% at 1kHz. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC 1~5 Canon port balanced input, AUX Canon port balanced input, AUX 3 line RCA input
3. The panel with volume adjustment knob
4.4~16Ω , 100V output terminal multi-impedance output
5. Sound-recording output RCA output;
6. Linear RCA output
7. Signal lamp, peak lamp display
9. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
| Specification |
| Model | PAA60 |
| Power requirement | 110-125V AC or 220V-230V AC,50/60Hz |
| Rated power | 60W |
| Distortion | Less than 1% at 1 kHz |
| Frequency Response | 50~20,000Hz(±3dB) |
| Tone control: | Bass: ±10dB at 100Hz/Treble: ±10dB at 10KHz
|
| Outputs | Recording Output | 0dB, 600ohmUnbalanced, RCA pin jack |
| Line 1,2: | 0dB, 600ohm Unbalanced, RCA pin jack
|
| Speaker selection output: | 2 zone, high impedance, individual selector SW, screw terminals
|
Direct Out
| High Impedance: 100V screw terminal
|
Low Impedance:4~16ohm screw terminal
|
| Inputs | MIC 1 |
-60dB,600ohmelectronically-balanced, combine type of XLR-3-31 equivalent and phone jack, DIN
|
| Mic2-3: | 0.316 ~ 3.16mV (-50 ~ -30dBV) balanced Phenix Input
|
| AUX 1(MOH): | -20dB, 10kohm unbalanced RCA pin jack
|
| AUX 2: | -20dB, 10kohmunbalanced RCA pin jack
|
| AUX 3: | -20dB, 10kohm unbalanced combine type of XLR-3-31 equivalent and phone jack
|
| Operating Temperature | -10 to +40 |
| Color | black |
| Dimensions(W*H*D): | 420X190X357MM |
| Weight | 9.4kg |
