| Prod Model: |
YES12W5000230SG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging: |
PE Bag+ White Paper Box + Carton |
| Major Test 1: |
Surge Test,EMI,EMC,Spt,RoHS,EMS |
| Major Test 2: |
Insulation Test,Efficiency,Burn-in Test |
| Major Test 3: |
Swing Test, Drop Test, Salt Spray Test |
| Built-in Protection: |
Short-Circuit, Over-Voltage, Over-Current |
| Size: |
60*39*31mm |
| Warranty: |
One Year |
| Output Voltage: |
5V DC |
| Output Current: |
2.3A |
| Usage: |
LED Light Strip Set-Top Box Speaker Video Audio |
| Output Type: |
DC |
| Connection: |
Plug In |
| Certification: |
FCC CE Kc ETL GS C-Tick PSE |
| Color: |
Customerization |
| Type: |
ODM&OEM |
| Brand: |
Yes |
Product Description
Technical Data

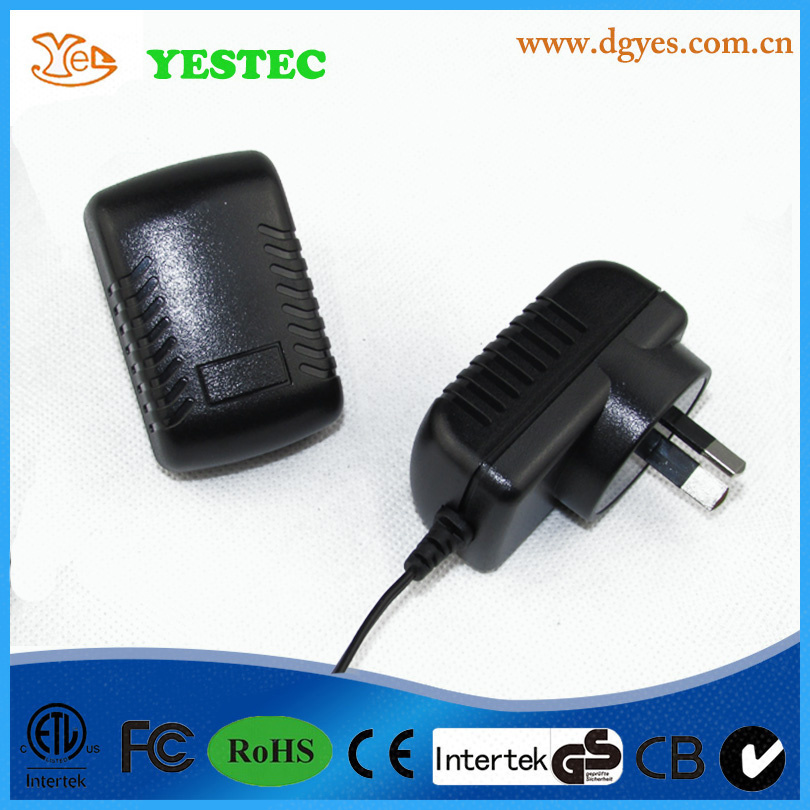

| Name | 5V2.3A phone accessory for Au Plug |
| Type | wall mount |
| Color | Customizable |
| Input Rated Voltage | 100VAC-240VAC |
| Input Voltage Range | 90VAC-264VAC |
| Input Rated Frequency | 50/60Hz |
| Input Current | 0.35A |
| Output voltage range | 3V-24V DC |
| Output current range | 0.1A-2.1A |
| Output Voltage tolerance | ±5% |
| Output power | 13.5w max. |
| Efficiency Level | Comply with CEC efficiency level VI and ERP Stage II |
| No load power consumption | 0.1W Max |
| Burn in | 85-95% load, 40±5ºC,4hours |
| Leakage current | 0.25mA max 254VAC |
| DC Plug Specification | Customizable |
| Operating Temperature Range | 0ºC-40ºC |
| Storage Temperature Range | -20ºC-85ºC |
| MTBF | 50,000 hours above |
Terms of conditions
1. Quotation based on FOB,CIF,CRF,EXW (Port of loading: Shenzhen or HK)
2. Payment term: T/T, L/C at sight, Western union, Money-gram. We can provide better payment term with our business growing.
3. Lead time: 25 days after all artwork confirmed
Our service
OEM /ODM Service
With professional R&D and sales team, we provide OEM /ODM service with user-defined logo, packaging, tooling or other technical requirement.
After-sales Service
All products have at least 1 year warranty. Free replacement can be provided if there is no man-made defect.
Our team will give quick response and seek for satisfying solutions for any complains received.
Why Choose YuanShuai
1.Over 5 years of professional experience in product designing and manufacturer.
2. Professional R&D and sales team; Quick and efficient to inquiry or complaint.
3. Advance equipment for reliability test; 100% raw material testing; PCBA testing ;Aging testing;
4. High power efficiency which complies with CEC efficiency level VI and ERP Stage II, more energy saving and environmental protection.
Our company was founded in 2011, the main business ranges from safety power adapter, switching power supply, charger to transformer. Dongguan Yuanshuai Electronics Co., Ltd has established at Dongguan in 2013, the area of our factory has 5000 square meters and our employees have been over 500 persons, and we have an engineering research and development technical team engaged in power supply industry for more than 10 years, we can supply more than 5 million of excellent power supply products to the world each year.
At present, our company has passed CCC UL/cUL ETL CE GS CB BS PSE SAA KC and other safety certifications. Products reach not only energy efficiency standards of level 6 but also have passed the FCC EMC test standards. Our products can be sold in China, the United States, Europe, UK, Australia, Japan, South Korea and etc. Which widely used in IT digit, communications, LED lighting, audio, set-top box, smart appliances, smart home, security and other industries of all kinds of standard power supply products. According to the customer requirement, we can develop design and produce full ranges of power supply products. The development time is short and products have competitive price.
Our company have load saving energy, automatic tester, lead-free wave soldering and other advanced producting lines. From the development, purchasement to production, every producting process will be followed the ISO9001: 2000 enterprise approval standrad strictly, To ensure the quality of the products stability and reliablity so that all the products will through burn-in testing, and lead to ERP management system with the intention to higher quality at the same time lower the cost, afford our customer a better service and more competitive products.
We continuously to innovate our power supply product technology to follow the global market tightly so that our products have keep characteristics of high quality, high security and high stability. Hope we can meet all your requirements, and we are looking forward to cooperate with you soon.
