| Prod Model: |
YS6MC-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Half-Bridge Type |
| Internal Structure: |
on-off Type |
| Service: |
Provide Customized Service |
| Experience: |
20 Years'experience |
| Quick Delievery: |
15-25 Days |
| Color: |
Black, White |
Product Description
We are a leading manufacture and export of switching and linear power adapters, transformers, power cords, charger, car chargers, etc

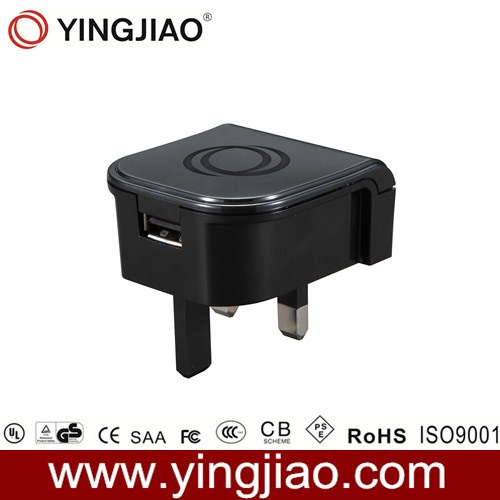

3-6W Switching Power Adapters, CE, RoHS, EMC, EUP compliance.
1,Switching Power Adapters
2,Model: YS6MC series
3,Model: YSV6 series(Changea
4,Range: 1-6W
5,Rated Power: 6W
Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Mechanical:
Optional AC Input Plug: US/EU/UK/AU
Dimension: 46× 46× 24.5mm
N. W.: 90g
Output plug: USB
| Output voltage(DC) | 5v |
| Output current(max.) | 1.2A |
Packaging & Delivery
Packaging Details:PE bag,White Box+Carton or as customer's requirement.
Delivery Detail:15-25 days after receipt of client deposit.
our services:
We can design and manufacture power supply products according to the various demands of different customers.Also,ODM/OEM are always highly welcome here.
Company information:
Yingjiao Electrical Co.,Ltd., established in 1996 , is a leading manufacturer and exporter of switching&liner power adapters,tansformers,battery chargers,car chargers,power cords,etc.Being exported to over 50 countries such as and regions for 19 years,UK, US, France, Germany, Poland, Canada, South Africa, Spain,Italy,Argentina. Israel,Malaysia.And we have been ISO9001:2000 and SGS certified.
Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.
Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.
We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.
We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.
ODM/OEM partners are welcome too.
