| Prod Model: |
ZB15T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity(Kg/24h): |
15000 |
| Ice: |
Block |
| Control System: |
2000*1200*1600 4800*1000*2250 |
| Refrigerant: |
R22/R404A |
| Control: |
Electric |
| Power: |
>400W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Household |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Cube, Tube, Flake, Plate, Snow, Block, Graular |
Product Description

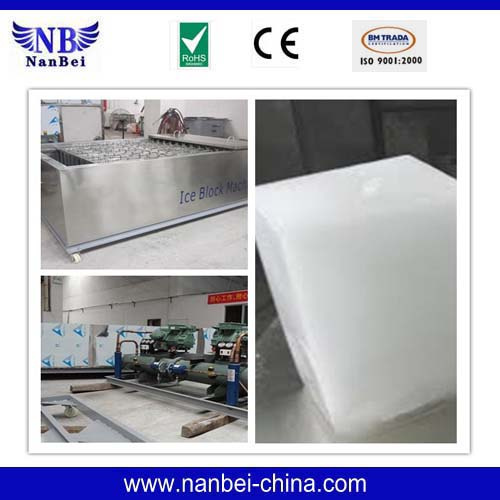

Introduction to block ice machine:
1. Daily capacity: from 1 ton to 100 tons per set/24 hours.
2. Weight of each block ice: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg....50kg...100kg. We also can customize for you.
3. Installation and operation is very easy. We will deliver the machine mainly as three parts to you. All you need to do is to connect the cooling tower with the refrigeration unit and connect refrigeration unit with the brine tank.
4. We will deliver the machine together with manual book which will instruct you how to install the machine and also teach you how to solve the common mistakes to the machines.
5. Our block ice machine gets European standard CE approval, Our company passes CE certificate.
6. For our products, we offer you 1 year quality guarantee after the installation of the machine in your factory and lifelong technical support.
Parameters:
Model |
Capacity |
Refrigerant |
Total power |
Dimension |
-- |
Ton/d |
-- |
kW |
Part name |
(L*W*H)mm |
ZB5T |
5 |
R22/R404A |
21.14 |
Complete unit |
1400*1000*1250 |
ZB10T |
10 |
R22/R404A |
40.69 |
Refrigeration Unit |
1800*1000*1450 |
Evaporator
(Brine tank) |
4800*1000*2250 |
ZB15T |
15 |
R22/R404A |
60.60 |
Refrigeration Unit |
2000*1200*1600 |
Evaporator
(Brine tank) |
4800*1000*2250 |
ZB20T |
20 |
R22/R404A |
88.50 |
Refrigeration Unit |
2400*1600*1800 |
Evaporator
(Brine tank) |
4800*1000*2250 |
Standard condition:
1 Dry ball temperature is 33 °C and water inlet temperature is 20°C.
2 The optional ice block weight: 5kg , 10kg, 20kg 25kg, 30kg.50kg.100kg
3 Block ice has a large dimension but has small contact area so it does not melt easily.
4 It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels and so on.
Nanbei offers both transparent and milky white ice for your preference.
1 Ti pipe is used as evaporative coil to improve the heat transfer effect, and its stainlessness, anti-corrosion can guarantee thelong service time.
2 The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.
3 The particular design of ice thawing thank and ice dumping unit bring easier operation.
4 The thawing tank is heated by hot has discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
5 Modular and integrated design ensures it is easy to ship, move and install on the spot.
6 Every brine refrigeration block ice machine can be customized according to our clients requirements.
7 The brine refrigeration block ice machine can be containerized: 6T/day ice production is a 20' container and 12.5T/day ice production in a 40' container.
