55inch Elongated LCD Display
| Price: |
US $ 1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Paypal |
| Prod Model: |
DE575TXP01 |
| Application: |
Semi Outdoor AD Player |
| Screen Size: |
50-60 Inches |
| Type: |
Touch Screen Panel AD Player |
| Touch Screen Type: |
Infrared |
| Screen Technology: |
LCD |
| Interface Type: |
D-Sub(',VGA) |
| Remote Control: |
With Remote Control |
| Customized: |
Customized |
| Installation: |
Vertical Wall-Mounted Combined |
| OS: |
Windows/Linux/XP/ Android |
Product Description

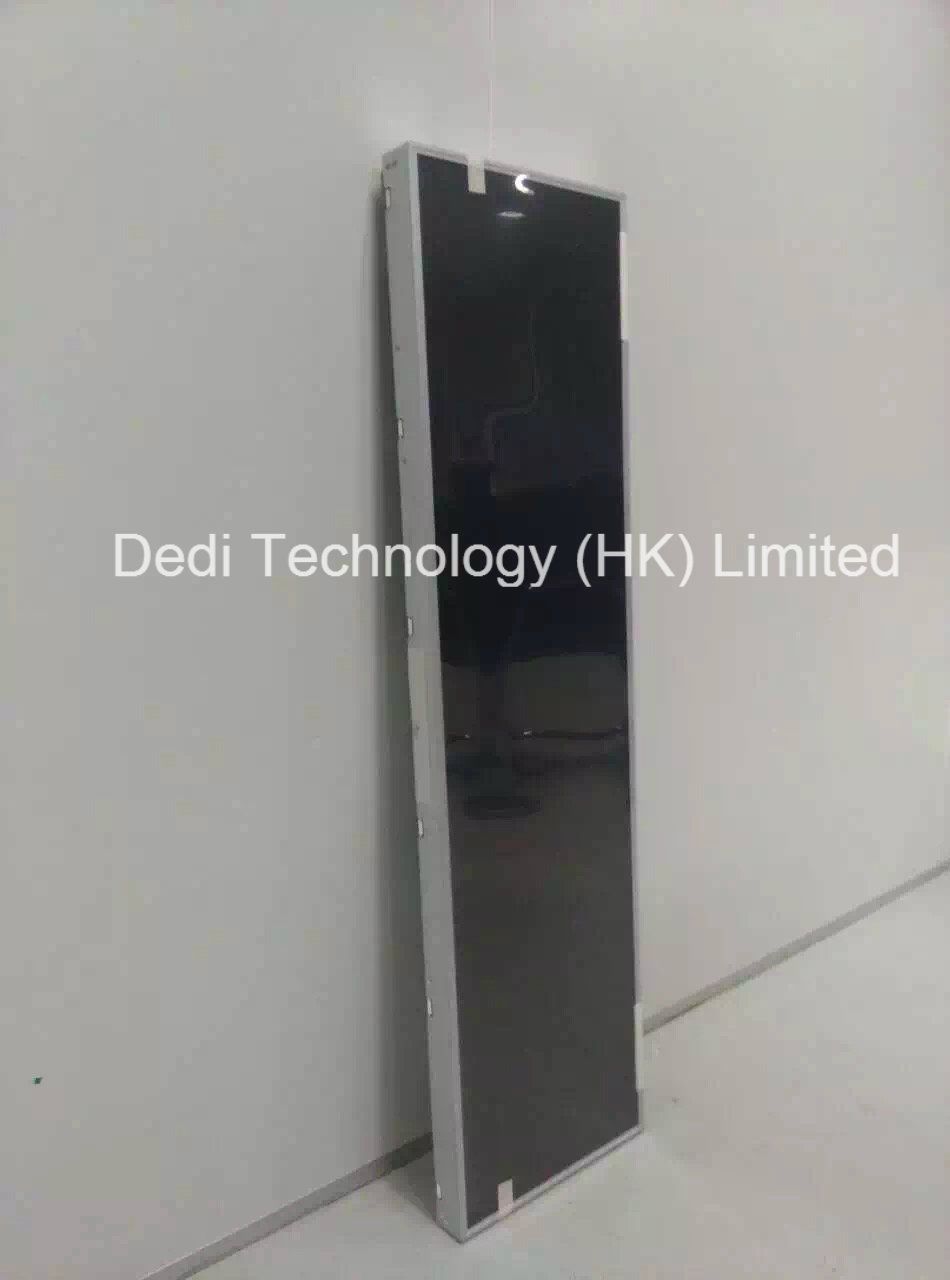

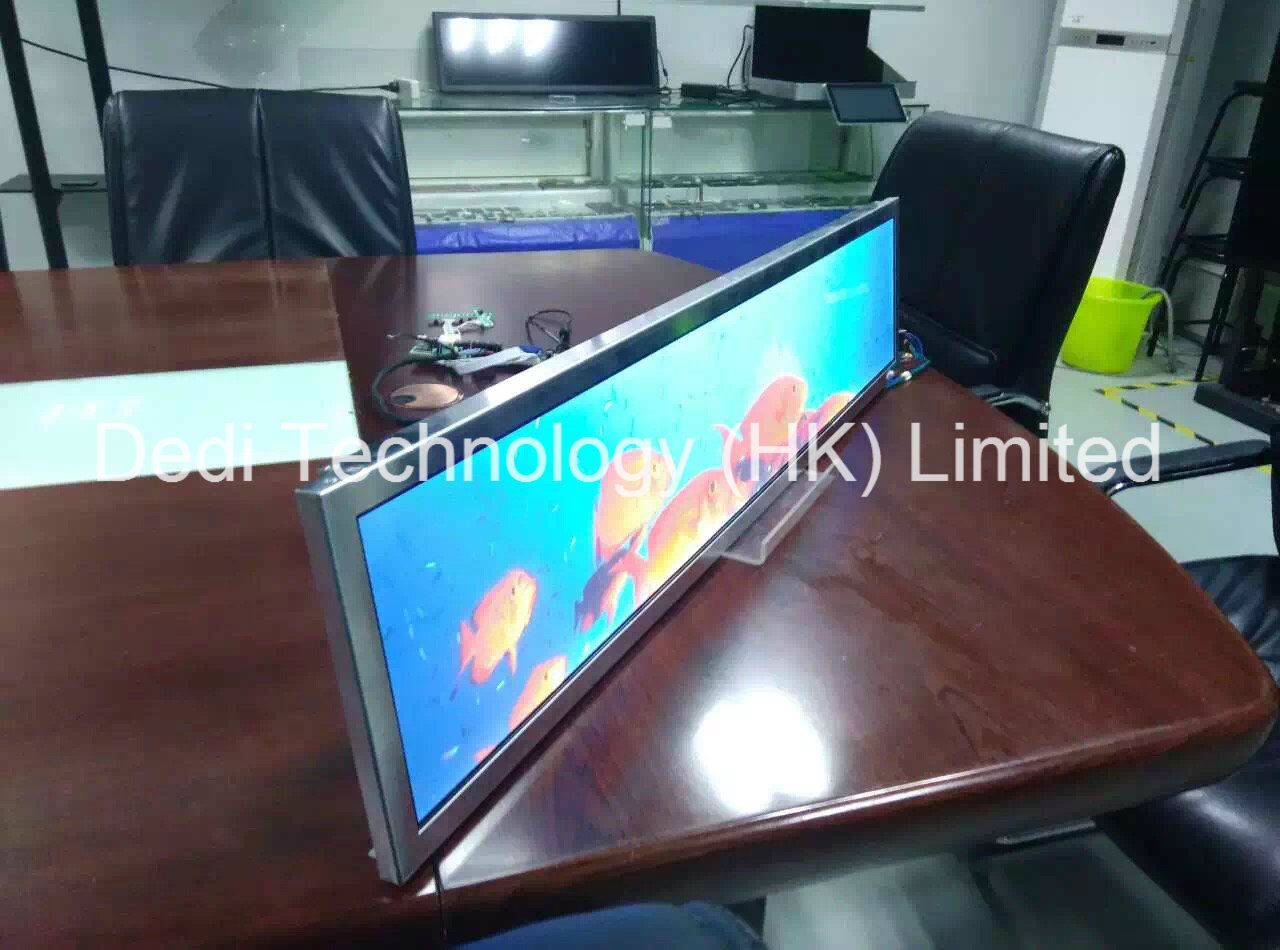

This specification applies to the 57.5 inch Color TFT -LCD SKD model DE575TXP01. This LCD Open Cell Unit has a TFT active matrix type liquid crystal panel 1,920x405 pixels, and diagonal size of 57.5 inch. This Open Cell Unit supports 1,920x405mode. Each pixel is divided in to Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
| Items | Specification | Unit | Note |
| | | | |
| Active Screen Size | 57.5 | inch | |
| | | | |
| Display Area | 1428.48 (H) x301.2 (V) | mm | |
| | | | |
| Outline Dimension | 1471.5(H) x 345.9 (V) x 29 (D) | mm | D: cell thickness |
| | | | |
| Driver Element | a-Si TFT active matrix | | |
| | | | |
| Bezel Opening | 1435.5+/-0.8 (H) x 308+/- 0.8 (V) | mm R | ecommended |
| | | | |
| Display Colors | 10 bit, 1.07B | Colors | |
| | | | |
| Number of Pixels | 1,920x405 | Pixel | |
| | | | |
| Pixel Pitch | 0.744 | mm | |
| | | | |
| Pixel Arrangement | RGB vertical stripe | | |
| | | | |
| Display Operation Mode | Normally Black | | |
| | | | |
| Surface Treatment | Anti-Glare, 3H | | Haze=2% |
| | | | |
| Weight | 10000 g Tpy | | |
| | | | |
| Rotate Function | Unachievable | | Note 1 |
| | | | |
| Display Orientation | Signal input with "ABC" | | Note 2 |
