| Prod Model: |
HV55, 65, 70, 84 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50, 55, 65, 70, 84 |
| Touch Point: |
2--10 Touch |
| Technology: |
Infrared |
| Certificate: |
CE, FCC Class B, RoHS |
| Software: |
for Free Supply Education Software and Update |
| Aspect Ratio: |
4:3 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Customized |
| Screen Size: |
50"--84" |
| Resistive Touch Screen Type: |
No |
Product Description

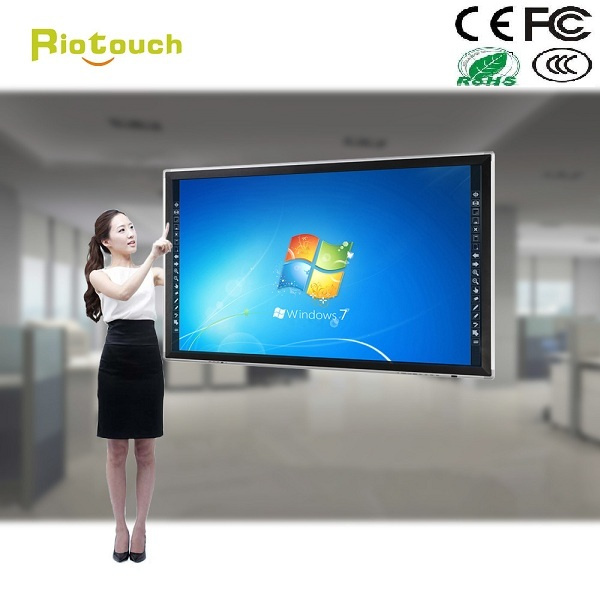

55 inch wall mount all in one touch LCD monitor touch screen
All in one touch screen monitor is an interactive TV, it built-in with LED and touch screen (and PC for optional). We use the most popular technology infrared touch to achieve interaction between users and the monitor; It is also a LED interactive whiteboard without projector, using the LED to instead of the projector for image presentation; Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc
Our touch screen monitor designed for education, government, military and exhibition. the Touchscreen range can be used with finger, gloved hand, pen or stylus as a pointer; activating the screen requires no pressure so will incur less damage over time. Unlike capacitive touchscreens, infrared touchscreens do not require any glass patterning, not only does this improve optical clarity, it also increases its durability.
| Riotouch 65" LED Touch Monitor Specification |
| Model | Rio-HV65 |
| Image: |
|
| LCD Parameters | Size | 64.5" |
| LCD Brand | AUO |
| Packing Parameters | External Size | 1558*928*95.9mm |
| Touch Size | 1428.5*803.5mm |
| Plywood Carton Size | 1690*270*1180mm |
| Net Weight | 95kg |
| Gross Weight | 116kg |
| Power Parameters | Power | < 250W |
| Standby Power | <1W |
| Display Parameters | Active Display Area | 1428.48 (H) x 803.52 (V)mm |
| Pixel Pitch | 0.744mm |
| Display Colors | 1.07 billion colors |
| Number of Pixels | 1920x1080 pixels |
| Brightness | 360cd/m2 |
| Viewing Angle | 178 Degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | USB Multimedia Input ports | 2-line |
| Touchscreen port | 1-line USB2.0 |
| HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1-line |
| PC Audio port | 1-line |
| UPBRP audio and video input port | 2-line |
| AV Input port | 2-line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger,pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 4096*4096 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:first dot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
Standard configuration | Interactive all-in-one touch monitor | 1set |
| Remote Control | TV Remote control |
| USB cable | 1.5m USB cable for touch monitor, USB2.0 |
| VGA cable | 1.5m VGA cable |
| Audio cable | 1.5m audio cable |
| CD | 1 pcs |
| Pens without ink | 2 pcs |
| User manul | 1 pcs |
| Wall brackets | Screws, wall mount kits |
| Optional Configuration | Three types of OPS PC for choice |
| Version 1(Standard PC) |
| Motherboard | Intel NM70 |
| CPU | Intel 1037U 1.80GHz |
| RAM | DDR II 2G |
| Hard Disk | 500G |
| Version 2 (Medium configuration PC) |
| Motherboard | Intel Hm76 |
| CPU | Intel i3-3227U |
| RAM | DDR II 4G |
| Hard Disk | 500G |
| Version 3 (High configuration PC) |
| Motherboard | Intel Hm77 |
| CPU | Intel i5-3337U |
| RAM | DDR II 4G |
| Hard Disk | 500G |
| Wireless Mouse | Optional |
FAQ
1.whats your company production period?
300 sets of HV65 for one week.
2.You are manufacture or distributor?
We are manufacture of interactive products for years.Our factory have 2500 squar with 3 productsion line.
3.Do your company have education software?
Yeah,we have education software for free and update in the future.
4.How about your products warranty?
For our finished products we supply one year warranty.For the electronic parts we support 3 years warranty.
5.During this period if some parts of the machine have problem what will you do?
If the touch frame have problem please pull the touch frame out of the touch monitor and send to us and we will fix it or send you a new touch frame.
6.How is your packing?
We use carton inside and wood packing outside.
