| Prod Model: |
PM550DSn |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diagonal Size: |
55" |
| Aspect Ratio: |
16:9 |
| Pixel Pitch: |
0.63(H) X 0.63(W) |
| Response Time: |
<5ms |
| Resolution: |
1920X1080 |
| Contrast Ratio: |
1400:1 |
| Brightness: |
500CD/M2 |
| Activve Display Area: |
1264(H)X738.4(V) |
| Display Color: |
16.7m |
| Viewing Angle: |
H:178 Degree V: 178 Degree |
| Screen Size: |
50-60 Inches |
| Remote Control: |
With Remote Control |
| Screen Technology: |
LCD |
| OS: |
Android |
| Type: |
Network Version AD Player |
| Application: |
Bus/Car AD Player |
| Installation: |
Vertical |
| Customized: |
Customized |
Product Description

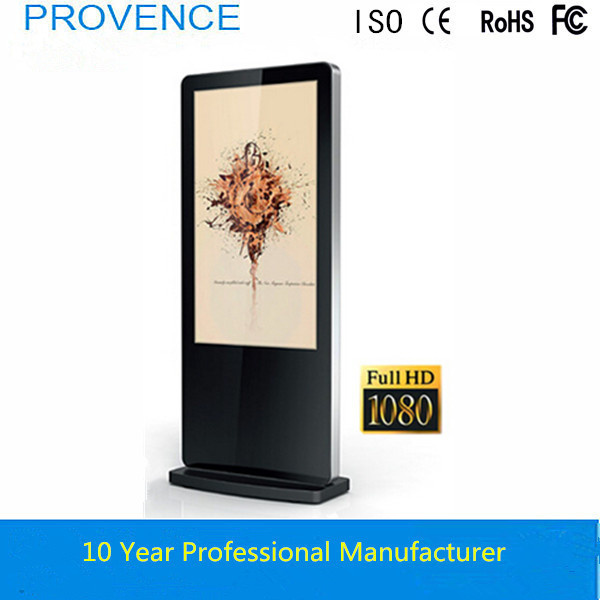

55 Inch Android Full HD LCD Digital Signage Display
Product Feature:
1. Adopt out company's patented energy-saving, ultra-high, super-brightness LED backlight, the brightness of the LCD screen image up to ultra high brightness (it is about 4-5 times conventional products' brightness)
2. Adapt to wide working environment temperature: It could be as low as minus -20 degrees Celsius to +50 degrees Celsius
3. In the low temperature and humid environment, the LCD screen surface is no condensation.
4. Automatic light sensor controls, adjust the brightness automatically according to ambient light ( to maximize energy efficiency )
5. The high bright color display, up to 1920 x1080 resolution
6. Energy-efficient air cooling system
7. Outdoor all-weather waterproof and dustproof metal case + antireflection protective glass
8. Rack-mounted built-in LCD display module + anti-theft locks, unique patent, easy on-site dismantlement and maintenance.
9. When strong direct sunlight in the screen surface, beautiful in color, clear in visual image
10. With waterproof, dustproof, high temperature and the outstanding features to meet the outdoor all-weather harsh environment using. (Need replacement Dustproof cotton every six month).
|
Product Description |
|
LCD panel |
|
|
Diagonal Size |
55" |
|
Aspect Ratio |
16:09 |
|
Pixel Pitch |
0.63(H) x 0.63(W) |
|
Response Time |
5ms(G-G) |
|
Resolution |
1920X1080 |
|
Contrast Ratio |
1400:1 |
|
Brightness (cd/m2) |
500d/m2 |
|
Active display area |
1264(H)X738.4(V) |
|
Display Color (Max) |
1073.7M |
|
Viewing Angle(U/D,L/R) |
178°(H)/ 178°(V) |
|
System software |
|
|
System software |
Android 4.2.2 |
|
Network mode |
|
|
Lan |
10M/100M |
|
WIFI |
802.11g/n |
|
3G |
Need 3G module |
|
Support format |
|
|
Video format |
MPEG1\MPEG2\MPEG4\H.264\WMV\AVS, VC-1,RV, VP6/VP8, Sorenson Spark, MVC |
|
Audio format |
MP3 |
|
Image format |
JPG\JPEG\BMP\PNG\GIF |
|
Speaker |
|
|
Speaker |
2*5W |
|
Parameters |
|
|
CPU |
Dual Core ARM Cortex A9 1.5GHz |
|
GPU |
4*Core ARM Mali-400 MP |
|
Memory |
DDR3 1Gbyte |
|
SD card |
Max 32G |
|
USB interface |
USB2.0 * 1 |
|
Internal Storage |
FLASH 4G |
|
Audio output |
Stero CLASS-D, Support:8Ω 2x10W |
|
3G module interface |
PCIE*1; USB*1 |
|
WIFI |
WIFI(150Mbps)*1 |
|
Lan |
10/100M |
|
Video output |
VGA×1\HDMI×1 |
|
Audio output |
3.5mm Phone Jack |
|
Extensible interface |
Serial port * 1; SPI *1;Camera * 1;USB(for touch) * 1 |
|
Main function |
|
|
1080p decord |
|
|
Boot automatically play |
|
|
Image automatic stretch and tiled |
|
Support remote control command to the server sends the parsing and processing, including: breaking news, restart terminals, sleep, wake up, forced shutdown, time switch machine, set the volume, the application of the remote online upgrade, set the terminal download speed limit. |
|
RTC real-time clock |
|
|
On/off timer |
|
|
System upgrade(by network or USB) |
|
File encryption:Set by GTV tools and terminal. not playing without the key |
|
Horz/Verti mode |
|
|
Split screen:Video*1, Pic*1,Scrolling text*1,Logo*1,Date*1,Time*1,BG*1 |
|
Scrolling text:custom define font, color, size, speed |
|
Timing play |
|
|
Display the playlist from USB |
|
Update the playlist from USB |
|
Software manage 100 playlist |
|
Video, Picture flash shift |
|
|
26 kinds of patterns, transitions and conversion time ,set by the software |
|
Support multi language( chinese, english) |
|
Repeat mode |
|
|
Power off memory |
|
|
Basic Specification |
|
|
Operation |
Keyboard, Remote control, Net control |
|
Material |
Metal |
|
Color |
Silver frame, Black panel |
|
Technical Specification |
|
|
OSD language |
Simplify Chinese, English |
|
Horizontal Frequency |
20 ~ 82KHz(Anolog&Digital) |
|
Vertical Frequency |
55~75Hz |
|
Optimum Resolution |
1920x1080 at 60HZ |
|
Native Resolution |
1920x1080 at 60HZ |
|
POWER |
|
|
Power supply: |
AC 100~240V(+/-10%)/50-60Hz |
|
Power consumpiton: |
≤350W |
|
Stand-by: |
≤1W |
|
Operation/Sotrage |
|
|
Operating Temperature |
0 0 C~40 0 C |
|
Operating Humidity |
10%~90% |
|
Storage Temperature |
-20 0 C~60 0 C |
|
Storage Humidity |
0%~90% |
|
Safety and Ergonomics |
|
|
Quality standards: |
ISO9001,CCC,FCC,CE,ROHS |
|
Environmental standards: |
All components,accessories and packing are compliant with international standards. |
|
|
|
Optional Function |
|
|
IR body sensor |
GPRS function |
|
Synchronization function |
RFID function |
|
Serial Port module |
Camera |
|
Touch screen |
SPI function |
|
Software |
|
|
GTV |
|
|
Accessories |
|
|
Wall mount(or stand set) * 1 |
Remote control * 1 |
|
User manual *1 |
Power cord * 1 |
|
Mechanical Spec |
|
|
Hole for wall mount: |
/ |
|
NW/GW: |
38kg/43kg |
|
Dimension(W/O stand): |
1295*765*47mm |
|
Packing Dimension (1 pcs/ctn): |
1390*855*140mm |
|
Warranty |
|
|
13 months (LCD monitor and components) |
|
