| Prod Model: |
SD55LED-D-450-SA-53 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
450CD/M2 |
| Resolution: |
1920*1080 |
| Abutted Seam: |
5.3mm |
| LCD Panel Brand: |
Samsung |
| Type: |
TFT |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
16:9 |
| Feature: |
Support TV Function |
| Interface Type: |
VGA |
| Screen Size: |
55'', ≥28" |
Product Description

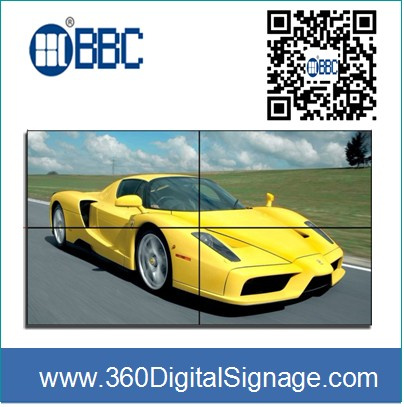

55'' HD Display Samsung LCD Video Wall With 5.3 Super Narrow Bezel
Product Description
55'' HD Display Samsung LCD Video Wall comes with ultra-narrow bezel design which is only 5.3mm, Samsung original LCD TFT panel. Adopt latest intensive LED back light, color reproduction is good, ultra-dense punctate distribution, backlight brightness uniformity. Super thin and narrow design, easy to install. With unique color correction technology, it makes the color more vivid. Long lifespan, stable operation, low maintenance cost.6ms fast respond time, the display screen is smooth.
|
Model |
SD55LED-D-450-SA-53 |
|
Panel Parameter |
Panel Type |
a-Si TFT-LCD |
|
Active Area |
1210(W)*680(H)(mm) |
|
Outline Size |
1215.3mm*686.1mm*99(mm) |
|
Aspect Ratio |
16: 09 |
|
Back Light |
LED |
|
Resolution |
1920*1080 |
|
Color |
16.7M(8bit) |
|
Brightness |
450cd/m2 |
|
Contrast Ratio |
3000 1 |
|
View Angle |
178 degree |
|
Respond Time |
< 6ms |
|
Life Span |
> 60000hrs |
|
Input/Output |
physical Seam |
5.3mm |
|
D-15 pin RGB Input(VGA) |
1 |
|
DVI |
1 |
|
HDMI |
1 |
|
YUV/YPbPR |
1(BNC*3) |
|
Composite Video Input/(AV) |
3(BNC*3) |
|
S-(YC) |
1(BNC*2) |
|
Composite Video Output |
2(BNC*2) |
|
Control Interface Input |
RS232(RJ45-8) |
|
Power supply |
Control Interface Output |
RS232(RJ45-8) |
|
Input |
AC100-240V 50/60Hz |
|
Operating Environment |
Power |
|
|
Operating Temperature |
0º C~50º C |
|
Other |
Operating/Storage humidity |
20%~80% |
|
Product Dimension |
1215*686*99(mm) |
|
Certification |
3C, CE, RoHS |
|
|
NW |
30.00kgs |
