| Prod Model: |
84"70"65" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
84" |
| Type: |
IPS |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
16:9 |
| Feature: |
With Remote Control |
| Interface Type: |
HDMI |
| Screen Size: |
84"70"65" |
Product Description
Specifications

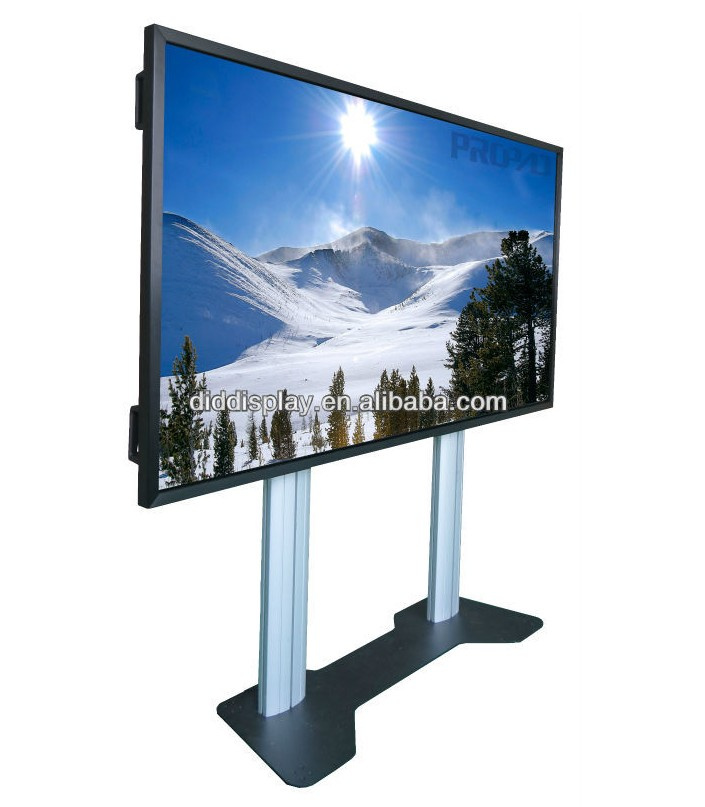

The newest ultra HD all in one touch LCD player
Point touch: More than 6 points
Certification: CE, RoHS, FC
LG IP
The newest ultra HD all in one touch LCD player
Big size
So far 84.44-inch screen is the largest single screen used in education and conference system. Yitelang-tech can supply 55-inch, 65-inch and 84-inch screen of touch
Ultra HD
Our company's HD panel with 84.44-inch and 4K*2K UHD from LG brand can reach 3840*2160 resolution ratio, truly realising 4K display.
Multitouch
1. Narrow side: Width 20mm, high 8.5mm.
2. Touch response time: 5ms, measured only 3ms.
3. Touch points: 6PT, 12PT, 32PT, infinite points.
4. The world's exclusive infrared touch can be USD outdoors.
Cloud platform
84-inch century panel via WiFi or wired connection to link any any online computer, while on the other side has been installing AIRSCREEN software as the prerequisite, and which agrees to the connection, at the same time transmit 1080P high-definition image and 5.1-channel sound sigle.
No PC
If install more than one AIRSCREEN drivers on the PC or server software, you can put all the PC and server sceen contents displayed on a screen, and also can touch and control any PC and server as you want.
|
Panel Parameters |
|
Screen size |
84.44inchs (2134.62mm) |
|
Dimension |
1904(h)*1096(v)*15.5(b)/ 24mm(d)(typ) |
|
Dot pitch |
0.4845mm*0.4845mm |
|
Resolution ratio |
3840*2160(4k HD) |
|
Display color |
10bit(d), 16.7million colors |
|
Brightness |
350cd/m2 |
|
Visual angle |
The wideangle(right/left 178min; up/down 178min) |
|
Engergy level |
1 |
|
Power |
The total power of 398w, 18w logic circuit, led driver module 380w |
|
Standby power |
0.50w |
|
Response time |
4.5ms |
|
Net weight |
42.9kg |
|
Display Mode |
Tranfer Mode, screen display mode |
|
surface treatment |
Hard coating(3h), front polarizing anti-glare treatment(haze10%) |
|
panel type |
Ips hard panel |
|
Backlight type |
the led light emitting diode |
|
LED back light |
Full led |
|
Tractor parameter |
|
L*w*t |
1931.4mm*1116mm*100m(most narrow 45mm) |
|
Installation |
The standard floor type, wall huang(optional)
Accessories and embedded fittings(optional) |
|
Ultra narrow side |
symmetrically ultra narrow dsign(front freme 30mm) |
|
Total weight |
161.2kg |
|
Package size |
1310mm*825mm*2240mm |
Shenzhen Yitelang-Tech Co., Ltd was founded in November, 2005, one of the most powerful and professional manufacturers in China. It is a high and new tech enterprise in Shenzhen. Eternal is located in the beautiful and elegant, convenient transportation of Youxinda industrial park of Guangming new disturict in Shenzhen, our factory covers an area of 50000 square meters, and now we have more than 300 employees, which is a production\ research\ development\ sales as one integrated high-tech enterprises.
Since the establishment of the company, focus on LCD products, application of touch and R&D technology, application in various commercial display and promotion work, especially in the field of liquid crystal display, the company has been formed to "PROPAD" brand, digital signage and advertising products covering various public sites. Series of products and services to enterprises of all types of multimedia conference systems.
Yitelang-Tech continues to strengthen corporate governance, constantly improve technical level, constantly in pursuit of independent innovation, company's existing products: 84 inch 4k multimedia interactive intelligent integrated machine\single version\network version\ advertising machine\LCD touch all-in-one PC\vehicle display terminal\interactive entertainment desktop etc. Every year eternal researches with the United States silicon valley partnership and famous universities from China and abroad scholars. Join hands in strength, keep the company technology at the forefront of technology development.
