| Prod Model: |
DB5015B12H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50*50*15mm |
| Volt: |
5V/12V |
| Bearing Type: |
Two Ball or Sleeve Are Available |
| Power Supply: |
Electric |
| Application: |
Industrial |
| Timer: |
Without Timer |
| Speed: |
1 Speed |
| Type: |
Centrifugal Fan |
| Power: |
Low Power Consumption |
Product Description

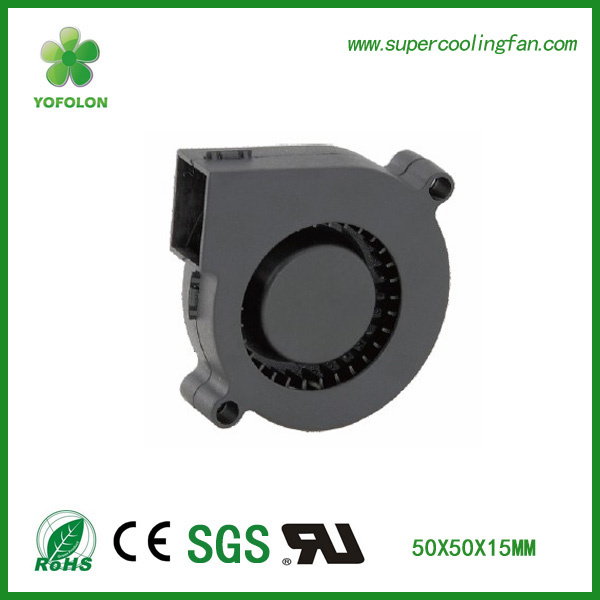

Centrifugal Blower:
DB5015B12H
Bearing: Two Ball
Voltage: 12 V
Current; 0.08-0.30A
Power: 0.96-4.2W
Speed: 3500-4500 RPM
Air flow: 3.17-4.36 CFM
Pressure: 5.5-9.1 mmH2O
Noise: 29.92-34.57 dB(A)
Weight: 25G
Special function: Auto start, LED, Temp. Control, waterproof, anti-fire.
High quality aluminum alloy, anti-corrosive and moisture proof structure
Impeller: UL94V-0 70% PBT+30%FRP
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance 100MΩ Higher
Dielectric strength: 0.5mA 1500V AC/min.
Reinforced plastic or Customize design
