| Prod Model: |
5020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50X50X20mm |
| Bearing Type: |
Ball Bearing or Sleeve Bearing |
| Rated Voltage: |
5V 12V 24V |
| Current: |
0.08-0.30A |
| Speed: |
4000-5500rpm |
| Air Flow: |
12.98-15.76cfm |
| Static Pressure: |
2.68-4.68mmh2o |
| Noise Level: |
26-33dba |
| Weight: |
30.00g |
| Lead Wire: |
2wires/3wires/4wires |

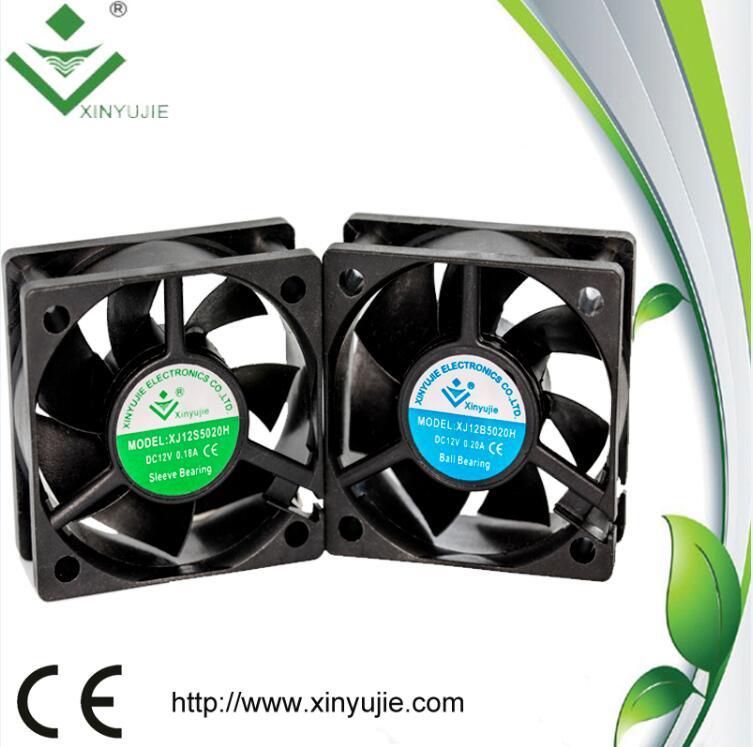

Product Description
Specifications:
1.Dimension:50x50x20mm dc fan
2.Rated voltage: 5v 12v 24v
3.Ball bearing
4.OEM&ODM
5.2000000pcs monthly
Model | Rated voltage
(VDC) | Startup voltage
(VDC) | Current
(A) | Speed
(RPM) | Air flow
(CFM) | Static pressure
(mmH2O) | Noise level(dBA) | Weight
(G) |
| XYJ05(X)5020H | 5 | 3.5 | 0.30 | 5500 | 15.76 | 4.68 | 33 | 30.00 |
| XYJ05(X)5020M | 5 | 3.5 | 0.25 | 5000 | 14.39 | 3.73 | 29 | 30.00 |
| XYJ05(X)5020L | 5 | 3.5 | 0.18 | 4000 | 12.98 | 2.68 | 26 | 30.00 |
| XYJ12(X)5020H | 12 | 6 | 0.20 | 5500 | 15.76 | 4.68 | 33 | 30.00 |
| XYJ12(X)5020M | 12 | 6 | 0.15 | 5000 | 14.39 | 3.73 | 29 | 30.00 |
| XYJ12(X)5020L | 12 | 6 | 0.11 | 4000 | 12.98 | 2.68 | 26 | 30.00 |
| XYJ24(X)5020H | 24 | 12 | 0.12 | 5500 | 15.76 | 4.68 | 33 | 30.00 |
| XYJ24(X)5020M | 24 | 12 | 0.10 | 5000 | 14.39 | 3.73 | 29 | 30.00 |
| XYJ24(X)5020L | 24 | 12 | 0.08 | 4000 | 12.98 | 2.68 | 26 | 30.00 |
| Note: (X) may be B or S, B means ball bearing and S means sleeve bearing |
The main advantage of our fan:
1.Reliable quality & Competitive price
2.Large air flow & long life expectancy
3.High speed & large air flow
4.Low noise & high efficiency
5.Ball bearing or sleeve bearing optional
6.Good after-sales services
Using environment:
Operating voltage | 4.5v~5.5v/10.2v~13.8v/20.4~27.6v |
| Operating temperature/humidity | -10ºC~70ºC 35%~85%RH |
| Storage temperature/humidity | -40ºC~80ºC 35%~85%RH |
Packaging details:
Two layer packaging, pcs/CTN
Packaging size:
43*28*43CM
Lead time:
1. Samples within 4 days
2. Mass production within 7-10 days
3. If do the waterproof fan need 1 week more
Optional functions:
-1. Waterproof function with IP55 or IP67 level
-2.Auto-restart function
-3.Stopage Alarm function(RD function with 3 lead wires)
-4.Speed detection function( FG function with 3 lead wires)
-5.Temperature control speed function(PWM function with 4 lead wires)
Optional bearing types:
-1.Sleeve bearing(lower price):The sleeve was inported from Germany with stalbe performance and easy installation
-2.Ball bearing(high price):we use the NSK ball which is imported from Japan,it is charactered with high quality,low noise level and easy installation.
Guarantee:
-3 years warranty for ball bearing fans
-1 year warranty for sleeve bearing fans
Service:
-OEM service based on MOQ1000pcs;
-Ordinary material and waterproof material optional;
-Best quality cooling fans produced by ourselves;
-Best service by our sales and engineers;
-All can be customized.
Question & answer:
-1. What kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.
-2. What information should be provided by the customer before order?
Answer : please kindly advise Size, Rated voltage, Bearing type, Speed or air
flow,Lead wires.
-3. How many kind of bearing types of our cooling fan are there in our compnay at present?
Answer : now we have two types bearing for the fan, sleeve bearing and ball bearing.
-4. How to detect the data of cooing fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by
wind tunnel.
-5. How to control the quality of products in your company.
Answer: 100% total testing before each fan dispatched
