5000lph Reverse Osmosis Water Purification Machine/Water Purifying System

5000lph Reverse Osmosis Water Purification Machine/Water Purifying System
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: RO-1000I
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Motive Force: Electric power
Type: Reverse Osmosis
Usage: Environmental Protection
Tank Material: FRP

Product Description

Scope of application
RO pure water apparatus can used as core department of water plant,
it can be used as water treatment apparatus in the field of food, drink,
chemical, pharmacy, semiconductor, electronics and so on.


Specification

Model:RO-1000I(5000L/H)
Capacity of pure water:5000L/H
General power:12.5KW
Electrical power:AC380V/50Hz  25A
RO membranes:ESPA8040  9 items(2 grades)
Multi-phases pump:CDL 8-16 /5.5KW 1 item
CDL4-22/4.0KW    1 item
Beforehand filter:1000×1800×δ3.0   2 items
PP sediment membranes filter:400×1000×δ1.5 1 item
Booster pump:CHL16-30/3.0KW    1 item
Quartz sand filter:1500kg
Active carbon filter:500kg



Functions of the machine:

 RO membranes auto wash and manual wash
 Pure water high water level auto stop, low water level auto start
 Multi-phases pump protected without water
 Protected when no power, poor power, larger electrical current short circuit,  creepage of  electricity



Procedure function
 Quartz sand filter
This filter just do simple filtration of raw water, mainly leaching sediment and residue in raw water. When inlet pressure is 10Psi(0.7kg/cm2)higher than outlet pressure or outlet water SDI>5, backwash the machine. Generally, backwash once before start and stop everyday.

Active carbon filter
active carbon is a good adsorbent, is make of charcoal, kinds of shell, and high quality coal , through chemical or physical activation. It has lots of micro hole s and huge specific surface area so that it has very strong adsorptive capacity, can absorb organic substances effectually, mainly get rid of organic toxin, chlorine residue, smell, and color. Since chlorine residue will decompose the RO membrane, Shorten RO membrane's life so this filter mainly used to absorb the chlorine residue, make the content of chlorine residue in raw water ≤0.1mg/l, protect the RO membrane from damaged. Changing the active carbon according to the content of chlorine residue in the water. Generally speaking, backwash once a day.

 PP sediment filter
In water treatment, the PP sediment filter mainly used to get rid of the small-molecule substances, satisfying the next procedure's demand of water. It's characteristics: get rid of  the suspended substances, rust; can bear high pressure; Unique deeper net hole structure makes the PP filter bear ?? ability. Filter can make by different material to fit to different fluid. Small volume, big filtering area, small resistance, and long life. Place it before multi-phases pump can stop the active carbon particle , protect the RO membranes and the multi-phases pump from damaged.

Reverse Osmosis system
Reverse Osmosis system adopt barrier separation method to wipe off ion, organic substances, colloidal particle, bacteria and so on, make the raw water desalted. The theory is that solvent in strong solution through RO membrane to the dilute solution under ambient pressure. Inlet water pressure ,temperature, PH value and salinity can affect the RO membrane's function. Original water under enough pressure goes through the RO membrane and becomes pure water, and the rest is waste water. Reverse osmosis system made by this theory

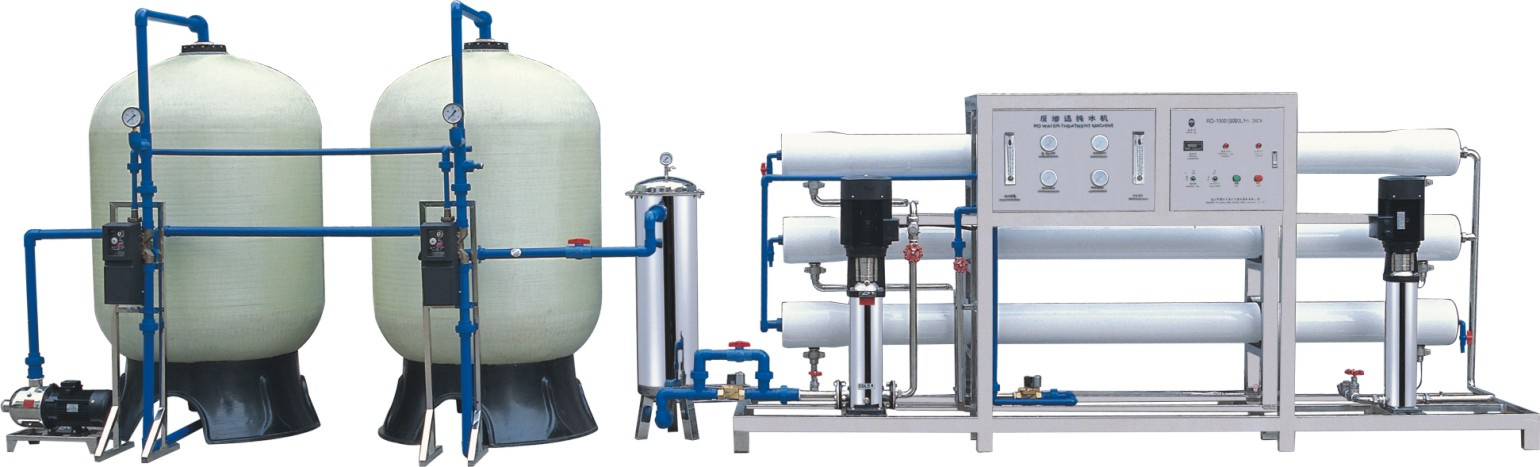

Machine photo

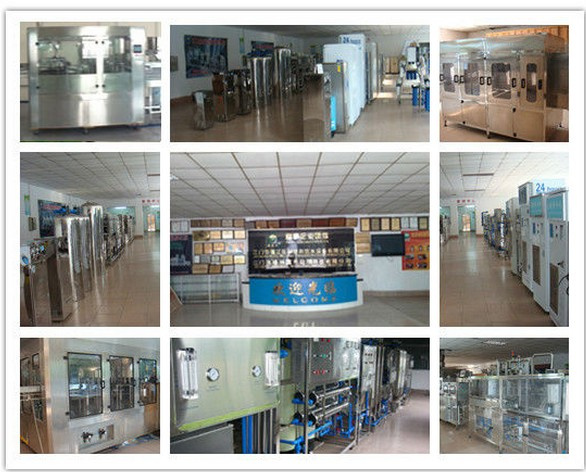

Factory show



Standard exporting packing way

JIANGMEN GREENFALL WATER TREATMENT TECHNOLOGY Co., Ltd Located in China's first overseas Chinese of JIANGMEN. Since 1996 the company since its establishment, our factory purpose is improve water quality, benefit of humanity, fervor-self, contributing to society.

Our factory manufacture complete water plant equipment. Include injection machine, blowing bottle machine, water treatment equipment, ozone system,

Filling machine, labeling machine, packing machine and palletizer etc.

As one of the leading manufacturers in drinking water treatment and bottled water engineering (covering water dispensers) in China, we are pursuing good reputation in the global market also. Our products are selling well in Canada, French, USA, Japan, Korean, Russia and Indonesia. And we have more customers from USA, Mexico, Ecuador, Australia, Singapore, Thailand and Brunei. We have a good beginning in most of African countries.

The main products of the company

1, 2000BPH---20000BPH hot liquid filling, middle temperature beverage production line

2, 2000BPH---36000BPH Mineral water and purify water production line

3, 2000BPH---20000BPH Gas beverage production line(PET, glass bottle)

4, 2000BPH---12000BPH Glass bottle wine complete production line

5, 2000BPH---20000BPH Pulp beverage mixed filling machine

6, 60BPH---1200BPH barrel mineral water, purify water production line

Plastic injection machine, Blowing bottle machine, Mould etc

Bottle unscrambler, Labeling machine, Shrink packaging machine, etc

Ozone system, ultraviolet sterilization system, air shower, laboratory equipment etc

Purified Water Treatment Equipment, Mineral Water Treatment Equipment, Seawater treatment Equipment, Brackish Water Treatment Equipment, etc.

Providing "Quality Products, Excellent Service, Competitive Prices and Prompt Delivery", we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. If you are interested in our products, please feel free to contact us for more information.
