| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Size: |
50inch |
| Power Source: |
Electric |
| Type: |
Ventilation |
| Usage: |
Livestoc and Poultry House, Workshop, Greenhouse |
Product Description

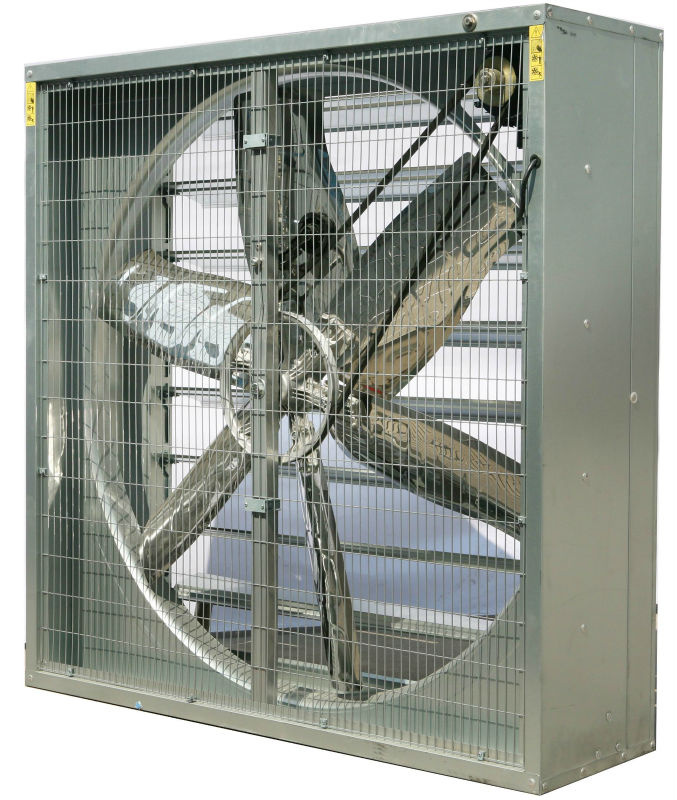

50" Drop Hammer Fan, fan bearing adopts imported double-row bearing with special waterproof design, water can't enter. High strength, lower noise, maintenance tree and long severice life.
50" Drop Hammer Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete, high corrision resistance. Special three reinforced ribs pulley design. Blast sanding treatment for attactive appearance, eliminate internal stress to improve its own rigidity and stability.
Motor have domestic brand and Siemens motor can be chosen. Motor voltage and frequency can be customized. Doestic brand motor joining open phase protection device. When the lack of power, can carry out their own power to control. Motor protection grade IP 55, insulation classe: F.
Fan blade is made of stainless steel by punch forming, nodust, attractive and durable. Special blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.
The Hammer using high strength nylon pendulum opening device, shutters opening and closing flexible stabilization.
The belt tensioner using the most advanced automatic to ensure working efficiency and good performance.
SHM Drop Hammer Style Ventilator |
Model |
Dia
blade/mm |
Frequency/ HZ |
Air volume/ m3/h |
Power/kw |
Noise(db) |
Voltage/v |
Size (mm) |
Motor Speed(r/min) |
SHM-
900 |
750 |
50 |
30000 |
0.55 |
≤64 |
380 |
900x900x400 |
≥1400
|
SHM-
1000 |
900 |
50 |
32500 |
0.75 |
≤64 |
380 |
1000x1000x400 |
≥1400
|
|
SHM-1100 |
1000 |
50 |
38000 |
0.75 |
≤64 |
380 |
1100x1100x 400 |
≥1400
|
|
SHM-1380 |
1250 |
50 |
44000 |
1.1 |
≤64 |
380 |
1380x1380x400 |
≥1400
|
|
SHM-1530 |
1400 |
50 |
55800 |
1.5 |
≤64 |
380 |
1530x1530x400 |
≥1400
|
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
