5" String Wound Cartridge for Water Purifier

Price:	US $ 0.28-3/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	MKSW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Filter Media:	Polypropylene
Size:	OEM
Micron Rating Nominal:	0.5 Micron to 150 Micron
Length:	Optional
Od:	Optional
ID:	Optional
Temperature Range:	4.4degree to 120degree
Max.Operating Temperature:	120degree
Max.Pressure Drop:	46.4psi
Max.Flow:	2-8gpm
Type:	Ozone Water Purifier
Usage:	Chemical Industry
Motive Force:	Pressure

Product Description

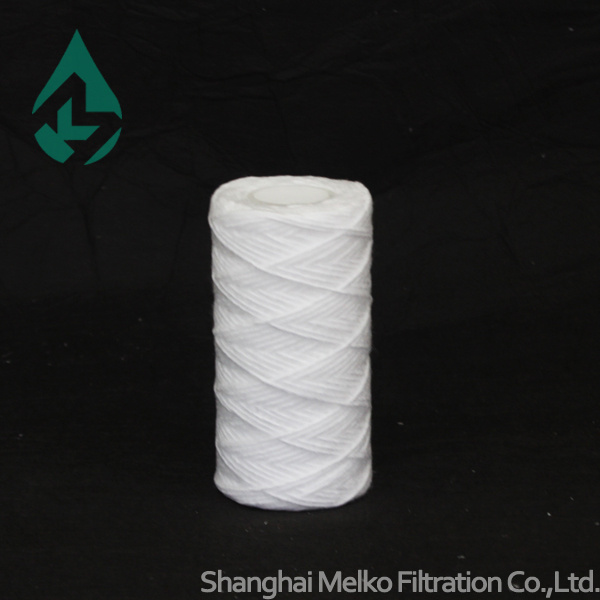

5 inch String Wound water filter cartridge

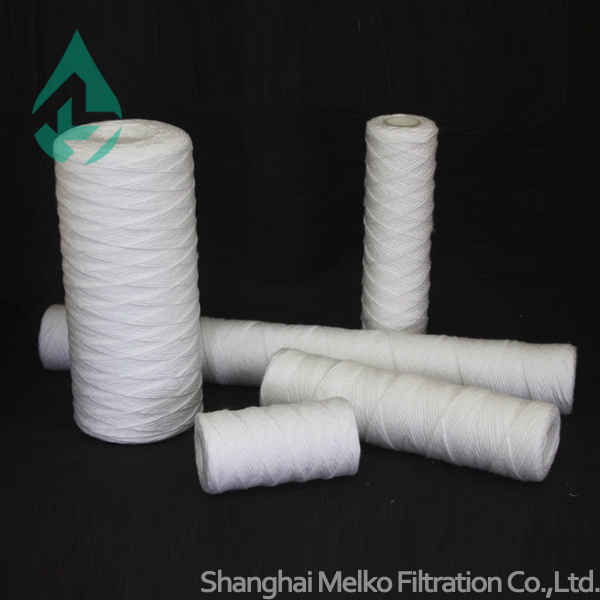

Melko MKSW is a string wound type cartridge, constructed with polypropylene, provides superb chemical compatibility and high dirt-holding capacity. Our wound cartridge filters reject particles from as low as 0.5micron to 150 micron. They are available in lengths ranging from 5"to 40". A variety of specification available to meet specific configurations and filtration needs.

Feature:
l  True depth filtration with great dirt-holding capacity
l  Withstand temperatures up to 120ºC
l  Wide range of Chemical and Temperature compatibility
l  Longer Service Life for more cost effective filtration
l  Various Core and Material Combinations
l  Wide Choices of Porosities, Lengths and Diameters

Application:
l  Pre-treatment of drinking water system
l  Oil removal industry
l  Food and beverages
l  Photographic industry
l  Pharmaceutical
l  Pre-treatment of industrial DI&RO system
l  Electronics/Plating

Specification:

Micron Rating(μm)	0.5-100
Dimensions	Length(mm)	O.D(mm)	I.D(mm)
	Optional	Optional	Optional
Materials	Media	Core	End Cap	Gasket/O-Ring
	Polypropylene	Polypropylene/Stainless Steel	Polypropylene	EPDM,Silicon
Temperature Range	4.4ºC to 120 ºC

Packaging & Shipping:
Packaging:
1.      Products are packed by shrink film. It can reduce abrasion when transport.
2.      Products are packed by high quality carton, suitable for long distance ocean freight transportation as well as changing climate and with good resistance to moisture and shocks.
Delivery time:
1.      If this kind of products is in stock, the product will be sent for you 1-7days after payment.
2.      If this kind of products is not in stock, the products will take about 7-25 days to produce.
Shipping:
Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)

Contacts:
If you have interest in any kind of our product, warmly welcome your inquiry. We will supply our best quality products and service for you.

Mobile: +8613818972204
Tel:  +86-021-57600791*816
Fax:  +86-021-57600792

About Melko

Shanghai Melko Filtration Co., Ltd (Melko) is located at Songjiang, Shanghai and the whole area of our manufacturer occupies more than 3000 square meters.

Melko is a professional enterprise specialized in designing and manufacturing all kinds of water filters such as melt blown filter cartridges, string wound filter cartridges, carbon block filter cartridges, pleated filter cartridges, filter cartridges fill with granular activated carbon and micron pleated filter cartridges and so on, we can manufacture filters with all kinds of specifications that customers require. Currently we have 6 melt blow filter cartridge production lines and 10 other filter cartridge production lines for other filter cartridges and our expected annual output is more than 5 millions filter cartridges.

Melko products are created with imagination, precision and a love of detail for customers who are eager to experience fast, clean, safe and stylish water filtration and we also have our own research and development department to make our products more better and sale department to sell our products directly in order to save more cost and lower price for our customers. Since our company established, we place our customers' interest above everything and our goal is to provide the best products and services to our customers.
