| Prod Model: |
CH500WQ03 |
| Markets: |
North America,Oceania,Western Europe |
| Module Size: |
120.7(W) X 75.2h) X 3.1(D) (Mm) |
| Active Area: |
110.88(H) X 62.832(V) (Mm) |
| Resolution: |
480X272 Dots |
| Display Mode: |
Positive/Transmissive |
| Driver IC: |
Ili6482 |
| Product Name: |
5 Inch TFT LCD Module |
| Type: |
TFT |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Widescreen: |
Not Widescreen |
| Feature: |
LED Backlight Display |
| Screen Size: |
≤17" |
| Response Time: |
25ms |
| 3D: |
Not 3D |
| Interface Type: |
24 Bit RGB |
Product Description

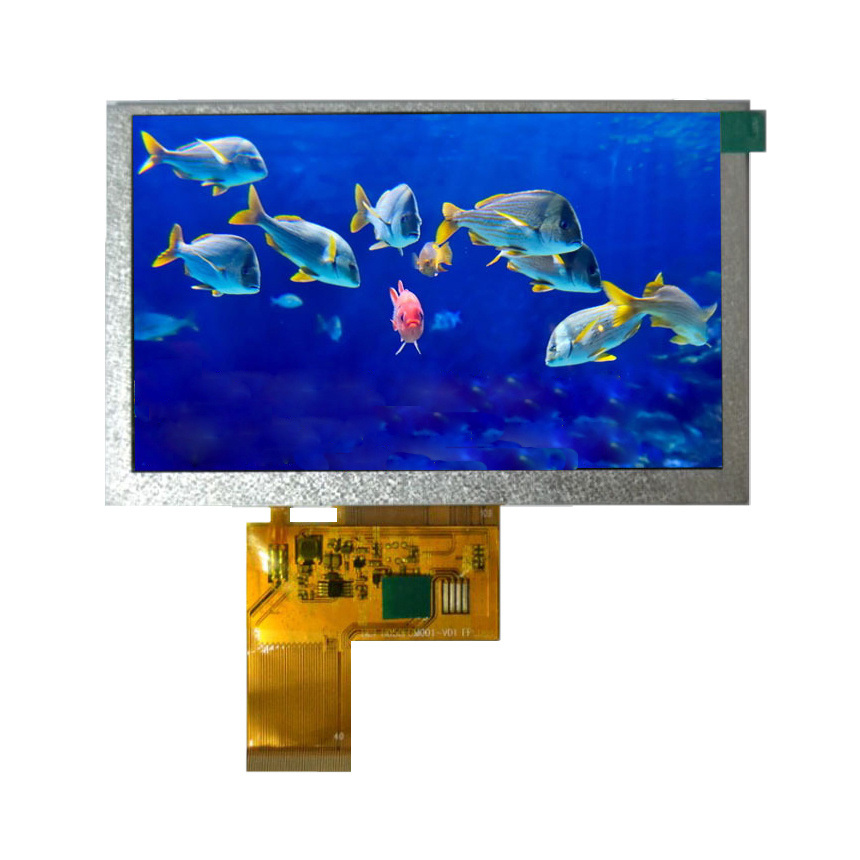

5 inch 480x272 Dots TFT LCD Module Specifications:
Item:
5 inch TFT LCD Module
Model No:
CH500WQ03
Display Mode:
Normally White,Transmissive
Resolution:
480 x3 RGB x272
Crystal:
a-Si TFT active matrix
Dot Pitch(mm):
0.231(H) x 0.231(V)
Color Filter Array:
R.G.B. Vertical Stripe
Outline Dimensions:(mm)
120.8(W)x75.85(H)x4.2(D)
View Area(mm):
110.88(W)x62.832(H)
Interface:
RGB 24Bit
View Direction:
6 O'clock
Touch Panel:
Optional
No of LED:
10 pcs
No of colors:
16.7M color
Working temperature:
-20~70°C
Storage Temperature:
-30~+80°C
We have other sizes of TFT LCDs from 2.8 inch to 10.1 inch for your selction. Contact us Now!
Drawing & Specs
Company Information
Lummax Electronics Co., Ltd. was establishedin May 2004. We are specialized in R&D, production and sales of LCD panel, LCD module, TFT LCD module, and resistive & capacitive touch panel products.
Lummax has 8,000 square meters of workshop and 7,000 square meters of dormitory. Its total investment is up to USD 5 million. We have 620 employees, 15 R&D staff and 40 QC personnel.
In line with quality management standardization, the company sets up quality management system in accordance with ISO9001:2008 international quality management system; In April 2013, we passed the TUV(SUD) certification and obtained ISO9001:2008 certificate.
Our major customers include: EMERSON, SIEMENS, JABIL, WKK and ASTROTECH GROUP etc. In the year of 2013, our annual turnover has exceeded 40 million US dollars.
We welcome all your LCD panel, LCD module and touch screen inquiries.
We will offer best price, fast delivery and good quality to all of our customers.
Our Services
Sample leadtime: 10 days;
Mass production leadtime: 30 days.
100% product testing and inspection before shipment.
100% free replacement for defective products.
Lummax Electronics Co., Ltd is a high-tech manufacturer specialized in the manufacturing of LCD panel, LCD module in China.
We produce LCD panels of TN, HTN, STN, FSTN type and LCM (including touch panels), among which most are customized.
Lummax Electronics Co., Ltd has total 400 employees, among them 15 R&D staff and 40 QC personnel. Our production plant occupies a total area of 8, 000 square meters. We are equipped with an advanced full-automatic LCD production line and several precision COG, COB and TAB production lines. We are able to meet all demands from our customers in booming seasons and ensure timely deliveries.
Our products have been widely used in the fields of instruments, meters, home appliances, telecommunications, industrial equipments, vehicle electronics and digital display clocks, etc.
We attach great importance to improving product technology and continuously improve product quality. We are also an ISO9001 certified company!
Send your inquiries now for product details and the most competitive price!
