| Prod Model: |
BR-TM5001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China |
| Car Make: |
All Vehicle, All Vehicle |
| Brand Name: |
Brvision |
| Warranty: |
12 Months |
| Power: |
5W |
| Voltage: |
DC 24V |
| Operation Mode: |
Remote Control, OSD Menu |
| Operation Temperature: |
-20°c-+70°c |
| Connector: |
4 Pin or RCA |
| Type: |
LCD Monitor |
| Color: |
Color |
| HDMI Format: |
720P |
| Feature: |
With Remote Control |
| Certification: |
ISO9001: 2000 |
| Interface Type: |
VGA |
| Horizontal Resolution: |
420tvl |
| Screen: |
General Screen |
| Scanning: |
Line by Line Scan |
| Material: |
LCD |
| Sensor: |
CCD |
| Size: |
5" |
| Application: |
Reverse View |
Product Description

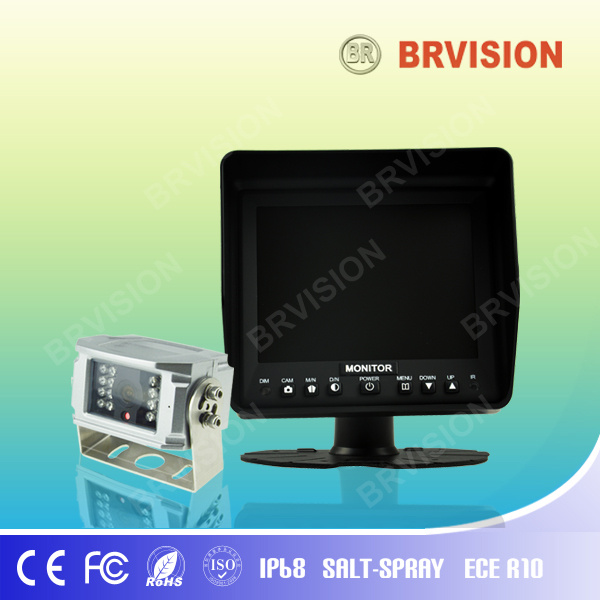

5-Inch Digital LCD Monitor for Heavy Duty Reversing
Monitor Specifications:
. Screen size: 5-inch Digital panel (16:9)
. Input: 2-way video input
. System: PAL and NTSC switching
. Resolution: 640 x R.G.B x 480
. Power supply: 12-24V DC
. Bui lt-in speaker
. Heavy duty reversing
. Remote control, OSD menu
. contrast, color, brightness adjustable
. Three video input with 3 trigger cable.
. Operating temperature: -20° to +70°
. Storage temperature: -30° to +80°
| Screen size | 5 inch |
| Resolution | 800*480*RGB |
| System | PAL/NTSC automatically |
| Audio and video | 4 video/1audio input Quad images,2/3/4 image optional |
| OSD menu | Language,brightness, contrast, trigger priority delay display setting |
| Luminance | 250cd/SM |
| Working temperature | -20°C-+70°C |
| Storage temperature | -30°C-+80°C |
| Voltage | 12V-24V DC |
| Connector | 4 pin or RCA |
| Accessories | user manual/remote controller/powr calbe/sunshade/scre |
Collocation:
| Aluminum Shell Backup Waterproof Camera |
| Image Type: 1/3 Inch Color CCD |
| Horizontal Resolution:720TV Lines |
| NTSC:976(H)×494(V) PAL:976(H)x582(V) |
| Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: 100% Waterproof IP69K Rating |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional) |
| Power supply:DC12V (from Reversing Monitor) |
| Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting) |
| Weight Approx: 179g |
