| Prod Model: |
TM160407B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
5.8 Inch(Panel Diagonal) |
| Display Area (mm): |
116.16(W)×87.12(H) |
| Number Of Pixels: |
1024X(R,G,B)X768 |
| Pixel Pitch (mm): |
0.1155 (W) 0.1155(H) |
| Color Pixel Arrangement: |
RGB Vertical Stripe |
| Display Mode: |
Normally White |
| Response Time (Tr+TF): |
20ms |
| Screen Size: |
≤17" |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
4:3 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1024x768 |
| Type: |
TN |
| Widescreen: |
Not Widescreen |
| Response Time: |
2ms |
| 3D: |
Not 3D |
| Interface Type: |
HDMI |
Product Description

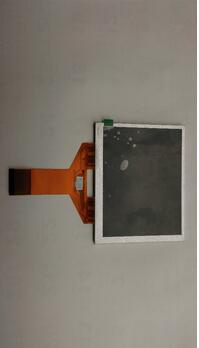

5.8 inch 1024*768 high resolution lcd display
Panel Size |
5.8 inch(panel diagonal) |
Display Area (mm) |
116.16(W)×87.12(H) |
Number of Pixels |
1024x(R,G,B)x768 |
Pixel Pitch (mm) |
0.1155 (W) 0.1155(H) |
Color Pixel Arrangement |
RGB vertical stripe |
Display Mode |
Normally white |
Number of colors |
262,144 |
Viewing Direction |
6 o´clock |
Response Time (Tr+Tf) |
20ms |
Brightness(cd/m2) |
300 |
Viewing Angle |
140 degree(H),120degree(V) |
Electrical Interface(data) |
LVDS |
Power consumption(W) |
2.1W |
Outline Dimension(in mm) |
127.23(W)x99.41(H)x1.43(D) |
Weight(g) |
110g |
BL unit |
LED |
Surface Treament |
Anti-Glare,Hardness:3H |
Suzhou Tomy Optronics Co., Ltd (TOMY) established in 2010, specializes in the design, development, production, sales and services of state-of-the-art liquid crystal display modules and related electronic products.
TOMY mainly produces thousandds of types of standard or customized TN, STN, color STN and TFT-LCM products. Application of our products include: Instruments, office equipments, messages, telecommunications, home appliances as well as automotives.
Our TOMY Optronics Is a professional LCD manufacturer with 19 years' Experience. Our production equipment and technology brought in from Japan. TOMY is equipped with a young and highly qualified management and technology team dominated by postgraduate students. This guarantees that TOMY will take the lead in its industry.
TOMY has passed ISO 9001, ISO 14001, TS 16949 certifications as well as RoHS and REACH certification. TOMY is confident and determined to overcome endless challenges to become the best small-to medium sized display customization company.
