| Prod Model: |
CS068C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Backlight: |
LED |
| Brightness: |
250CD/M2 |
| Color Standard: |
PAL/NTSC Auto |
| Screen: |
TFT LCD Screen |
| Screen Ratio: |
4:3 |
| Resolution: |
960(H)×234(V) |
| Power Supply: |
DC 24V |
| Product Dimension: |
175mm (L)×147mm (W)×101mm (H) |
| Power Consumption: |
Less Than 5 W |
| Net Weight: |
580g |
| Definition: |
420TVL |
Product Description
Specifications

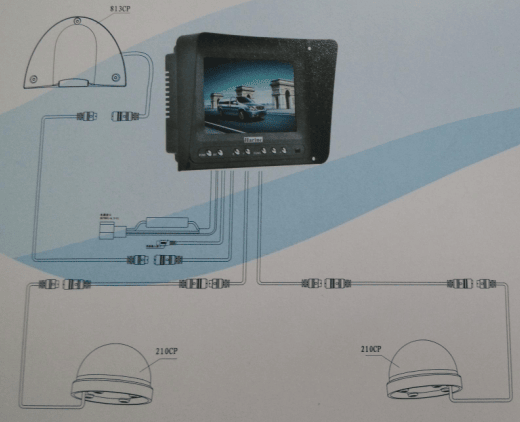

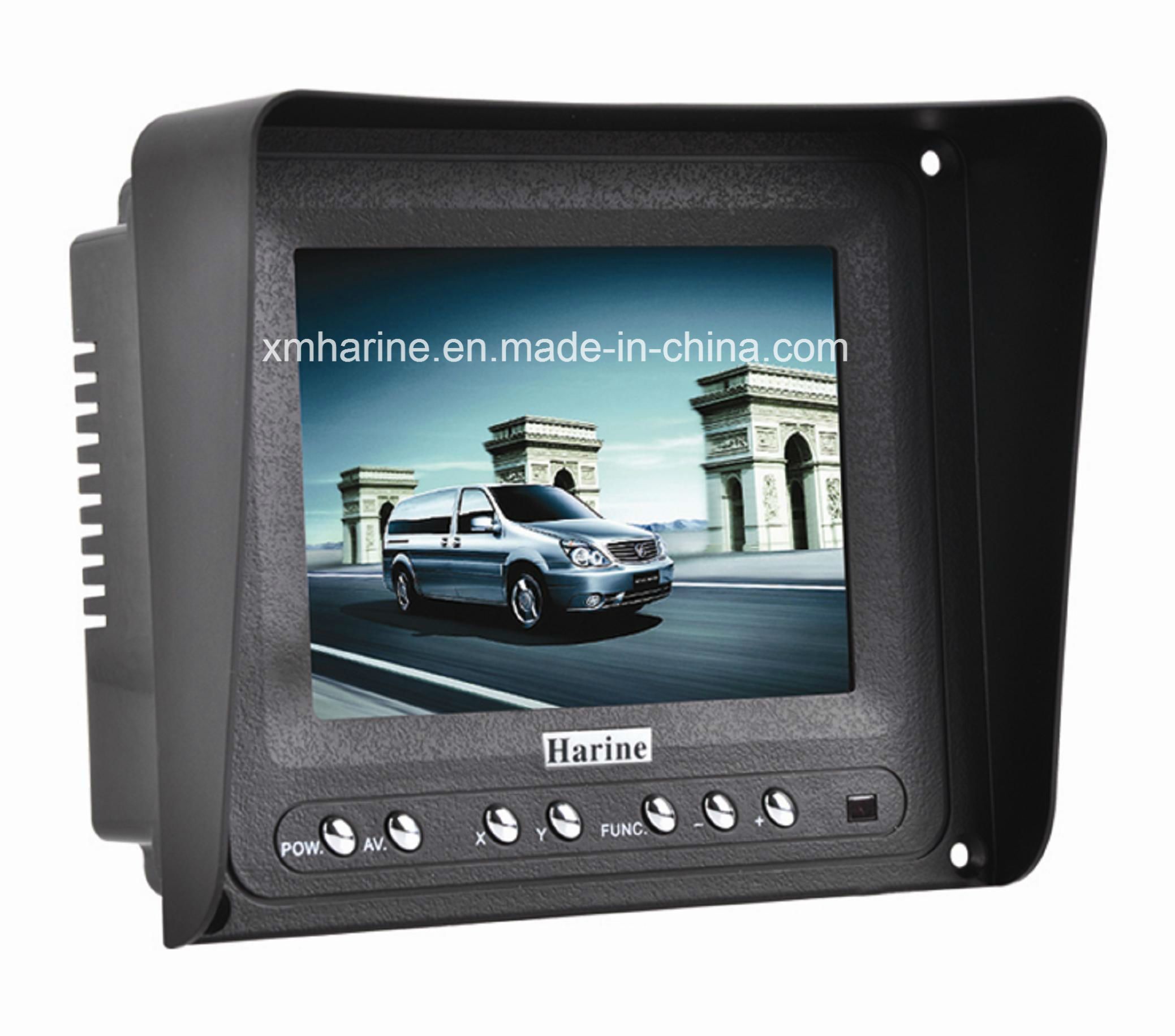

Rear view camera and 5.6 inch LCD Monitor, which is suitable for the field of reversing ,security . Technical information: | Item | Specification |
| Screen Size | 5.6 inch |
| Screen | TFT LCD screen |
| Screen Ratio | 4:3 |
| Resolution | 960(H)×234(V) |
| Contrast | 300:1 |
| Brightness | 250cd/m |
| View Angle | V:100/H:120 |
| Light Source | LED |
| Color System | PAL/NTSC |
| Video Input | 1VP-P 75Ω (two way) |
| Image Inversion | U/D L/R;manual(optional) |
| Interface | RCA, Aviation plug |
| Power Supply | DC 24V |
| Product Dimension | 175mm (L)×147mm (W)×101mm (H) |
| Net Weight(monitor) | 580g |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~85 |
| Power Consumption | less than 5 W |
Feature:
1.3-CH video input(4CH- max)
2.Automatically switch to the rear-view camera when reversing
3.Brightness, contrast and chroma can be adjusted by key-press
4.Wide range of power supply
5.Isolated power supply,hight anti-interference
6.Vehicle disturb shielding line and RS765-4plug for signal transmit
Our company information :
Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .
With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.
Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.
We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark approved.
