| Prod Model: |
TM056KDH01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolotion: |
320X240 |
| Luminance: |
200CD/M2 |
| Contrast Ratio: |
300:1 |
| Usage: |
Small-sized LCM |
| Touch Screen Type: |
Capacitive |
| Type: |
LCM |
| Response Time: |
25ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
TFT LCD |
Product Description
Brand: TIANMA
HS: 8528511000

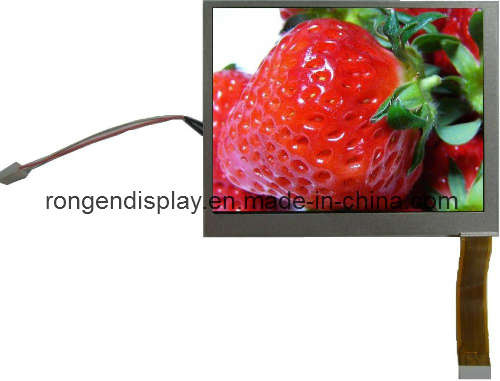

Spc: TM056KDH01 5.6inch TFT LCD screens 320x234 200CD/m2 4: 3
Specification:
Item No.: TM056KDH01
Screen Size: 5.6inch
Resolution: 320x230
Luminance: 200CD/m2
Aspect Ratio: 4: 3
Contrast Ratio: 300: 1(Typ. )
Active Area: 101.568*76.176
Response time(ms): 10/15(yp. )(Tr+Td)
Viewing Angle: T/B/L/R 50/70/70/70
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -20 ~ 70 ° C
