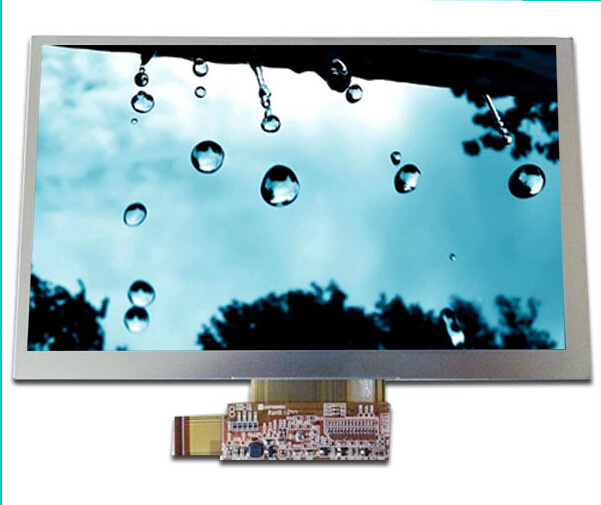

5.6" LCD Panel Small TFT Analog Display TM056kdh01 Tianma
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TM056KDH01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 320X234: |
5.6 Inch |
| Aspect Ratio: |
5:4 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Screen Size: |
5.6 Inch |
| Application: |
Industry and Medical |
| Optimum Resolution: |
320X234 |
Product Description
Quick Details
Place of Origin: |
Shanghai China (Mainland) |
Brand Name: |
Tianma |
Model Number: |
TM056KDH01 |
Type: |
TFT |
Brightness: |
200 cd/m2 |
Resolution (pixel): |
320(RGB) x 234 |
TM056KDH01 Size: |
5.6 inch |
Pixel Pitch (mm): |
0.354 x 0.362 |
Viewing Angle (R/L/U/L): |
65/65/45/65 |
Light Source: |
LED |
Contrast Ratio: |
300:1 |
Interface: |
Analog RGB |
Operate temperature: |
-20 to +70°C |
Weight: |
123.0g (Typ.) |
Packaging & Delivery
Packaging Detail: | TM056KDH01 Tianma original package; 50 pcs/carton; Carton size: 530x350x250 mm; Gross weight: 10.09 Kgs. |
| Delivery Detail: | 2-14 working days |
Specifications
tm056kdh01 tianma
1)Lower price
2)Inversion show 360 degree
3)LED backlight
4)Ideal for Video Door bell
Tianma 5.6 inch tft lcd display analog panel 320x234 tm056kdh01 tianma :
Advantages:
1)Special for Video Door bell, digital photo frame and portable dvd;
2)Surface anti-glare;
3)Original guarantee;
4)Competitive prices;
5)Offer 12 months of warranty;
6)Original technology support.
Model |
TM056KDH01 |
Size | 5.6" |
| Resolution (pixel) |
320(RGB) x 234 |
Active Area(mm) |
113.280 x 84.708 |
Pixel Pitch (mm) |
0.118 x 0.362 |
Display Mode |
TM with Normally White |
Uniformity(%) |
80 |
NTSC(%) |
50 |
Color Depth |
Full color |
Viewing Angle (R/L/U/L) |
45/65/65/65 |
Brightness (cd/m²) | 200 |
| Contrast Ratio | 300:1 |
| Response Time (ms) | 25(on+off) |
| Outline Dimension (mm) |
126.50 x 100.00 x 5.70 |
Weight (g) |
123(net) |
Light Source |
LED |
Temperature Range |
operating: -20 to +70°C
storage: -30 to +80 °C |
Humidity |
operation: 90 (%RH)
storage: 90 (%RH) |
Surface Treatment |
Anti-Glare |
Electrical Interface |
Analog RGB |
ROHS Compliance |
ROHS Compliance |
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
