| Prod Model: |
RVC15&TM5601 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
5.6 Inch Digital Panel (16:9) |
| Input: |
2-Way Video Input |
| System: |
PAL and NTSC Switching |
| Resolution: |
320 X R.G.B X 234 |
| Power Supply: |
12-24V DC |
| Bui Lt-in Speaker: |
Yes |
| Image Sensor: |
1/3" CCD |
| TV System: |
NTSC/PAL Optional |
| Horizontal Resolution: |
420 TV Line |
| Lens Angle: |
140° |
| Definition: |
420TVL |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |
| Interface: |
4 Pin Connector |

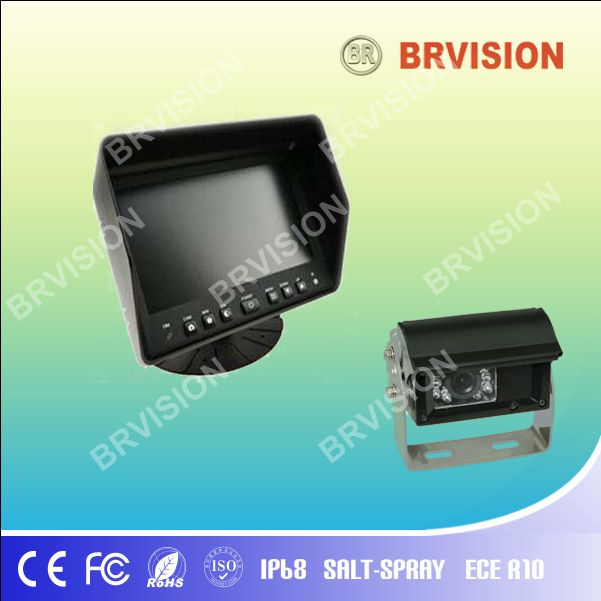

Product Description
Monitor Specifications:
. Screen size: 5.6 inch Digital panel (16:9)
. Input: 2-way video input
. System: PAL and NTSC switching
. Resolution: 320 x R.G.B x 234
. Power supply: 12-24V DC
. Bui lt-in speaker
. Heavy duty reversing
. Remote control, OSD menu
. contrast, color, brightness adjustable
. Three video input with 2 trigger cable.
. Operating temperature: -20ºCto +70ºC
. Storage temperature: -30ºC to +80ºC
BR-RVC15
Camera Specification:
-Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy
| Aluminum Shell Backup Waterproof Camera |
| Image Type: 1/3 Inch Color CCD |
| Horizontal Resolution:720TV Lines |
| NTSC:976(H)×494(V) PAL:976(H)x582(V) |
| Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: 100% Waterproof IP69K Rating |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional) |
| Power supply:DC12V (from Reversing Monitor) |
| Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting) |
| Weight Approx: 179g |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
