| Prod Model: |
TM5601&RVC01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
5.6 Inch |
| System: |
PAL and NTSC Switching |
| Resolution: |
320 X R-G-B X 240 |
| Image Sensor: |
1/4" Sharp/Sony Color CCD |
| Waterproof: |
IP68 |
| Definition: |
420TVL |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |
| Interface: |
4 Pin Connector |
Product Description

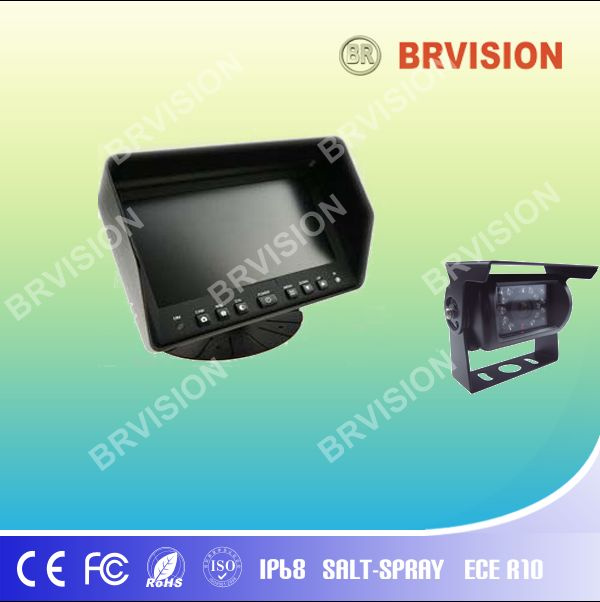

5.6 Inch Monitor Auto Camera Security System
Key features:
5.6" TFT LCD monitor
Rearview camera with night vision
This system for front view monitor
The rearview camera is for optional
Monitor specifications:
Screen size: 5.6-inch digital panel (4:3)
Input: 2-way video input
System: PAL and NTSC switching
Resolution: 320 x R-G-B x 240
Power supply: 12-24V DC
Built-in speaker
Heavy-duty reversing
Remote control, OSD menu
Contrast, color, brightness adjustable
Three video input with 2 trigger cables
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C
BR-RVC01 camera specifications:
Image sensor: 1/4" color CCD
Resolution: 420TVL
Electronics shutter: 1/60-1/5000(S)
Lens: 2.8/2.1mm
Wide angle: 120°/150°
Power: 12-24VDC (±10%)
Audio function (optional)
10M night-vision at least: 18 infrared LEDs
Rain/sun shutter provide to protect your camera
Dimension: 70/45/45mm
Easy for installation
| Aluminum Shell Backup Waterproof Camera |
| Image Type: 1/3 Inch Color CCD |
| Horizontal Resolution:720TV Lines |
| NTSC:976(H)×494(V) PAL:976(H)x582(V) |
| Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: 100% Waterproof IP69K Rating |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional) |
| Power supply:DC12V (from Reversing Monitor) |
| Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting) |
| Weight Approx: 179g |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
