Product Description

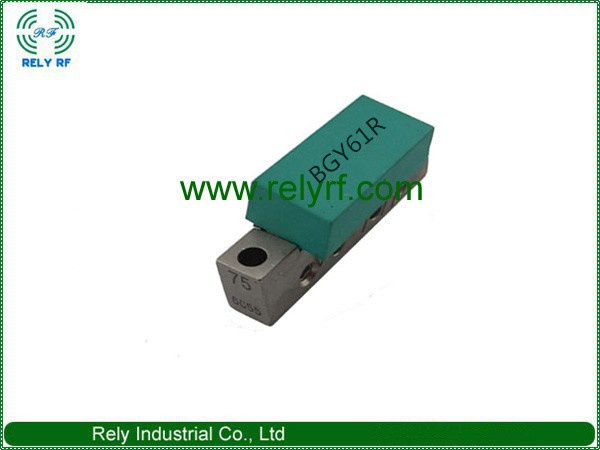

5-200MHz 13dB Gain Silicon CATV Reverse Amplifier Module BGY61-R
type:catv amplifier module
keywords:CATV Reverse Amplifier Module
part number:BGY61-r
5-200MHz 13dB Gain Silicon CATV
Reverse Amplifier Module |
BGY61-Reverse IC |
Product Feature
Power Gain 13dB
Excellent Linear Gain
High Reliability
Reasonable Price
Industry Compatible Package
Product Description
BGY61R Reverse Push-Pull power Amplifier Module is designed and produced with Si RF audion; It is suitable to use in reverse signal power amplifier in CATV system; Installing configuration is SOT115J package; Operating frequency range is 5-200MHz; Voltage supply is 24V.
Technology Specification (Bandwidth5 to 200 MHZ;TCASE = 25ºC,VDD =24V,ZS=ZL=75Ω)
| Item No.: CR225 |
| Symbol | Parameter | Unit | Min. | Typ | Max. | Condition |
| BW | Frequency Range | MHz | 5 | - | 200 |
|
| GA | Gain | dB | 13.5 | 13 | 14 | f = 200 MHz |
| S | Gain Slope | dB | 0 | - | 0.5 | f = 5 to 200 MHz |
| GF | Gain Flatness | dB | - | ±0.3 | - | f = 5 to 200 MHz |
| S11 | Input Return Loss | dB | - | -18 | - | f = 5 to 200 MHz |
| S22 | Output Return Loss | dB | - | -18 | - | f = 5 to 200 MHz |
| CTB | Composite Triple Beat | dBc | - | -68 | - | 17 PAL channels flat;
Vo=50dBmV;
DS-4channel(Fm=77.25MHz) |
| CSO | Composite Second Order | dBc |
| -60 |
|
| Xmod | Cross Modulation | dBc | - | -70 | - | 17 PAL channels flat;
Vo=50dBmV;
DS-4channel(Fm=77.25MHz) |
| Itot | Total Current Consumption | mA | - | 175 | - | DC value; VB= +24V |
| NF | Noise Figure | dB | - | 5.0 | - | f = 200 MHZ |
| TOP | Operating Temperature | ºC | -20 | - | 100 |
|
| TSTG | Storage Temperature | ºC | -40 | - | 100 |
|
