| Prod Model: |
100.4D1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Car MP3 |
| Certification: |
CE |
| Voltage: |
12/24V |
| Audio Output: |
Digital Audio Coaxial |
| Placement: |
Dashboard |
Product Description

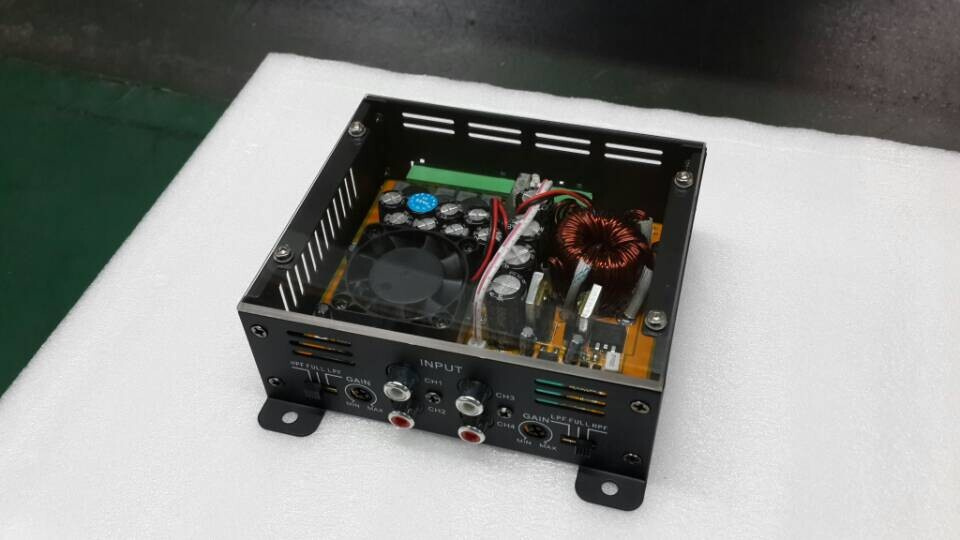

Product feature:
(1) this circuit board is made by poster, Not hand made, Circuit board workmanship well.
(2) Using power capacitances filtering, Prevent in the interferene, Make the sound nice.
(3) digital and inductance
(4)Tiny enough to fit almost anywhere for great sound in incredibly small spaces, High / Low inputs, Variable high / low pass crossover
(5) Not much heating when it works, It can be energy saving, small size, high power, No distortion
(6) COMPACT SIZE: 104mm*112mm*38mm (L*W*H)
LOWER THAN NORMAL TEMPRETURE WHEN WORKING STATUS
EASY AND FAST INSTALLING
IMPORTED FAST & HIGH EFFICIENCY IC
Specification:
Mini full range class D
Number of inputs: 4
Power RMS in 2 Ohm 13, 8V: 4 x 75 Watts RMS
Power RMS in 4 Ohm 13, 8V: 4 x 50 Watts RMS
Power @ 13.8V Bridge 4 Ohms: 2 x 150 Watts RMS
Supply voltage: 9-15V
Frequency response 10Hz-30KHz
Crossover High Pass 90Hz / Flat
Signal-to-noise ratio 90Hz / Flat
Harmonic distortion 0.2V
Input Sensitivity 20K OHMS
Minimum output impedance Stereo 2 Ohms / Bridge 4 Ohms
Consumption with music signal 16 A
Consumption with signal bass 32 A
