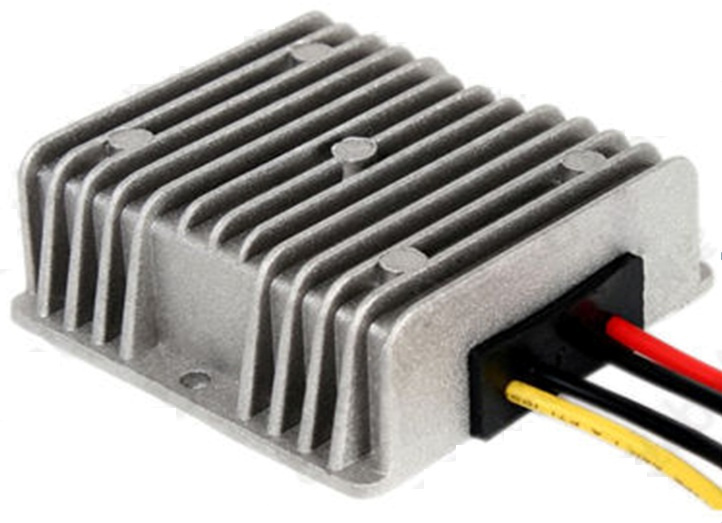

48V to 12V DC/DC Converter Apply to Car Audio System
| Price: |
US $ 11.45-22.88/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
OMY050-4812-04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
75*75*30mm |
| Function: |
24V Depressurization To12V |
| Parameter: |
4A / 50W |
| Type: |
DC/DC Inverters |
| Phase: |
Dual |
| Power Source: |
Electric Power |
| Output Power: |
50 - 100W |
Product Description
Name: Vehicle system DC to DC power converter
Color: Black,White
Metal material: Cast aluminum
Glue material: Epoxy resin
Working Voltage: DC to DC boost and depressurization voltage series
Conversion efficiency: > 85%Soft boot time: 500 msWorking temperature: -20ºC~+60ºC
Load regulation rate: ±2%Voltage regulation rate: ±1%
Dynamic response speed: 5% 200uS
Short circuit protection: Sustainable, self-recoveryModule type: Non isolated modulePRODUCT INSTRUCTION
There are boost voltage and depressurization voltage two series of our vehicle DC to DC power converter, it all the components are used imported one, the advanced converter technique design can get the conversion efficiency over 85%, it has lower calorific value design plus cast aluminum conduct the heat to make sure the product long time using. The epoxy resin embedment has waterproof, quake-proof and moisture-proof features.
Circuit design have short-circuit protection, over current protection function, it can automatic recovery after the problem is removal. The small size of product is convenient with installation.
| Series | Model | Size | Function | Parameter | Attached |
DC to DC
Boost series
| OMY072-1224-03 | 68*58*24mm | 12V boost to 24V | 3A/ 72W |
| | OMY096-1224-04 | 68*58*24mm | 12V boost to 24V | 4A/ 96W |
| | OMY048-1248-01 | 68*58*24mm | 12V boost to 48V | 1A / 48W |
| | OMY096-1248-02 | 68*58*24mm | 12V boost to 48V | 2A / 96W |
| | OMY120-1224-05 | 75*75*30mm | 12V boost to 24V | 5A / 120W |
| | OMY144-1248-03 | 75*75*30mm | 12V boost to 48V | 3A / 144W |
| | OMY240-1224-10 | 75*75*30mm | 12V boost to 24V | 10A / 240W |
| | OMY240-1248-05 | 75*75*30mm | 12V boost to 48V | 5A / 240W |
| | OMY360-2412-15 | 112*80*49mm | 12V boost to 24V | 15A / 360W |
| | OMY480-2412-20 | 112*80*49mm | 12V boost to 24V | 20A / 480W |
|
DC to DC
depressurization voltage | OMY100-2405-20 | 75*75*30mm | 24V boost to 5V | 20A / 100W |
| | OMY150-2405-30 | 75*75*30mm | 24V boost to 5V | 30A / 150W |
| | OMY120-2412-10 | 75*75*30mm | 24V boost to 12V | 10A / 120W |
| | OMY240-2412-20 | 75*75*30mm | 24V boost to 12V | 20A / 240W |
| | OMY120-4812-10 | 75*75*30mm | 48V boost to 12V | 10A / 120W |
| | OMY120-4824-05 | 75*75*30mm | 48V boost to 24V | 5A / 120W |
| | OMY240-4824-10 | 75*75*30mm | 48V boost to 24V | 10A / 240W |
| | OMY050-4812-04 | 75*75*30mm | 24V boost to 12V | 4A / 50W |
| | OMY360-2412-30 | 112*80*49mm | 24V boost to 12V | 30A / 360W |
| | OMY480-2412-40 | 112*80*49mm | 24V boost to 12V | 40A / 480W |
|
PRODUCT FEATURE and APPLICATION |
It's widely supplied and convert power from storage battery for LCD indicated screen which apply to bus, coach, minibus, truck, electro car, Solar power converter, for the advertisement screen of taxi, and apply to Car Audio system( Car DVD, Amplifier, LCDTV, laptop), LED interphone, monitoring system and any other industrial equipments.
