| Prod Model: |
PM460UT7-6C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE, FCC, RoHS |
| Type: |
TFT |
| Aspect Ratio: |
16:9 |
| Application: |
Surveillance, Advertising, Large-Screen Project |
| Feature: |
Ultra Narrow Bezel Video Walls |
| Screen Size: |
46" |
| Interface Type: |
VGA, DVI, HDMI, Video, YPbPr, RS232 |
Product Description

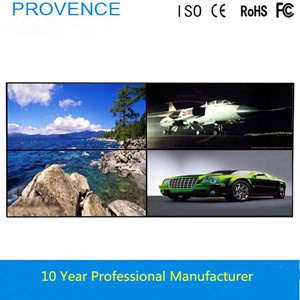

46" LCD digital signage displays (PM460UT7-6C)
1. Adopt Samsung exclusive DID Ultra Narrow Bezel Panel.
2. Certificate: CE, FCC, RoHS
3. Customized Brand: Ours, OEM, ODM
4. Resolution: 1366(H)X768(W)
5. Brightness (CD/m2): 700CD/m2
6. Contrast Ratio: 4500: 1
7. Viewing angles: H: 89o/89o V: 89o/89o
8. Integrate multiple HD Video signal source interface type: DVI, HDMI, VGA, YPbPr, AV.
9. Stable performance, and the thermal management system allows the monitor to operate 24/7.
10. Low Power, Green Material. Built-in digital signal de-noising unit.
11. Operating Humidity: 10~90%, normal operations in poor conditions.
12. Reasonably complete Accessories for your option, as well all kinds of Installation Method (base support, wall mounts, stand support etc. )
| PRODUCT DESCRIPTION |
| Panel |
| Diagonal Size | 46" |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.7455(H) x 0.7455(W) |
| Response Time | <8ms |
| Resolution | 1366x768 |
| Contrast Ratio | 4500:1 |
| Brightness (cd/m2) | 700d/m2 |
| Active display area | 1018.353 (H) x 572.54(V) |
| Display Color (Max) | 16.7M |
| Viewing Angle | H:89o/89o V:89o/89o |
| Video Input |
|
| VGA | X1 |
| DVI | X1 |
| HDMI | X1 |
| Composite video( BNC) | X1 |
| RJ45(use for RS232 IN) | X1 |
| RJ45(use for debug) | X1 |
| Output Connection |
|
| Composite video(BNC) | X1 |
| DVI | X1 |
| RJ45(use for RS232 OUT) | X2 |
| Power |
| Power Supply | AC Input 100~240V(+/-10%)/50-60Hz |
| Power Consumpiton | ≤210W |
| Stand-by(MAX) | ≤2W |
| Operation/Sotrage |
| Operating Temperature | 0 0 C~50 0 C |
| Operating Humidity | 10%~90% |
| Storage Temperature | -20 0 C~60 0 C |
| Operating Humidity | 0%~90% |
| Safety and Ergonomics |
| Regulations | CE,FCC,ROSH |
| Technical Specification |
| OSD language | Simplify Chinese,English |
| Horizontal Frequency | 20 ~ 82KHz(analog and digital) |
| Vertical Frequency | 55~75Hz |
| Optimum Resolution | 1366x768at 60HZ |
| Native Resolution | 1366x768at 60HZ |
| Supported Resolutions | 1366x768; 1280x1024;1280x768; 1024x768;832x624; 800x600;720x400; 600x480; |
| Video Modes(no tuner) | 480i;480p;576i;576p;720p(50 & 60HZ);1080i(50 & 60HZ);1080p(50 &60HZ); |
| Colour Versions | Black |
| Package Contents |
| Manual | x1 |
| Warranty Card | x1 |
| Application CD | x1 |
| Power Cord | x1 |
| Lan cable(1.8m) | x1 |
| RJ45 to RS232 connector | x1 |
| Batteries | x1 |
| Mechanical Spec |
| Weight(Set/package) | 20kg/25kg |
| Dimension(W/O stand) | 1025.7*579.8*105mm |
| Packing Dimension | 1160x710x240mm |
| Warranty |
| 1 year for backlight, 3 years for other parts |
| Terms And Conditions |
| Payment Term | T/T or Sight L/C |
| Shipment Term | FOB, CIF, CNF |
| Port of Loading: | Shenzhen |
| Brand | Follow Client's Command (Ours, OEM, ODM) |
| MOQ | 20'ft |
| Valid Date | 7 days |
| Delivery Time | Within 25 Days After payment |
| About Samples |
| Extra 15% Handling Fee Is Charged For Sample. It will Be Returned When An Purchase Order Is Placed |
| Optional Accessories |
| Wall Mount |
| RS232 to USB connector |
| BNC to RCA Adaptor Jack |
| BNC to BNC cable(1.5m) |
| DVI cable(1.5m) |
| HDMI cable(1.5m) |
| VGA to BNC cable(1.5m) |
