| Prod Model: |
BCD-45L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Box Type (Open Upward) |
| Brand: |
Junyue |
| Type: |
Compressor Car Refrigerator |
| Refrigeration Temperature Scope: |
8 Degree to -18 Degree |
| Certification: |
Ce RoHS CB |
| Voltage: |
DC 12/24V, AC110-240V |
| Carton Size(mm) (L*W*H): |
520*723*472 |
| N.W. /G.W(Kg): |
20/23.5 |
| Loading Quantity: |
144PCS/20gp, 300PCS/40gp,373PCS/40hq |
| Parts: |
Refrigeration Compressor |
| Application: |
Car Fridge |
Product Description
Specifications:camping or car fridge/freezer
Environment friendly technology
Quick freezing and high-efficiency
Energy saving design

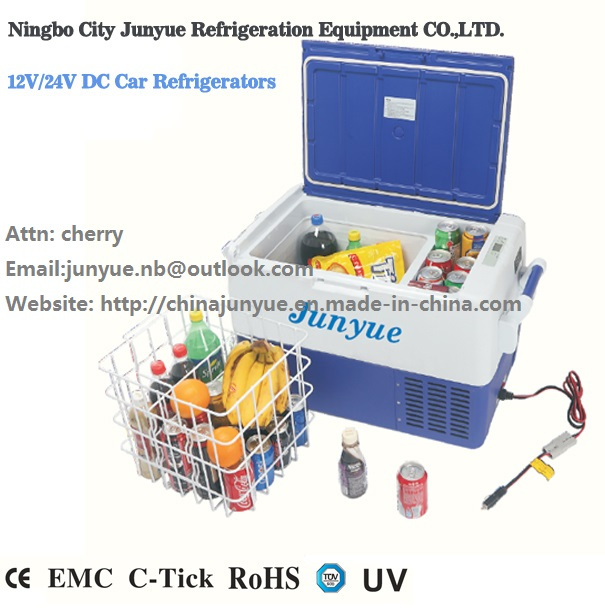

New design:45L12/24VDC Car Refrigerators
30L/45L/60L camping/car fridge/freezer
Advantages:*Anti-vibration design for harsh condition
*30 Degree tilt can still work normally
*Suitable for solar power supply
*CFC-free refrigerant R134a
45L12/24VDC Car Refrigerators1. High quality DC compressor
2. Germany design
3. DC12V/24V automatic recognition , AC/DC operated
4. Can set temperature from an ice cold -18ºC and up to +8ºC.
5. Perfect for tropical climate, can even refrigerate in blistering hot temp up to 50ºC.
6. Digital temperature pre-setting and LCD display with failure prediction show.
7. Automatic power cut off at 10V to protect the battery.
8. Anti-vibration design for harsh condition.
9. Use for camping & outdoor, car, 4WD, motor homes, RV, caravan, truck, automotive, boat, marine, home.
45L12/24VDC Car Refrigerators | Model | BCD-45 |
| Gross capacity | 45 liters |
| Demension | 430*650*400mm |
| Carton size | 520*723*472mm |
| Voltage | 12/24V DC current<4A
AC 110-240V |
| Average power consumption | 48W |
| Temperature range | -18~8 degree (variable via electronic thermostat) |
| Refrigerating Fluid | R134a |
| Refrigeration capacity | Arrived -16 degree in 2 hours.
(under the standard running condition and rated load) |
| N.W./G.W. Kg | 20/23.5 |
| Certifcate | CE ROHS BC |
| Other features | Digital temp.control panel
The compressor could adjust the torque and rotate speed automatically |
Why you choose us?1.Thick insulation
2.Efficient compressor
3.Lock&key for safty
4.Low noise design
5.10 years exporting experience
6.partner of FAQ
7.3 years warranty time for compressor and 1 year fo other accessories.
8.We have strong engineering team that can give best solution for your projects.
FAQ:1.WHAT DO MINI FRIDGES NEED TO RUN?
You fridge uses electricity; 12V or 24V adoptor, or battery or a set of solar system and the laws of thermodynamics to move heat from the inside of your fridge where the food is, to the outside air. We provide 4 types to choose whatever you like.
2.SO HOW DO MINI FRIDGES KEEP THINGS COOL?
In a refrigerator, you use a refrigerant to absorb the heat from the food, and then you pump it using a compressor away from the food and replace it with fresh refrigerant to keep the contents cold.
3.WHAT IS A REFRIGERANT?
A refrigerant is usually a gas or a liquid that requires a lot heat energy to freeze, condense or evaporate; that's what makes it useful. Car air conditioners and portable electric fridges usually use R134A which is much less damaging to the atmosphere than previous refrigerants such as R12 {Freon}.
4.WHY DO MINI FRIDGES KEEP RUNNING ONCE EVERYTHING IS COLD?
It's about insulation. Because the contents are colder than the surroundings, heat will flow from the surroundings and through the walls into that cold space. Insulation slows down that heat transfer, but it can't stop it. And every time you open the lid, add some contents, heat gets in too. Better fridges have better quality insulation and seals.
5.CAN MINI FRIDGES BE OPERATED FROM 12V DC POWER SOCKET OF A CAR?
Yes, but almost all cars will only supply 12V while the accessories are switched on or the ignition is on and/or the car is running. So if you stop and turn off the car the fridge will probability stop working too. This will help to prevent you from flattening your car battery, of course. If your car battery is not in good condition the low voltage error protection may switch off the fridge just when you are stopped, especially if it is at night and the car headlights are running too.
6.WHY DO PORTABLE FRIDGES TAKE 2 MINUTES TO START?
When the fridge turns off there is still high pressure refrigerant in the condenser. If the compressor tried to start straight away the load would be too high. The startup delay allows the pressures in the system to equalise so the compressor uses less power to start again. It also protects the system when it is first turned on in case the unit has not been sitting level.

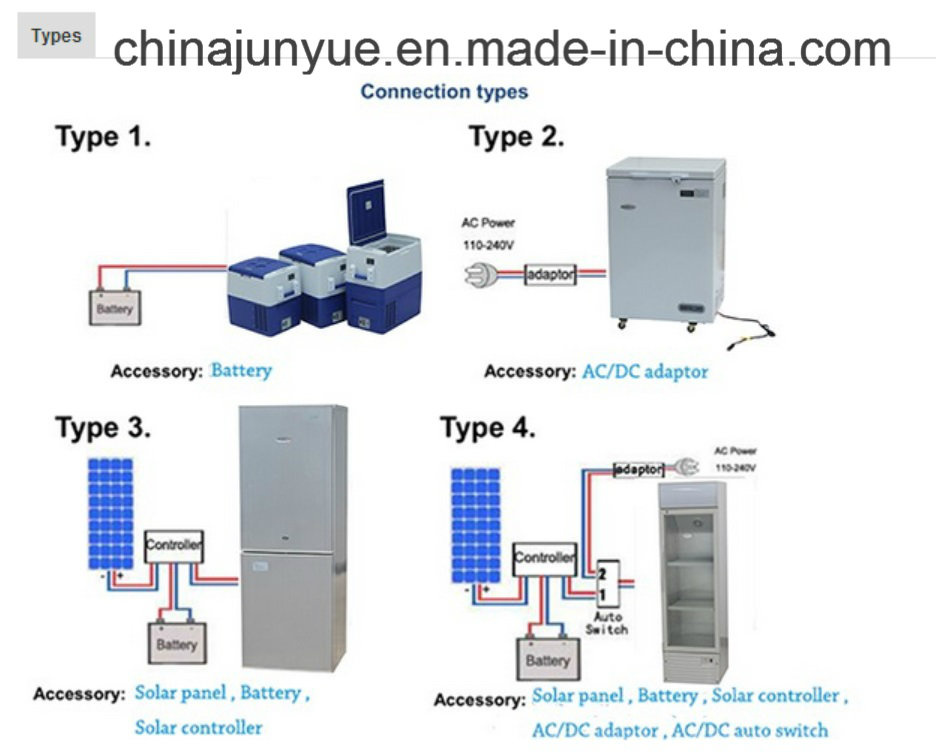

7.CAN SOLAR PANELS BE USED WITH MINI FRIDGES?
The car fridge will not work properly if directly connected to solar panels, as the voltage output fluctuates too much for the controller built in the fridge. You can, however, connect solar panels through a charger/regulator to a 12V battery running the fridge. The requirements for heavy duty wiring between the battery and the fridge are the same as recommended for battery only operation.
8. WARRANTY SERVICE?
We can provide spare parts(compressors,fans,bulbs,controllers,etc) to support you within warranty year for free, fridge box is under 1 year warrenty, compressor is under 2-3 year warranty.
Packing & Shipment:
Contact us:Ningbo City Junyue Refrigeration Equipment Co., Ltd.
Address: Andong Cixi City Zhejiang China.
Attn:Cherry
Tel: 0086-574 63489633
Fax:0086-574 63489252
Mobile:0086-1375360003
Ningbo City Junyue Refrigeration Equipment Co., Ltd. is a manufacturer of refrigerator compressor over 30 years with well-equipped testing facilities and strong technical force. Our main products are all in DC Car fridges DC Compressor Refrigerator DC Display Cupboard and some accessories, such as compressors, PV controller, Solar panel, Storage battery, 12/24V power supply switch, handcart, refrigerator bag, fixed bracket etc.
"JUNYUE" is our brand which is one of the famous trademarks of China. With world advanced quality and technology, the products enjoy high reputation and wide influence in the domestic and overseas markets. It occupies most of the consumption market with its high product quality and sincere service.
Thanks to its strong professional technical strength, strict quality management system, measuring and inspection system, standardization system, informatization system and modernized scientific management means, it exerts the potential advantages of sustainable development and undisputedly ranks the leading position in the same industry, becoming an acknowledged leading enterprise and excellent representative in China renewable industry.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
