42'' Open Frame 1500nit LCD Touch Screen Display
| Price: |
US $ 1500-1700/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
D420D15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
42inch |
| Brightness: |
1500nit |
| Resolution: |
1920X1080 |
| Type: |
Open Frame |
| Active Display Area (mm): |
983.0(H) X 576.0(V) |
| Number Of Colors: |
10bit |
| Viewing Angles: |
178(H);178(V) |
| Response Time (Ms): |
5ms |
| Optional Interface: |
DVI / HDMI/AV |
| Power Input: |
DC 12V_4A AC 100~240 V, Universal,±10% |
| Screen Size: |
40-50 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Medical Services System |
| Screen Type: |
Infrared |
| Customized: |
Customized |
| Resistive Touch Screen Type: |
No |
Product Description

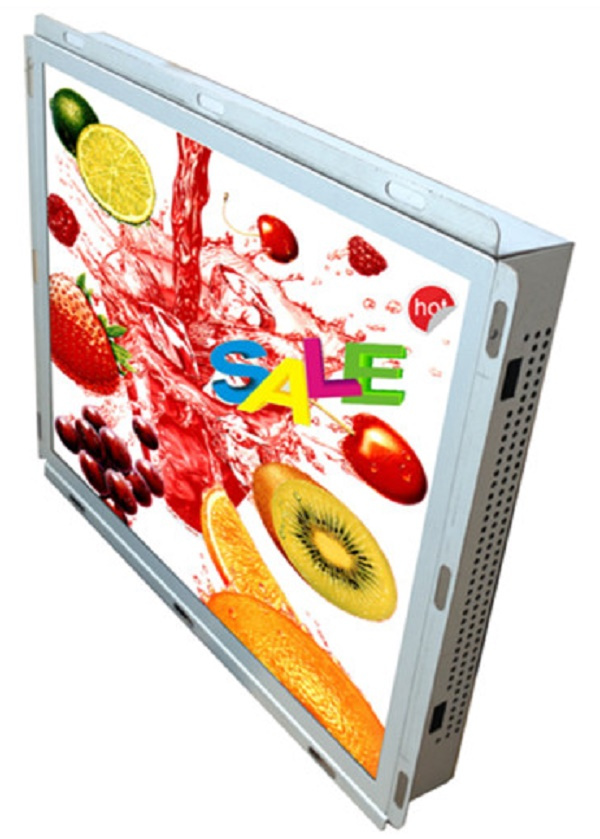

42'' open frame touchscreen display
Resolution: 1920 X 1080
Brightness: 500
Contrast: 1300:1
VGA DVI HDMI Signal Input
12V 4A DC Input
Touch (Optional)
FCC, CE, CCC, RoHS Certification
Operating Temp:-20~80ºC
Technical Specification |
Model Name | D420D15 |
Screen Size (diagonal) | 42" |
Display Resolution (pixels) | 1920 X 1080 |
Active Display Area (mm) | 983.0(H) X 576.0(V) |
Brightness (cd/m^2) | 1500 (typ.) |
Contrast Ratio | 1300:1 (typ.) |
Number of Colors | 10bit |
Viewing Angles | 178(H);178(V) |
Pixel Pitch (mm) | 0.4845(H) × 0.4845(V) |
Backlight | LED |
Response time (ms) | 5ms |
Touch Screen |
Type | (Resistive,SAW,Infrared,Capacitive Optional) |
Touch Connectors | USB or RS232(Optional) |
Interface |
Signal Connector | 15 pin D-sub(VGA) |
Optional Interface | DVI / HDMI/AV |
Power |
Power Input | DC 12V_4A AC 100~240 V, Universal,±10% |
Power Consumption | ≤36W |
Mechanical |
Material | Steel chassis |
Mounting | VESA or Embedded |
Remarks |
Certificate | CE,ROHS,FCC,CCC,ISO9001,UL(optional) |
Warranty | One year |
