| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technology: |
Infrared |
| Function: |
Smart Touch |
| Material: |
Aluminum |
| Touch Size: |
1640X1230mm |
| Points: |
10 Points |
| Users: |
4 Users |
| Certificate: |
CE.FCC.RoHS.ISO |
| Software: |
Are All Free |
| Color: |
All Colors |
| Certification: |
CCC |
Product Description
Product Description:

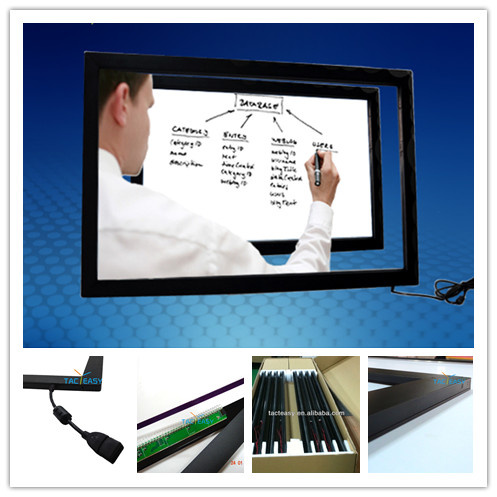

Infrared(IR) touch screen operate on the mechanism of infrared LEDs arranged in arrays on two adjacent bezel edges of the PCB with photo sensors placed on the two opposite edges functioning as transmitters and receivers. The LEDs emit infrared rays simultaneously to form a grid of rays across the display. When the user wishes to send a signal through touch, he/she can do so by interrupting the light beams with a physical object. Since every infrared LED is independent, the touch screen is able to achieve positioning by analyzing the decrease in light at the corresponding photo sensors. The signal is then processed by the control circuitry and sent to the PC for the coordinates of the touch event to be displayed on screen or to be utilized by other software for relevant signal operation.
Specifications:
|
Parameters |
|
Basic Data |
Accessories |
|
Boards Material |
Aluminum Honeycomb |
Pen and pointer |
Yes |
|
Induction Type |
infrared |
TACTEASY Software CD |
Yes |
|
Writing Type |
finger or pen |
USB Cable |
Yes |
|
Positioning Accuracy |
=< 0.2mm |
User Guide Manual |
Yes |
|
Touch Preciseness |
8192*8192 |
Wall Mount Brackets |
Yes |
|
Cursor Speed |
=>125dots/second |
stand |
optional |
|
Transferring Rate |
12m/s |
Hardware Features |
|
Scanning Rate |
first point 25m/s consecutive points 8ms |
Device driver version |
DL-USB |
|
Consumption Current |
=<100mA |
Scanning form |
Auto start, always scanning |
|
Stand USB Length |
6m |
Version |
Latest available |
|
Working Environment |
Direct under the sunlight |
Data Port |
USB /wireless RF2.4G/RS232 |
Recognized as one of the leaders in the filed of interactive whiteboard, Tacteasy is offering the most competitive products and solutions for education & training, conferencing, business and government. Tacteasy is developing, manufacturing and selling interactive whiteboard, IR touch Frame touch TV/PC all in one.
After years' development, Tacteasy has owned Scientific regulation system, innovative R&D team and effective production lines. with the increasing of presentation tools, our interactive applications, especially the dual-user infrared interactive whiteboards are in demand and in popularity for educators who want to involve their students and worker in learning technology; It is a lover for education in 21st.
Accompany with Tacteasy, to be a Tacteasy, our aim is to meet and exceed the needs for you. This will result in long term and mutual-benefits relationship with clients all over the world.
