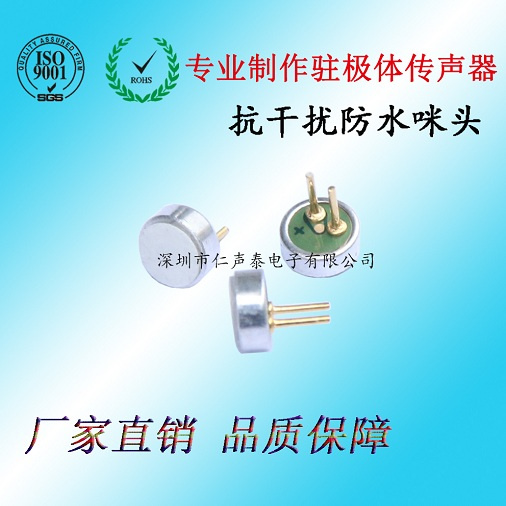

4015 Omnidirectional Electret Condenser Waterproof Microphone for Mobile (RoHS)

Prod Model:	RST-B4015AP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Measurement
Signal Transmission:	Wireless
Directivity:	Omni-direction
Sound Channel:	Stereo
Transducer Principle:	Condenser Microphone
Sound Field Force:	Combined Type
Wireless Technology:	VHF
Output Impedance:	20-16000Hz

Product Description

Sensitivity Range	-42±3dBRL=2.2KΩVs=2V(1KHz 0dB=1V/Pa)
Impedance	Max. 2.2KΩ 1KHz (RL=2.2KΩ)
Frequency	20-16000 Hz
Current Consumption	Max.0.5mA
Operation Voltage Range	1.0V-10V
Max. Sound Pressure Level	115dB S.P.L
sensitivity reduction	3.0V-1.5V Sensitivity Variation less than 3dB
S/N ratio	more than 58dB
Environmental  Protection  Regulation	HF
super-directional Electret Condenser	Electret Condenser Microphone

   SHEN ZHEN RST ELECTRONICS CO.,LTD.is professional manufacturer of electro acoustic products, 20 years experience in electronic components, the company set research and development, production and sales in one, quality assurance, stable performance, reasonable price, in the consistency and reliability of products with unique technical guarantee. Welcome to consult!
