| Prod Model: |
GL-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof: |
Option |
| Screen Size: |
>60 Inches |
| Screen Type: |
Infrared |
| Customized: |
Customized |
Product Description

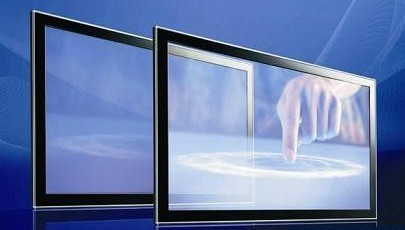

40" multi touch screen overlay infrared touchscreen frames
- support 2-10 touch points, no need driver, plug and play
- support Windows, Mac OS, Android, Linux, Ubuntu, Fedora system
- strong sunlight immunity, work outdoor normally
- explosion-proof, anti scratch,
- scientific structure design , use strong material
- maintenance free, long product life
- built-in hardware diagnosis function, quick positioning problem
- excellent fault tolerance setting, ensure stability
- High precision of touch
Typical case
Applications:interactive digital whiteboard,All-in-one,Mall Kiosk,,Way-finding Machine,Digital menu board,Self service ticket machine,Conference system display, Interactive advertising Public command center,Vedio wall,touch screen TV.
1.Touch screen Specifications
Touch Input Method
Finger, Gloved Finger or stylus pen
Touch Activation Force
Non minimum activation force
Position Accuracy
2mm
Touch type
Single/ Multi-touch (Windows 7)
Resolution
4096(w)*4096(D)
Response Time
Touch:<12ms
Drawing:<12ms
Cursor Speed
120 dot/sec
Glass
5mm tempered Glass Transparence: Min. 95%
Optics Number
274*154
Optics Cell pitch
5.2mm
Object Touch Size
5mm
Touch intensity
Over 60 millions single touch
Operation system
Windows 7 /8,windows 2000/2003/XP/Vista
Linux OS ,Mac, Android2.3/4.0
Housing
Unique plastic &metal
Touch panel size (out line)
973mm(L)*566.1mm(W)*9.2mm(H)
Active area
930.2mm(L)*523.3mm(W)
Net Wright
Kg
Drawing power
Refet to Appendix 7 .
Operating Voltage
DC 4.5V~5.5V
Power
4W(200mA at DC5V)
Temperature
Operating:-20~70ºC
Storage:-40~80ºC
Humidity
Operating:10%~85%
Storage:10%~90%
Relative Humidlity
40ºC,90% RH
Altitude
3.000M
Interface
USB
Detection Method
Infrared rays
Seal Ability
SKIN:IP65
Working Environment
indoor and outdoor
Application of Display
LCD,PDP,DLP
As a professional and leader factory in R&D and manufacturing Infrared IR touch screen panels, Shenzhen Geelot Technology Co., Ltd insists on taking to create first class touch screen technology company, first class international brand, and win the glory for the nation as its mission.
We can produce any size to meet customer's demand from 10" -300" include 1-32 points touch screen, And 15"- 65" touch screen LCD open frames monitor
Our IR touch screens are used in many many industry and area. Interactive digital whiteboard, All-in-one, Mall Kiosk, , Way-finding Machine, Digital menu board, Self service ticket machine, Conference system display, Interactive advertising Public command center, Vedio wall, touch screen TV, ATM, POS machine Out door and indoor Kiosk Gaming machine Industrial control system self- service terminal.
