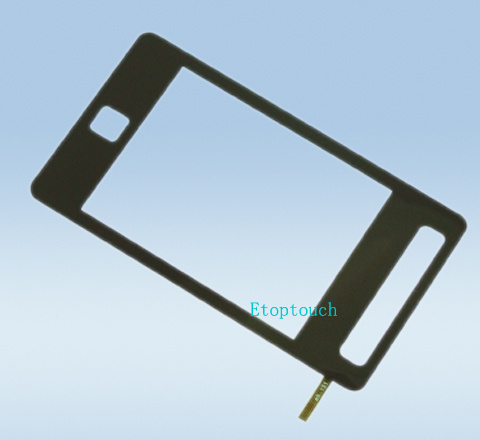

4 Line Resistive Touch Lens

4 Line Resistive Touch Lens
Price: Negotiable
Min Order: 1

Product Description

Parameter
2.8"
OD: 91.86*51.86
VA: 44.8*59.2
AA: 43.2*57.6
Characteristics Conditions
Item
simulative£¨resistvie£©touch panel ¡¢digital touch panel
Structure Item
ITO FILM + ITO FILM ¡¢ ITO FILM +ITO FILM+ITOGLASS¡¢ITO FILM + ITO GLASS
Surface Material
Anti-glare¡¡coating£¬glare coating
ITO FILM Thickness
0.100mm¡¢0.125mm¡¢0.175mm¡¢0.188mm
ITO GLASS Thickness
0.55mm¡¢0.70mm¡¢1.10mm¡¢2.00mm
connect  manner
Soft circuitry panel Zebra paper £Ð£Å£Ôcircuitry panel
Operating Voltage
¡Ü5V(DC)
Linearity degree£¨fit for Simulation T/P£©
Linearity ¡Ü1.5£¥
Response Time
¡Ü10ms
Surface hardness
£¾3H Pencil hardness £¨JIS K5600 test manner£©
Tolerance of Outside Dimension
£«£¯£­0.2mm
Operating Force
10~100g
Operating  Life
Tapping  10 6 times¡¢ pen sliding: 10 5 times
Optical Clarity
Film and glass  ¡Ý80£¥ wavelengh 550nm
Operating environment
-20¡æ~70¡æ¡¡20%~90% RH
Storage Environment
-30¡æ~80¡æ¡¡20%~90% RH
Dongguan Etop Opto-electronic Co., Ltd. was founded in 2000, which has been a professional factory in developing and manufacturing as well as selling Touch Screen series products. The Touch screen products include resistive, capacitive, infrared, touch screen etc. Our products main used for Mobile phone, GPS, LCD display, Medical Devices, PDA, Computer etc.
In the TP field we adopt the advanced manufacturing technology of Japan, and import the first class equipment and the raw materials from USA and Japan, and we implement strict quality management, our products have obtained CE, FCC, SGS approvals smoothly.

Along with the development of our market, we expand our production line from Resistive to Capacitive touch screen and infrared touch screen. We have a very strict quality control to ensure the quality of our product, we also employ engineers from Japan and Taiwan, and all workers need to take pre-job training before engaging in their jobs. What's more, we use advanced equipment, such as dry etching machine instead of traditional wet etching machine and we choose the high quality material such as Toyo and Autotype; All these ensure our fraction defective to the lowest in this field.

Our factory integrates intelligent sales personnel, professional engineers and skilled production workers. We are able to combine our knowledge of material, process and interface design to provide the best solution for different applications. We work collaboratively with our clients to deliver an end-to-end service from product conceptualization, design, manufacture and installation globally.

Etop Opto-Electronic is dedicated to becoming your cutting-edge technology manufacturer and supplier. We sincerely welcome clients from around the world to contact us for mutual benefit.
