| Prod Model: |
SMS 0403 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
60*30 Mm |
| Link Mode: |
Two Lines Serial Interface |
| Operating Temperature: |
-10-50 |
| Type: |
LCM |
| Display Technology: |
STN |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
6 Oclock View Angle |
Product Description

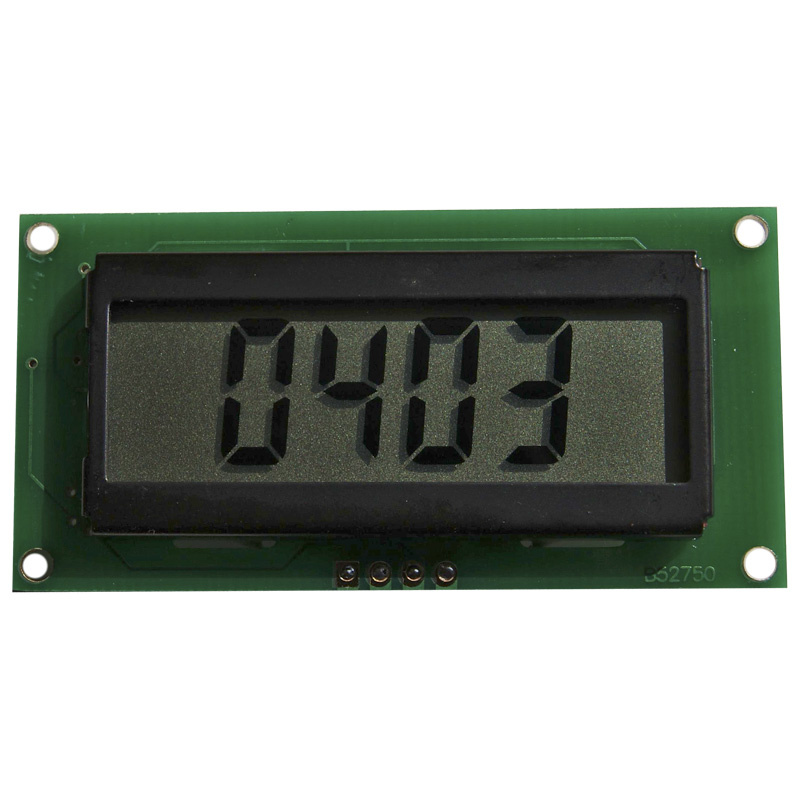

4 digital custom segment LCD display SMS 0403
Main technical data:
DISPLAY PATTERN: 4 NUMBERAS WITH 4 RADIX POINT
OPERATING VOLTAGE: 2.7~5.5V
OPERATING CURRENT: 20uA(3.0V), 300uA(5.0V)
HIGH: 11.4mm
RELATIVE HUMIDITY ENVIRONMENT: <85%
VIEW ANGLE: 6: 00
OPERATING TEMPERATURE: -10~+50° C
DISPLAY TYPE: POSITICE MODE/REFLECTIVE
STORAGE TEMPERATURE: -20~+60° C
LINK MODE: TWO LINES SERIAL INTERFACE
Factory direct sales LCD display in variety display color and size. We can also design and manufacture the LCD panel of TN, STN, FSTN, color STN and some other special types, as well as the LCD module of COB, COF, TAB and COG.
Customer's specifications are welcome!
More details, please visit our website
Changsha Sunman Electronics Co., Ltd was established in 1995, specializes in the Design, Manufacture and Sale of LCD(Liquid Crystal Display), LCM(Liquid Crystal Display Module). It is a company approved as high-tech enterprise by Hunan Science and Technology Bureau and a star company in Changsha High and New Technology Industrial Development Zone. It is also one of the first ten members as Hunan university students start-up enterprise century activity in high-tech development zone, launched by Changsha High and New Technology Industrial Development Zone and Hunan university. There are a large number of self-developed standard LCD and LCM available in our company. Customers can use them directly. Also, we can customize LCD modules according to customer's request. For example, re-design the display content, the size of the PCB and the MCU solution of measure, control and display.
