| Prod Model: |
Sanway FP10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(Wxhxd): |
483X88X396mm |
| Output Connectors(Per Channel): |
Binding Posts 2-Pole |
| Type: |
Professional Amplifier |
| Function: |
Amplifier Combined |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
D |
| Usage: |
Concert Hall, Church |
| Sound Channel: |
4.1 |
Product Description

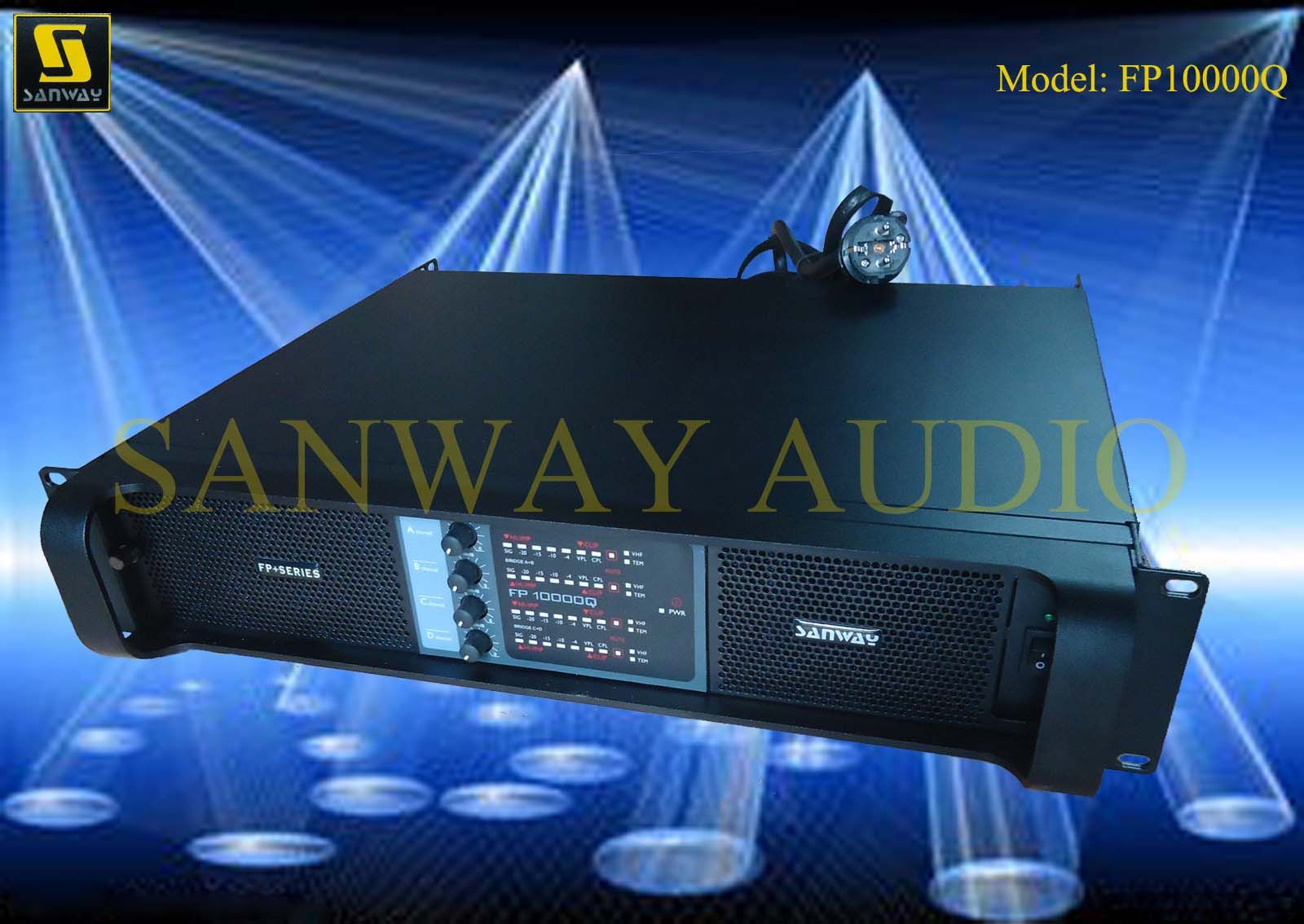

4 Channel H Class Power Amplifier (FP10000Q)
1>. Audio Amplifier, DJ Equipments
2>. Professional 4 Channels Power Amplifier
3>. Karaoke Sound Pro Audio Amplifier
Key Feature
1) Minimum power-to-weight ratio
2) Minimum power-to-volume ratio
3) Zero heat insulation cooling system
4) Segmented analysis on system temperature
5) Transistors line-up at zero thermal path difference
6) Cumulative analysis on high frequency power
7) Accurate power dispatching
8) Real-time / Online detecting of load resistance
9) Dynamic adjusting and analysis on the integrated output
10) Complete 4-channel, 2U amplifier series
11) Maximum output power up to 4x1350W@8ohms
12) Refined SMD production technology
|
FP1000Q 4CH Professional Digital Powered Amplifier Audio |
|
ITEM |
FP10000Q |
|
Output Power |
20-20kHz, 1W with 1 KHz |
|
8Ω Stereo Power(RMS) |
1350WX4 |
|
4Ω Stereo Power(RMS) |
2100WX4 |
|
2Ω Stereo Power(RMS) |
2500WX4 |
|
8Ω Bridged Power(RMS) |
4200WX2 |
|
4Ω Bridged Power(RMS) |
5000WX2 |
|
Frequency Response(+o/-0.3dB, 1W/8Ω ) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
< 0.1% |
|
Signal-to-Noise Ratio |
> 112 Dba |
|
Channel separation (Crosstalk) at 1 kHz |
> 70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
short circuit, DC voltage, turn-on/off transient, current, inrush |
|
Operating voltage |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 Kohms |
|
Level adjustment (per ch. ) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W× H× D) |
483× 88× 396mm |
|
Packing dimension |
560× 180× 500mm |
|
Net weight(kg) |
13 |
|
Gross weight(kg) |
18 |
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.
With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.
We always keep and follow the principle to do business:
The same product, we win by the quality;
The same quality, we win by the price,
The same price, we win by the service.
We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.
Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
