| Prod Model: |
XY-9638 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mirror/Normal Iamge Switch: |
Support |
| 4 Camera Manual Control: |
Support |
| Power Supply: |
12V~24V DC |
| Power Output To Camera: |
Support |
| Video Output: |
2 Channel |
| Muti Split Mode: |
Support |
| Starting With Car: |
Support |
| Compression Format: |
MPEG |
| Interface: |
RCA |
| Operating System: |
No |
| Number Of Supported Hard Disk: |
No |
| Stream Type: |
No |
| Brand: |
OEM |
Product Description

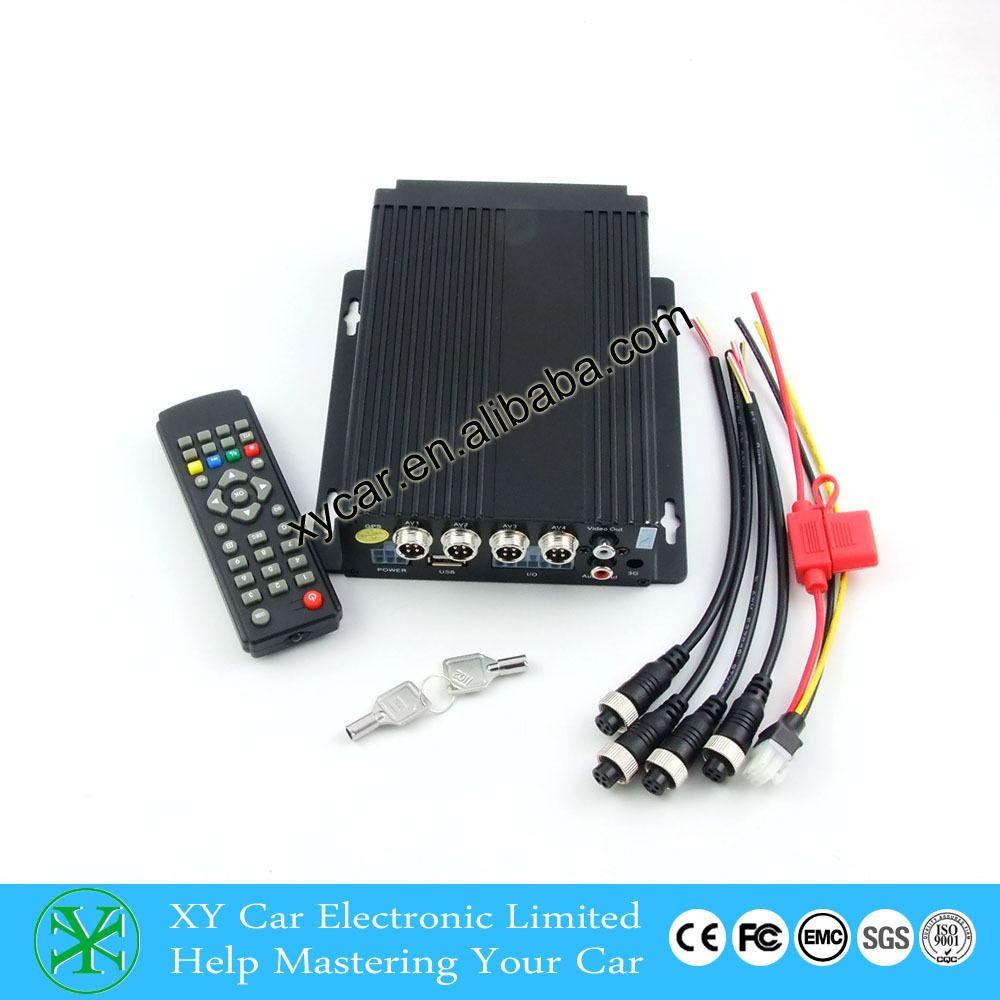

4 channel input special for 24V cart cameras control box ,blind spot assist 360 view camera system,with mirror switch for each camera,help parking and realtime monitoring
4 channels SD card automobile DVR recorder
D1 quality,real time recording,Advanced H.264 compression
Power input:12V~24V DC
Power output: 12V DC,Max current output:1A
Video input: 4channel/2channel/1channel,1.0Vp-p,75Ω,BNC
Video output 1channel,1.0Vp-p,75Ω,CVBS / LCD
TV system PAL/NTSC,
Audio input: 2channel(Stereo),line in,50~4000mv,50Hz~3500Hz
Audio output: 1channel
Compression: Advanced H.264(main profile)
Recording quality: Full D1/CIF
Max resolutions: PAL:720×576,NTSC:720×480
Frame rate: PAL:25/12/8/6/5/4/3/2/1 f/s, NTSC:30/15/10/7/6/5/4/2/1 f/s
Data rate: 1.0/1.5/2.0 MBps
Memery: SD card
Alarm in: 4 route
Alarm out: 2 route
Dimensions: 180mm(L)×180mm(W)×42mm(H)
Power consumption: 10W
Weight: 0.8Kg
Working temperature:0ºC~+50ºC,Humidity:<90%
1) 4-camera input terminals, camera 1 for rear view camera, camera 2, 3, 4 for front/side/inside camera view (or anywhere you like), car DVR recorder or VCD/DVD
2) automatically switch to the rear view camera (image) when put your car in reverse
3) each camera has a control trigger wire, automatically showing the image of the triggered camera. When some cameras are triggered, the image priority is cam1> Cam2> Cam3> Cam4 support left/right steering turning swtich to trigger left/right camera.
4) manual select showing each camera in single image or 4 camera in quad image.
5) power supply: 12 ~ 24V DC
6) power consumption: Less than 5W, power output: Less than 15W.
7) dimensions: 150 (l) x 120 (w) x 35 (d) mm
8) weight: 600g
9) TV input and output system: NTSC/PAL
10) with mirror switch for each camera
11) with 12V DC power supply for each camera.
Packing list:
Control box * 1PCS
Power cable * 1PCS
Trigger cable*1PCS
Control panel*1PCS
Video adapt wire * 5PCS
4 camera automatically trigger | support |
| 1/2/3/4 camera image display | support |
| Camera Manual control | support |
We are the professional car camera system supplier with 9 years car camera system experience, and offered excellent OEM ODM service to world wide well know famous brands.
Please send your details request for cameras (image sensor model,lens angle,mirror/normal image,with moving parking guide lines,with 180/360 degree bird view recording,with/without parking line,connector type,wire length,with DVR, with dynamic moving parking line,with distance sensor,Front/Rear Speically OEM stype camera...) and we could offer the best solutions.
With strict material and producing quality control,we offer 1 year warranty
and less than 0.3% faulty rate production to our customers.
NEWEST LED Night Vision mini size auto reverse car rear view camera
car camera with reverse guide line (with high resolution low lux sensor,wide view lense)
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note:We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof,shockproof,temperature resistance,
humidity resistance,high definition.
competitive advantage
1.Stable quality (CE FCC ROHS)
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:16months
7.OEM,ODM welcome
