| Prod Model: |
FP10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal-to-Noise Ratio: |
>70db |
| Dimension(Wxhxd): |
483X88X396mm |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Type: |
Switch Amplifier |
| Conductive Mode: |
Td Class |
Product Description

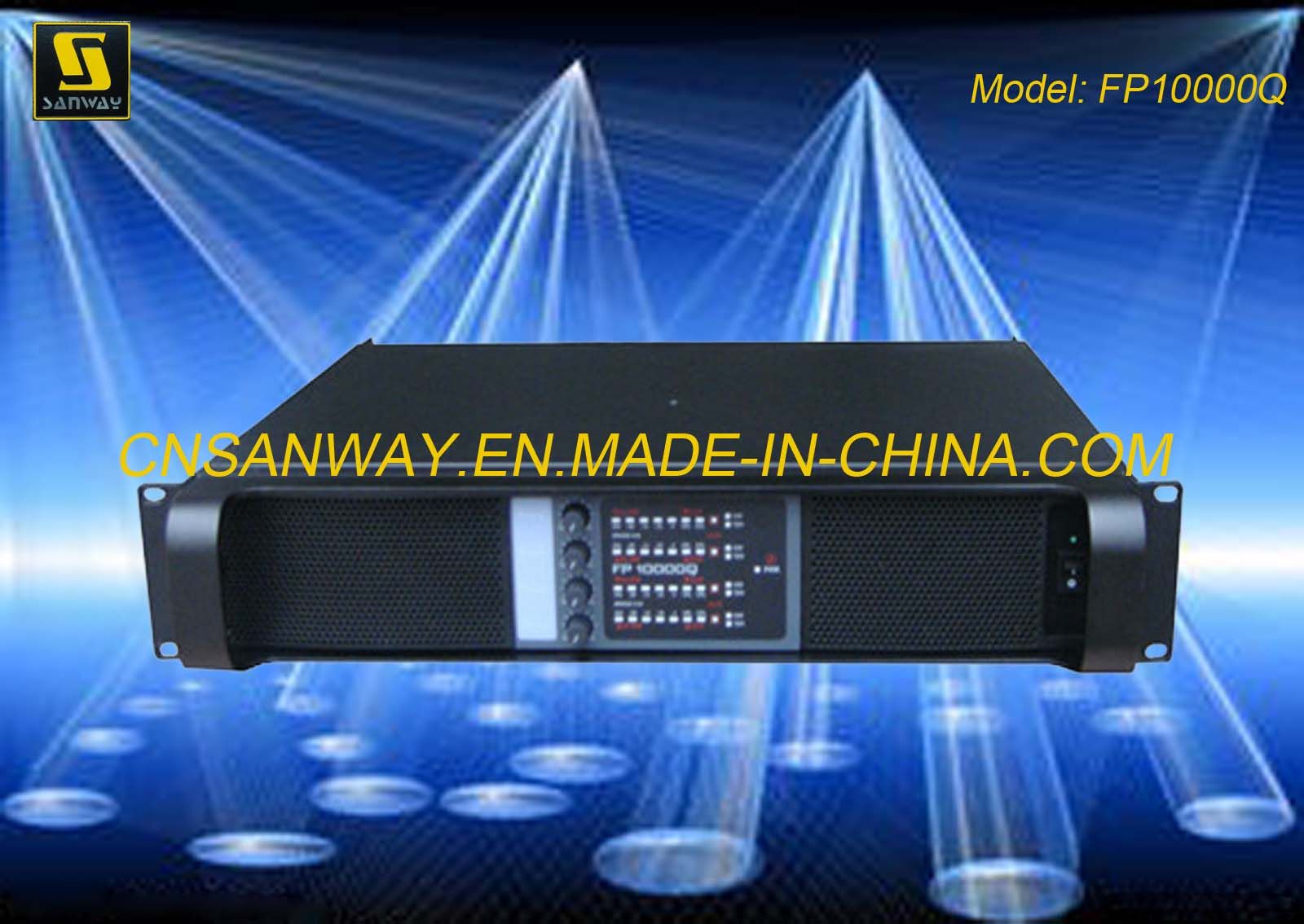

4 Channel Audio Power Amplifier FP10000Q
1.4x2100w@4ohms Professional Switch Mode Amplifier
2. Class TD High Powered Digital Amplifier
3. Iput Impedance 20 Kohms Audio Amplfiier Equipment
4. Provide OEM Sevices
| Professional Power Amplifier--FP10000Q |
| ITEM | FP10000Q |
| Output Power | 20-34kHz, 1W with 1 KHz |
| 8ΩStereo Power(RMS) | 1350WX4 |
| 4ΩStereo Power(RMS) | 2100WX4 |
| 2ΩStereo Power(RMS) | 2500WX4 |
| 8ΩBridged Power(RMS) | 4200WX2 |
| 4ΩBridged Power(RMS) | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| Class | TD |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| TourClass Protection | short circuit, DC voltage, turn-on/off transient, current inrush |
| Operating voltage | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 Kohms |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Net weight(kg) | 13 |
| Gross weight(kg) | 18 |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
