| Prod Model: |
FP10000Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Low Impedance: |
2.67 Ohms Load Stable |
| Two Version: |
110V or 220V Are Avaliable |
| Heatsink: |
Pure Copper |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
Td |
Product Description
Description
This series of amplifiers are perfect protection circuit, it can adapt to poor working environment, and can easily maintain stability. Perfect temperature protection circuit to solve the fatal damage caused by overheating.
Staff-circuit protection, it can ensure the engineering staff in the misuse or other unexpected circumstances to protect the safety of the machine itself and the speaker. When the power amplifier overload occurs, adjust the power amplifier circuit operating condition, keep the power amplifier distortion mode of operation, thereby protecting speakers.
Quick Detail :

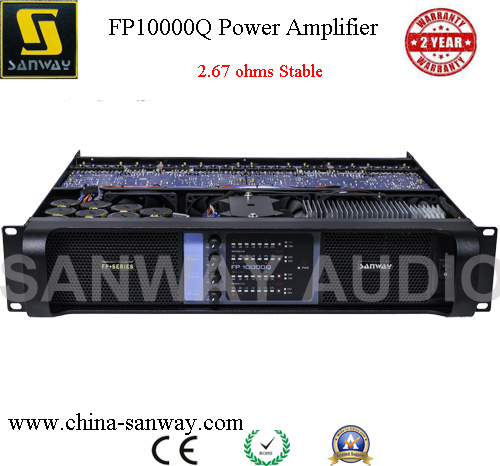

1. 4x2500w@2ohm Audio Power Amplifier
2. Lightweight Switching Power Amplifier
3. Best FP10000Q High Power Amplifier China Supplier
4 . 4 channel class TD switching power amplifier
ITEM | FP10000Q |
Output Power | 20-20kHz, 1W with 1 KHz |
8 ohms Stereo Power(RMS) | 1350WX4 |
4 ohms Stereo Power(RMS) | 2100WX4 |
2 ohms Stereo Power(RMS) | 2500WX4 |
8 ohms Bridged Power(RMS) | 4200WX2 |
4 ohms Bridged Power(RMS) | 5000WX2 |
Frequency Response(+o/-0.3dB, 1W/8ohms) | 20 Hz - 34 kHz |
THD 20 Hz - 20 kHz for 1 W | <0.1% |
Signal-to-Noise Ratio | >112 Dba |
Channel separation (Crosstalk) at 1 kHz | >70 dB |
Input Connectors (per channel) | 3-pin XLR, electronically balanced |
Output Connectors (per channel) | Binding Posts 2-pole |
Class | TD |
Specification :
Channel separation (Crosstalk) at 1 kHz | >70 dB |
Input Connectors (per channel) | 3-pin XLR, electronically balanced |
Output Connectors (per channel) | Binding Posts 2-pole |
TourClass Protection | short circuit, DC voltage, turn-on/off transient, current inrush |
Operating voltage | 130-265 V / 65-135 V selectable |
Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
Input impedance | 20 Kohms |
Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
Net weight(kg) | 13 |
Gross weight(kg) | 18 |
Dimensions (W×H×D) | 483×88×396mm |
Packing dimension | 580×180×560mm |
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.
With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.
We always keep and follow the principle to do business:
The same product, we win by the quality;
The same quality, we win by the price,
The same price, we win by the service.
We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.
Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
