4 Bodies Mortuary Refrigerator (MINA-HH05C)

Prod Model:	MINA-HH05C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sample:	Available
OEM:	Available
Certificate:	CE;FDA;ISO 9001
Factory Location:	2.5 Hours Drive From Shanghai
Export Markets:	Global
Volume:	4 Corpses
Size:	2520*1580*1210mm
Warranty:	12months
Brand:	Mina
Metal Type:	Stainless Steel
Material:	Stainless Steel
Type:	Corpse Transport Capsule

Product Description

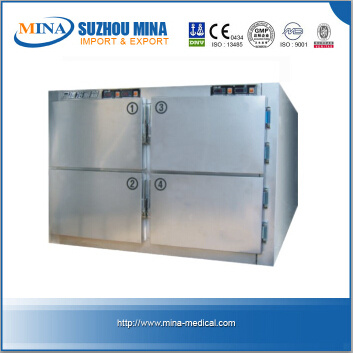

4 bodies Mortuary Refrigerator (MINA-HH05C)

The corpse cold storage and freezing box /corpse cabinet is a series of product for hospital, funeral parlor, and postmortem examination department to store the corpse.
1. Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with original binding can maintain the temperature constancy in the box at 3± 2º C precisely. The temperature set-value can be adjusted at -18º C~5º C, and the temperature display precision is 0.1º C, the resolution is 0.1º C and the adjusting increment is 0.1º C. The value is to be displayed through three-digital high-brightness figure.
The system has special high-resolution temperature calibrating function. That means the set-value figure can be displayed and calibrated at -10.0~10.0º C. The calibrating increment is 0.1º C.
The forced cold-air circulation system with intelligence-control fan can ensure the temperature uniformity inside the box.
2.24-hours tracing, recording and printing system(Optional)
The imported temperature recording and printing system. There are four precise temperature sensors (two sensors for some systems) inside the box and two temperature indicators outside the box, which are to display the temperature of upper and lower point, for users to supervise the temperature at each operating states in the box. The display precision--resolution is 0.1º C.
The distinguished power-off memory function can hold and store huge temperature data and information permanently.
The temperature printing has password protection function, which can prevent illegally printing of the temperature fluctuation information.
5-ways alarm system: Including 2 sound alarm devices with 220V power supply, 2 light alarm devices with 220V power supply and one remote signal alarm apparatus (optional), consisting the super complementary supervision system.
The data management software is available for one or more temperature signals changes
Communicate with PC through RS-232 interface to examine the temperature curve diagnosis diagram of one or more refrigerators and display the data sheet. The data and images can be stored, inquired and printed(Optional)
3. Safe control system
Keyboard lock, password protection function, and method against missing-adjustment of the operating parameter
7 system failure alarms (high temperature alarm, low temperature alarm, sensors failure alarm, door-opening alarm, electricity failure alarm, low back-up battery alarm, low voltage alarm)
Code display of the failure position (some machines have all these seven alarms)
Three alarm ways (buzzer alarm, flashing alarm, remote signal alarm)

Optional items:
The EPS emergency supply is adoptable;
The DC24V-AC220V inverter is adoptable, and the DC24V power supply can keep the refrigerator under normal operation.
4. Refrigeration system
Import and adopt the original binding Germany DANFOSS high-performance compressor;
Import and adopt the original binding "Bi-Sonic" double fan strongly against the low temperature and moisture;
Germany "EBM" heat elimination fan;
Fluoride-free refrigeration system for environmental protection to make green products and create green world.
4. Humanization design
The interior and exterior shell of the refrigerator are made of high-quality stainless steel with high corrosion resistance and beautiful and luxury appearance.
The insulating layer is made of imported polyurethane foam materials with high thermal retardation against cold loss.
Adopt the high-quality gel strip for door gasket with strong ageing resistance ability, which can lengthen the service life of the door gasket.
.
The safe lock design can prevent missing-opening.
Wide voltage band is available for 187-242V voltage.
