| Prod Model: |
SAT043T0H001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
<5 Inches |
| Screen Type: |
Resistive |
Product Description

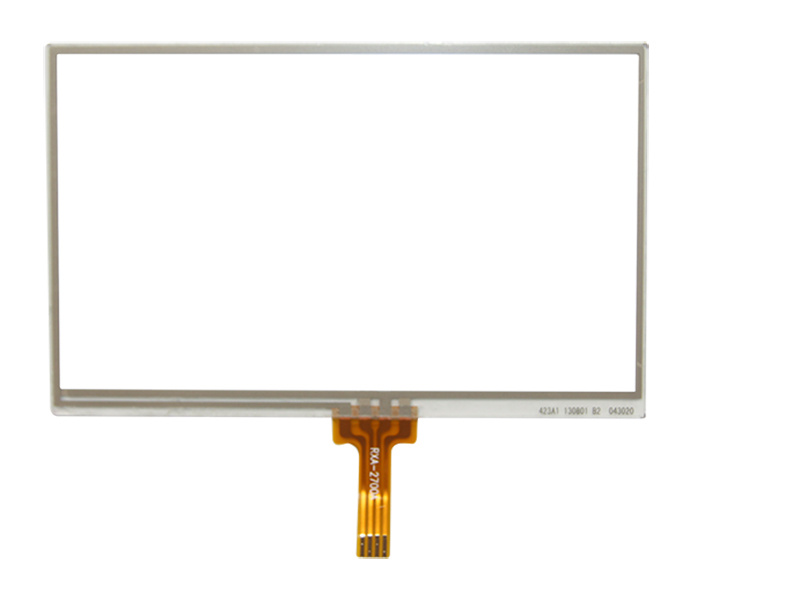

4.3inch Resistive Touch Screen:SAT043T0H001
Working voltage: DC5V
Operation pressure:50-120g
Linearity: ≤1.5%
Insulation resistance: ≥20 M Ω ' 25V(DC)
Transmission rate: ≥78%
Type of structure: ITO film/ITO glass
Wiring method: Flat cable
Dimension: 104.7*64.9*1.1mm
Length of FPC: 23mm
ITO film: Scratch coating
Working life: ≥ 1000000 times
Corresponding time: ≤ 20ms
Working environment: -10 degree~60 degree 20%~90% RH
Storage environment: -20 degree~70 degree 20%~90% RH
SAT Group is tightly combined by four branches with the name of Shenzhen SAT Electronics Co., Ltd(SAT), Dongguan Zhaoxian Electronic Technology Co., Ltd, , Shenzhen MeX Technology-Development Co., Ltd(MeX) and SAT International Co, . Ltd, which is focusing on designing, manufacturing and selling of small-medium size LCD PANEL(LCM), TFT MODULE and TOUCH PANEL products, including 3.5" to 10.1" series and can provide all varieties of products to be purchased in one station for Security Industry, Tablet PC, Industrial Control equipment, Medical devices and etc.
We have around 700 employees and own around 10000m2 manufacturing workshop (including 3000m2 dust-free workshop). Also we have 12 sets high-speed SMT machines 22 sets of automatically Polaroid attaching machines, 4PCS automatically production lines for COG-FOG, 3PCS semi-automatically production lines for COG-FOG, 1PC automatically film sticking machine for back-light, 4PCS lead-free soldering production lines and more than 20sets products assembling lines. Every month we can produce 1500Kpcs LCM, 350Kpcs TFT Module and 1500Kpcs LED back-light with powerful production capacity.
SAT Group was established in 2003. With 10 years accumulation, we have been developed to be a completed equipped, well managed and foundation solid group company, which is now a leading manufacturer in security business on color LCM, color TFT LCD Module. Except for domestic market, our products also have been sold to The Middle East, European, North America and South America markets.
In 2013, SAT Group successfully held hands with DMY Group Turkey, and gave full play of China's domestic manufacturing and DMY Group capital advantage, achieved a win-win partnership which made SAT Group became a China Turkey joint venture company and brought a more wide space for SAT's future. Under the new company structure, SAT will achieve greater development from a national brand to a multinational brand and from domestic market to international market.
"Credit and Quality" is our foundation. "Tomorrow will be better" is our solid belief. We will keep our strategy of good quality, fast speed and low price to expand our market, and keep using always 1st class technology, quality and service to satisfy customer requirements. We expect to cooperate with you.
Your trust is our hope in the future.
