| Prod Model: |
TM0902B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
4.3" TFT, Negative, Transmissive |
| Dots Matrix: |
480X(RGB)X272 (TFT) |
| Outline Dimension(mm): |
125.6*73.8*11 |
| A.a.(mm): |
95.04*53.86 |
| Driver IC: |
SSD1963 |
| Resolution(Dots): |
480X(RGB)X272 (TFT) |
| Operating Temperature(°c): |
-20-70 |
| Storage Temperature(°c): |
-30-80 |
| Screen Size: |
≤17" |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
4:3 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1024x768 |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
3ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
Product Description
Packaging & Delivery
Packaging Details: | Packaging Details: Strictly tested and well-packed with Anti-static bag + Foam box + Export Carton |
|---|
| Delivery Detail: | 4-5 weeks |
|---|
| Item | Specification |

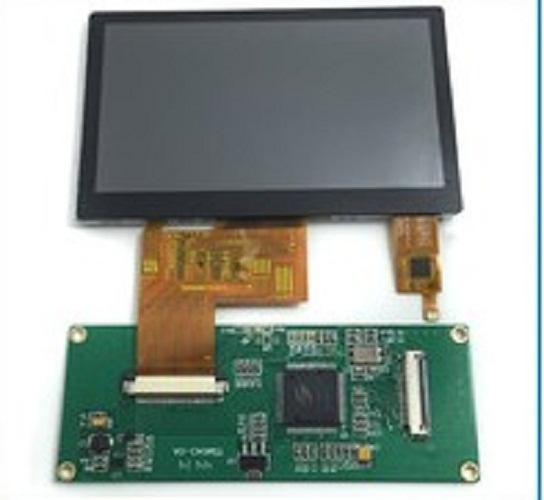

| LCD type | 4.3" TFT, Negative, transmissive |
| Display type | Negative, transmissive |
| Dots Matrix | 480x(RGB)X272 (TFT) |
| Outline Dimension(mm) | 125.6*73.8*11 |
| A.A.(mm) | 95.04*53.86 |
| Driver IC | SSD1963 |
| Resolution(dots) | 480x(RGB)X272 (TFT) |
| Certificate | RHOS, REACH, ISO9001:2008 |
| Viewing Direction | 12H |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Number of Pixel(pixels) | 480x(RGB)X272 |
| Pixel Pitch | 0.066(W)x0.198(H) |
| Gray scale invertion direction | 6 O'clock |
| Backlight type | LED, Normally white |
| Backlight | LED, Normally white(2X5 LEDs) |
| TP | with RTP (Resistive Touch Panel) ) |
