| Prod Model: |
PS043DWCM0107-V02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4.3 Inches |
| Resolution: |
480(RGB)X272 |
| Brightness: |
450CD/M2 |
| Interface: |
RGB |
| Contrast Ratio: |
500 |
| Pin Number: |
40 Pins |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

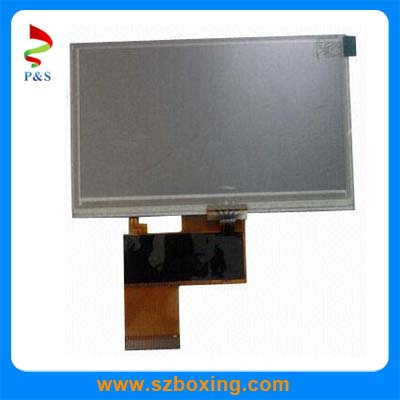

4.3" TFT LCD display with 450cd/m2 high brighness and RGB interface
1. Machnical Specification
2. Application area
3. Product processing
4. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping : Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
|
Item |
System |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Voltage for LED Backlight |
VL |
25.2 |
27.9 |
31.5 |
V |
|
|
Current for LED Backlight |
IL |
18 |
20 |
22 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
-0.5 |
3.3 |
5 |
V |
– |
|
Operating temperature |
TOPR |
-10 |
– |
60 |
degree |
– |
|
Storage temperature |
TSTG |
-20 |
– |
70 |
degree |
– |
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
θT |
Φ=90° |
40 |
50 |
– |
|
θB |
Φ=270° |
60 |
70 |
– |
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
10 |
20 |
msec |
|
TOFF |
– |
15 |
30 |
msec |
|
Contrast ratio |
CR |
400 |
500 |
– |
– |
|
Color Chromaticity |
WX |
0.26 |
0.31 |
0.36 |
– |
|
WY |
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
– |
450 |
– |
cd/m2 |
|
Luminance uniformity |
YU |
70 |
75 |
– |
% |
