| Prod Model: |
BDSC-U-AFAM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
1/2/3 Meter or 3/6/9 Ft |
| Outer Diameter: |
4.0mm |
| USB Type: |
USB Am-Af |
| Jacket: |
PVC/PU/TPE |
| Shield: |
Braid and Al-Foil |
| Inner Cores: |
Pure Copper |
| Magnet Ring: |
Single or Dual, Can Be Optional |
| Material: |
Copper |
| Interface Type: |
USB |
| Pin: |
4Pin |
| Application: |
Power Bank, Car |
Product Description

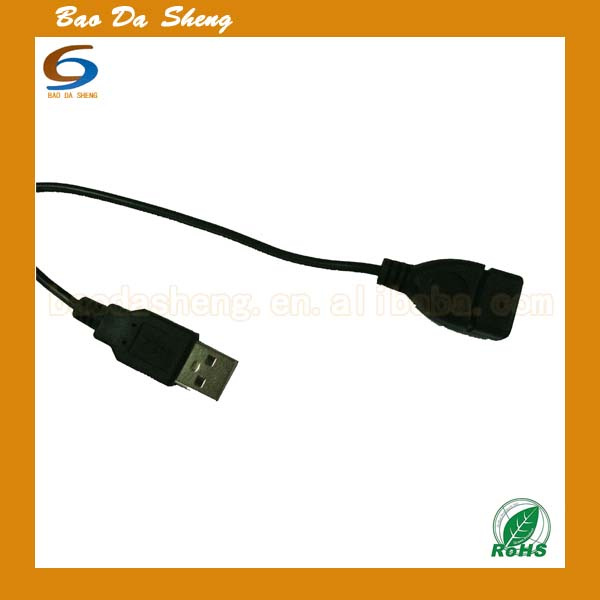

3m extension usb cable
1. USB cable, AM to AF
2. Gold/Nickel plated, HD PVC
3. Ideal for High Speed Component
4. CE, RoHS Certified
5. ODM/OEM Service
USB2.0 Extension Cable
SPECIFICATION
ConductorCCA, Bare Copper or Tinned Copper
InsulationHigh Quality PVC, Aluminum Foil, Mylar, Ferrite cores. (color optional)
Contact24K Gold Plated or Nickel plated (optional)
ConnectorMolded shell type (color optional)
Available length1m to 10m, optional
Available terminationA Male to A Female
Available gauge24/26/28/30AWG(optional) OD: 5.0/5.5mm
CertificationRoHS, CE
FEATURE
1. USB 2.0 cables are backwards compatible as they can carry a USB 1.0 and 1.1 signal. USB cables are used to connect devices such as digital cameras, digital video cameras, scanners, printers, web cams, mice, keyboards, joysticks, network connections, etc.
2. Gold-plated or Nickel-plated connector resists corrosion and ensures an optimum connection for maximum signal transfer.
3. The maximum length for a single USB cable is 15ft. To get more than 15 ft you will need to boost the signal with a repeater Cable or Hub.
4. Shielded under mold protects against unwanted EMI/RFI interference
ELECTRICAL
Quality Control100% test before shipping
VoltageDC300V 5M ohm/10ms
Insulation Resistance10MΩ Min
Contact Resistance2 ohm max
Working Temperature-25° C~80° C
PACKING
Usually poly bag and simply bulk packing. If you have any special requirements about the packing, please let us know. It can be customized.
