380V T3 Woking Condition Duct Type Air Conditioner
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
50/Set |
Pay Type: |
L/C,T/T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Eer: |
2.7 |
Type: |
Central Air Conditioners |
Capacity: |
27000-48000 BTU |
Usage: |
Room |
Indoor Machine Noise: |
>50dB |
Certification: |
MEPS |
China Energy Efficiency Standard: |
Level 1 |
Cooling/Heating: |
Cooling Only |
Power Source: |
Electrical |
Power Type: |
AC |
Condition: |
New |
Product Description

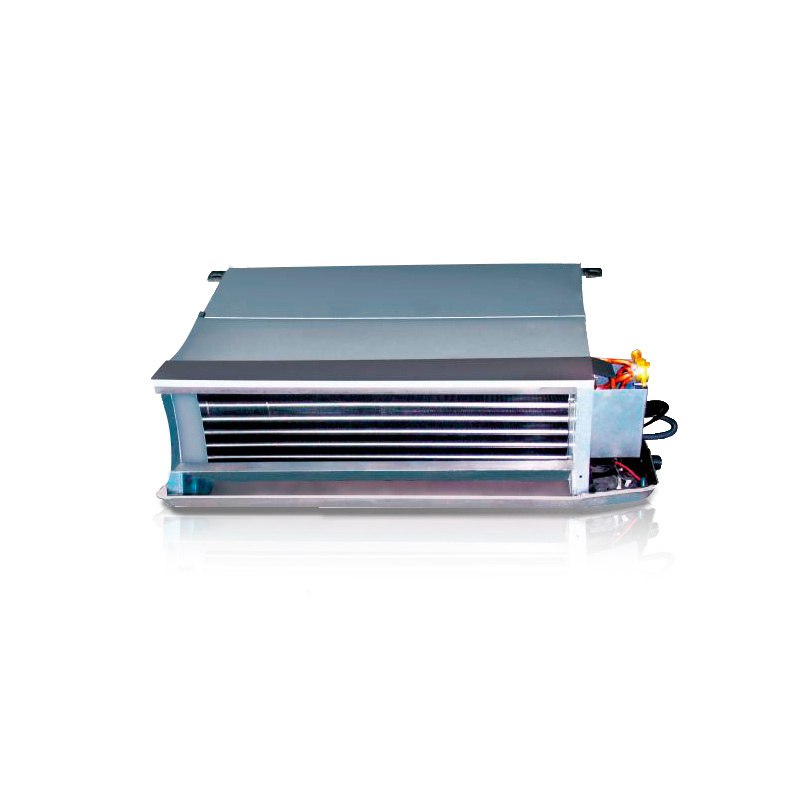

380V T3 woking condition Duct Type Air Conditioner
Feature
1. Cooling only
2. R22 refrigerant
3. Scroll Type compressor
4.308V, 3P, 50Hz
Specification
Indoor Unit |
Power supply | V-ph-Hz | 380~420-3-50 |
Cooling | Capacity | Btu/h | 36000 |
Input | W | 3889 |
EER | W/W | 2.7 |
Heating | Capacity | Btu/h | / |
Input | W | / |
COP | W/W | / |
Indoor air flow (Hi/Med/Lo) (No duct) | m 3 /h | 2270/1890/1650 |
Indoor external static pressure (Hi) | Pa | 80 |
Indoor unit | Dimension (WxDxH) | mm | 1140x775x270 |
Packing(WxDxH) | mm | 1355x795x350 |
Net/Gross weight | kg | 42/46 |
Design pressure | MPa | 2.94/1.0 |
Drainage water pipe diameter | mm | ODΦ25 |
Refrigerant piping | Liquid side/ Gas side | mm | Φ9.52/Φ19(3/8"/3/4") |
Controller |
| KJR-10B/DP(T)-E |
Operation temperature | Cooling | °C | 17~32 |
Heating | °C | / |
Outdoor unit |
Power supply | V-ph-Hz | 380~420-3-50 |
Max. input consumption | W | 5800 |
Max. input current | A | 10 |
Compressor | Model |
| C-SB303H8A |
Type |
| Scroll |
Brand |
| Sanyo |
Outdoor air flow | m 3 /h | 4800 |
Outdoor noise level (sound pressure) | dB(A) | 58 |
Throttle type |
| / |
Outdoor unit | Dimension(WxDxH) | mm | 895x313x862 |
Packing(WxDxH) | mm | 1043x395x915 |
Net/Gross weight | kg | 79/84 |
Refrigerant type/Quantity | Type |
| R22 |
Charged volume | kg | 2 |
Design pressure | MPa | 2.94/1.0 |
Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9.52/Φ19(3/8"/3/4") |
Max. pipe length | m | 30(Outdoor unit down) |
30(Outdoor unit up) |
Max. difference in level | m | 20(Outdoor unit down) |
25(Outdoor unit up) |
Ambient temperature | Cooling | °C | 18~52 |
Heating | °C | / |
