| Prod Model: |
SHM-1000mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Blade Zinkness: |
1.2mm |
| Shutter Zinkness: |
Middle 1.5mm.Others 0.8mm |
| Galvanized Zinkeness: |
275G/M2 |
| Certification: |
CE |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Blade Material: |
Stainless Steel |
| Material: |
Galvanized Sheet |
Product Description

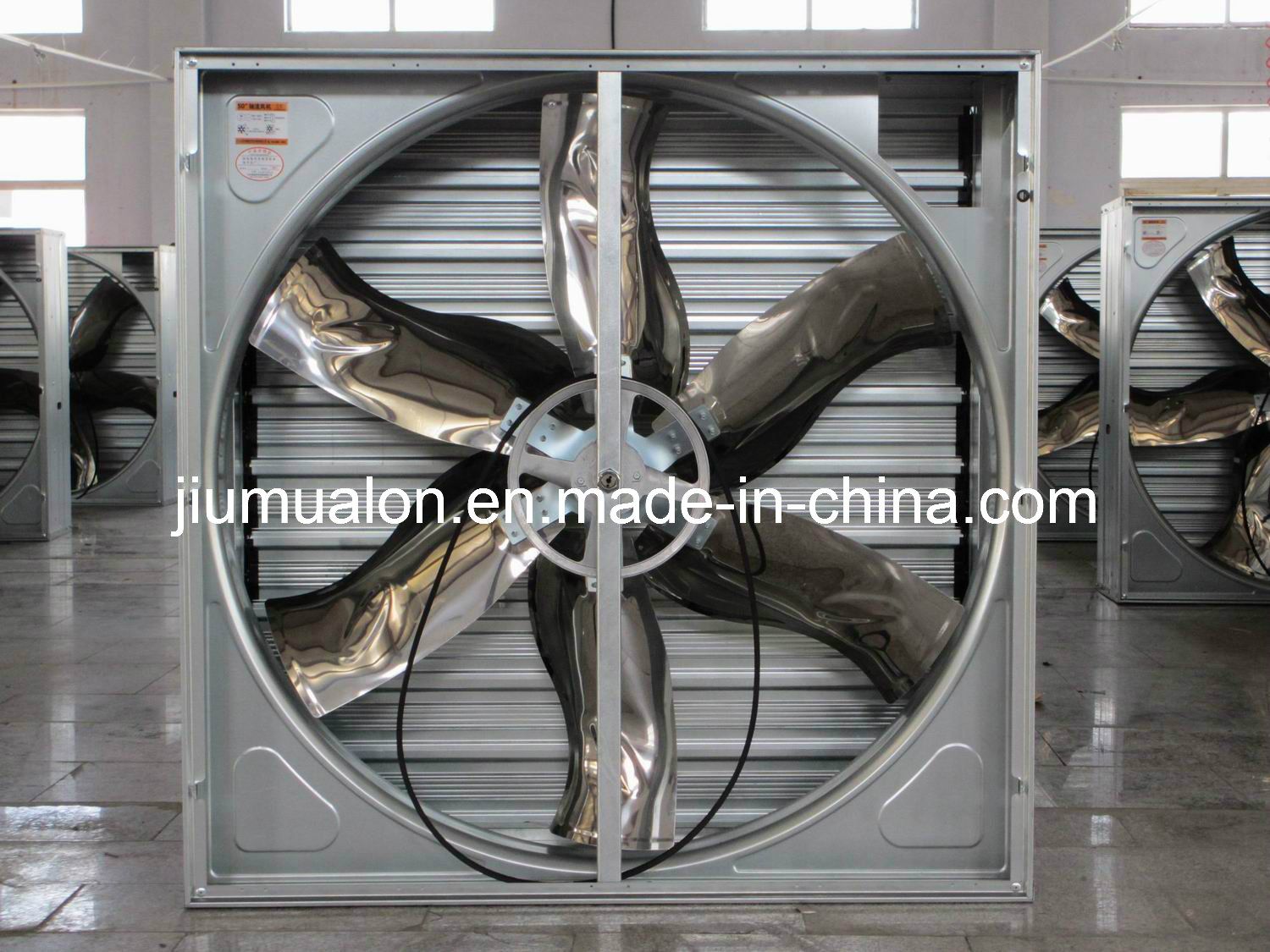

Spec: 1000mm*1000mm*450mm/exhaust fan/poultry equipment/ventilation fan
Frame: Hot galvanized sheet frame, sheet thickness is 0.8mm, it is anti-corrosive and durable, zink thickness is 275G/M^2
Blade: Six pieces German-imported mirror surface stainless steel blades, which can avoid dust accumulation, blade diameter is 910mm, blade RPM is 566r/min, it will go through dynamic balance test after assembled, which can assure steady running and even airflow, the air volume is consisitent in all service life of fan
Shutter: 8pieces hot strength galvanized sheet, installed with centrifugal system opening and spring close system, shutter can be opened at 90 degree, the middle shutter thickness is 1.5mm, others are 0.8mm
Motor: Chinese motor, other motor accordingly, motor technical data is 0.4kw 380V 50Hz with three phase, motor's RPM is 1440r/min
Belt: Japan imported belt, used for a long time without deformation
Housing: It is galvanized, firmand durable
Airflow: 20800m^3/h
Noise is less than 64dB
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation
