| Prod Model: |
YB320240ZE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Character Dots: |
320*240 |
| Working Voltage: |
5V/3.3V |
| Lnterface Type: |
Serial/Parallel Port |
| Color: |
Blue, Yellow, Green, Gray |
| IC: |
Ra8803 |
| Contrast: |
Adjustable |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description
China guangdong, shenzhen alex electronics co., LTD is a professional engaged in liquid crystal display (LCD) and liquid crystal display module (LCM) development design, production and sales of high-tech production-oriented enterprises.
Products cover the TN, HTN, the STN, FSTN, TFT LCD series products, including COB, TAB, COG, etc. Series of liquid crystal display module.The main products are: character lattice, the graph lattice, character and period of code standard or non-standard modules, and can customize according to the requirements of your company processing all kinds of liquid crystal display module.Products can be widely applied to the temperature and humidity meter, electronic scale, multimeter, smart meter, water meter, gas meter;The bank paper, electronic safes, cash register, stock machine, telephone, walkie-talkie;Massager, treadmill, fat instrument;Air conditioning, microwave ovens, remote control;Learning machine, electronic dictionary, calculator;Nc tanker, industrial control;Game consoles, perpetual calendar, watches, instruments and meters, finance, communications, health care instrument and with the domestic and foreign many well-known manufacturers to establish a long-term good cooperative partnership.
The company has the first-class high quality talent team of science and technology and scientific management mode and perfect pre-sale and after-sale service system.Technology development ability;Development cycle is short, fast respond to customer feedback.Companies with advanced technology advantage, strong human resource base, in the fierce competition keep advantage. Good reputation has won the broad masses of users groups.
"Quality first, strives for perfection," take honestly as industry, sincere cooperation "!
The company in a professional design, development, customization, processing!Now emphatically recommended products: TFT1.5 inch LCD display advantage supply
| 320240ZE |
|
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB320240ZE |

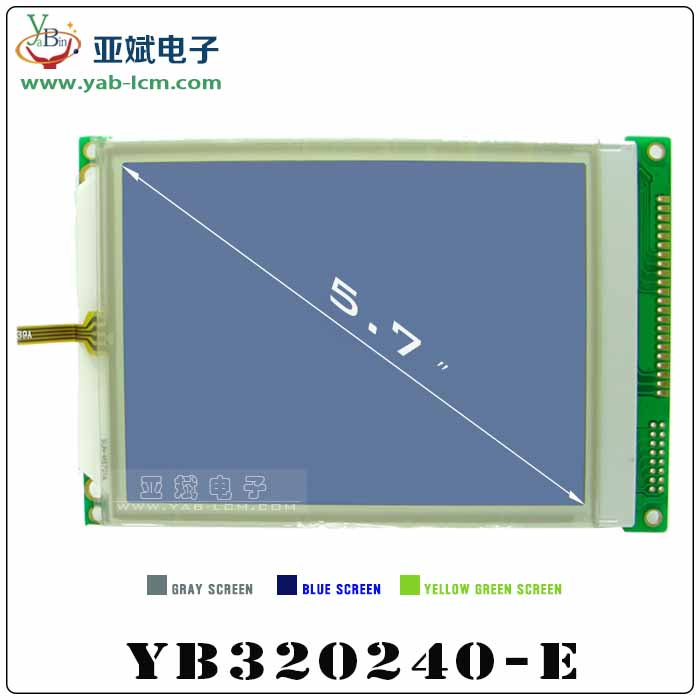

| Display Format | 320*240 Dots |
| Outline Dimension | 160.0*109.0*11.0mm |
| Visual Area | 122.0*92.0mm |
| Active Area | 115.17*86.37mm |
| Diagonal Size | 5.7inch |
| Dot (Pixel) Size | 0.33*0.33mm |
| Dot (Pixel) Pitch | 0.36*0.36mm |
| IC Package | SMT |
| IC or Equivalent | RA8803/RA8806 or EQV |
| Interface | 6800 8-bit/8080 8-bit Parallel |
| Display Type | STN/FSTN |
| Touch Panel Optional | Yes |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Gray |
| Appearance | White on Blue/White on Gray /White on back |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 120mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
| The interface definition |
| ITEM(J1) | SYMBOL | LEVEL | FUNCTION |
| 1 | VSS | OV | Power Ground |
| 2 | VDD | 5.0V | Power Supply For Logic |
| 3 | VO | - | Contrast Adjust |
| 4 | RS | H/L | H: Data L: Command |
| 5 | /WR* | L | Write Signal for 8080 family interface |
| 6 | /RD* | L | Read Signal for 8080 family interface |
| 7 | /CS1 | L | Chip enable signal
When/CS1=0,CS2=A,RA8803 is selected |
| 8 | CS2 | H |
| 9 | BUSY | H/L | Busy signal |
| 10 | INT | H/L | Interrupt signal |
| 11 | /RESET | L | Reset Signal |
| 12-19 | DB0-DB7 | H/L | Data Bus |
| 20 | VEE | - | Negative Power output For LCD Driving |
| 21 | LEDA | 5.0V | LED Backlight Anode |
| 22 | LEDK | 0V | LED Backlight Cathode |
