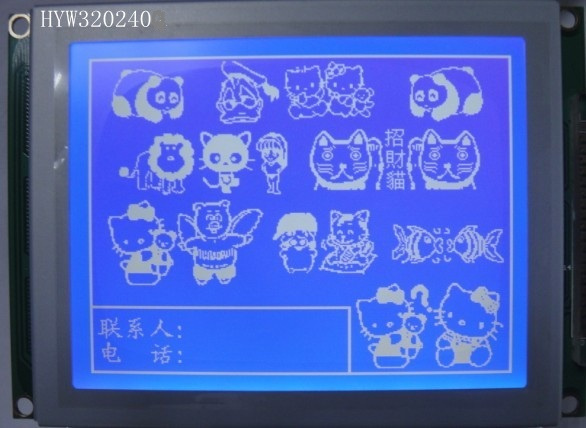

320240 LCD Display Screen with Character and Touch
| Price: |
US $ 68.26-76.19/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HYW320240E/H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lcd''s Color: |
Blue Yello-Green Black with White |
| Back Light: |
LED |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Touch Screen Type: |
Resistive |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| Type: |
Graphic |
| Display Technology: |
SMT |
| Usage: |
Monitor LCM |
| Response Time: |
3ms |
| Customized: |
Non-Customized |
| Viewing Angle: |
Stn |
Product Description
320240 Dot module
Module size: 160.0*109.0*12
View area: 122.0*92.0
Nember of dot: 320*240
Dot pitch: 0.36*0.36
Dot size: 0.33*0.33
Controller: RA8806
Operating temperature: -20 to 70
Storage temperature: -30 to 80
Working volt: 3V TO 5V
|
Pin |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
|
Symbol |
VSS |
VDD |
VO |
RS |
WR |
RD |
CS1 |
CS2 |
BUSY |
INT |
RST |
DB0 |
DB1 |
DB2 |
DB3 |
DB4 |
DB5 |
DB6 |
DB7 |
VEE |
BLA |
BLK |
The company was founded in 2009 October, is a collection research and development, production, sales of liquid crystal watches as one of professional manufacturers, "OYATON" brand registered trademarks, products through the 3C certification, all products are in strict accordance with the ISO9001: 2008 international quality system for production, ensure the high quality and stability of product. We have different customized complete liquid crystal display plan ability.
The core of the company is in a liquid crystal display work for many years in the field, belonging to the International Association of registered engineer. Our team is concentrated on the study of liquid crystal display application of new technologies, to participate in Electronic Association Training and experience as the sustainable development of the backing, related enterprises at home and abroad has carried out extensive cooperation in product design, reliable, stable product quality, timely delivery to win market recognition.
We do a simple description of our products are three major advantages:
A, short delivery cycle: Universal standard products of stock for a long time, place an order can deliver finished products, no spot, complete production and testing process in 6 working days of receipt of order within the client, in 10 working days of receipt of the goods to ensure. If there is a delay (in addition to natural disasters and special reasons), my company will be cash compensation to customers or to refund the payment mode, enabling customers to order products in our company, no worries!
Two, product quality excellent: Because our company produced products are mainly used for industrial testing instruments and medical equipment, instrumentation, so the quality of commitment made on different areas of our products is different. The industrial test field, our commitment to product quality qualified rate is 98.8%. In the field of medical instrument, our commitment to product the factory pass rate of more than 99%. Such as outside this range (artificial damage except), can be compensation for the loss according to the terms and conditions of the contract agreed to compensation.
Three, price concessions: The field relates to the customer demand for products and their different, our demand for different customers make no exception. Whether you buy a product, buy 1000 product, our price be consistent from beginning to end. At the same time, our products will not fluctuate because of price fluctuation market of electronic parts and electronic components. When the first transaction is completed, your future order price is so. Truly benefit customers, win-win cooperation.
